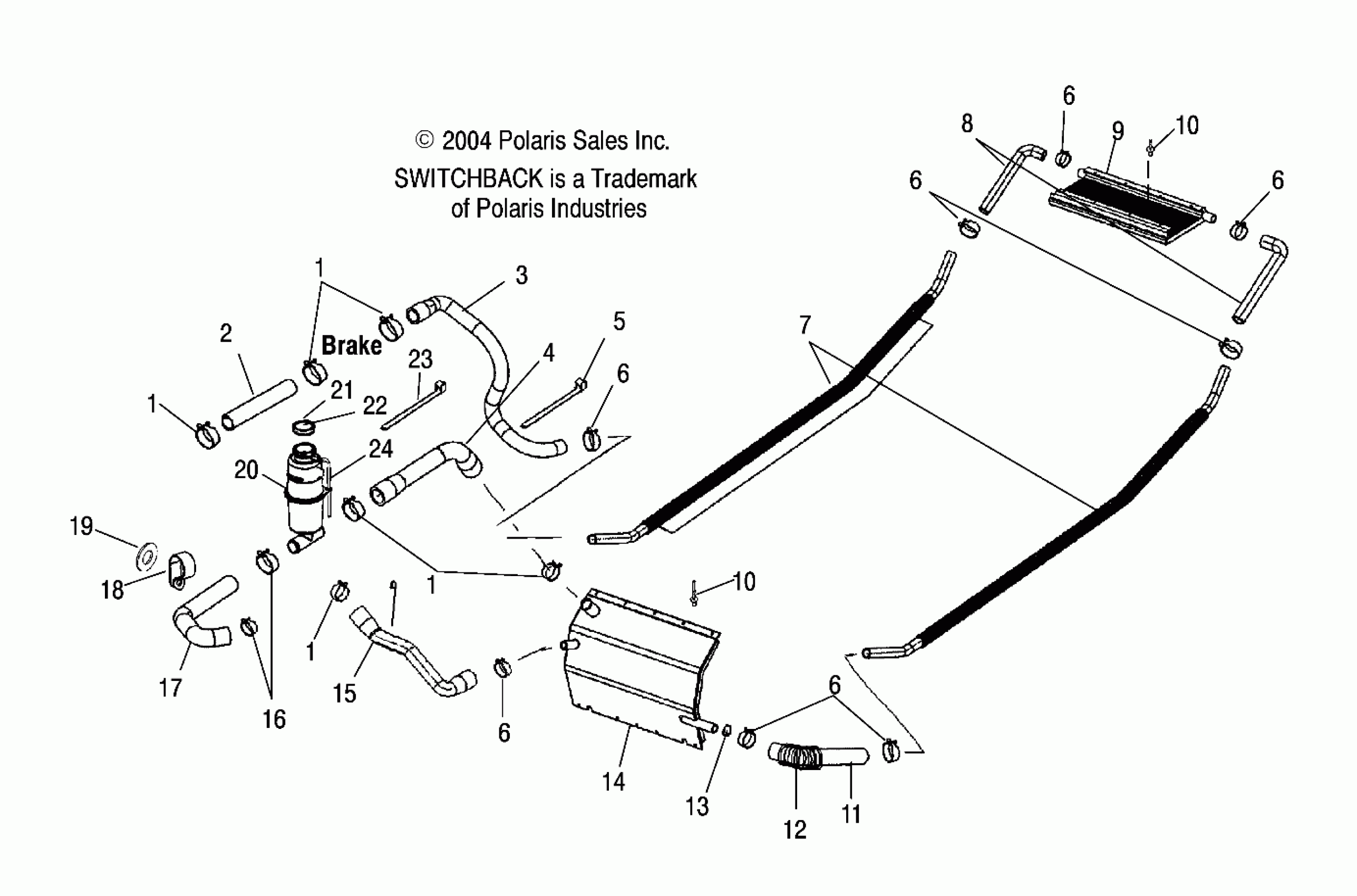

Polaris 600/800 SWITCHBACK F/O - S05NS6ES COOLING SYSTEM - S05NS6ES/ESA/S05NS8CS/CSA (4992809280B03) Diagram

#

Description
Price

1

CLAMP, SPRINGBAND

7080844

$10.39

1

CLAMP, SPRINGBAND

7080844

$10.39

1

CLAMP, SPRINGBAND

7080844

$10.39

1

CLAMP, SPRINGBAND

7080844

$10.39

2

Hose, Bypass/Brake Cooler [600]

5412432

Unavailable

2

Hose, Engine Out/Brake Cooler [800]

5412244

Unavailable

3

Hose, Gripper/Brake Cooler

5412351

Unavailable

4

Hose, Center Out Bottle In [600]

5412433

Unavailable

4

Hose, Center Out/Bottle In [800]

5412341

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

6

CLAMP, SPRINGBAND

7080841

$7.19

7

Gripper/De-Icer, LH

1240104

$309.99

7

Gripper/De-Icer, RH

1240105

Unavailable

8

Hose, Gripper/Rear Closeoff

5412205

Unavailable

9

Exchanger, Closeoff, Rear

1240150

Unavailable

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Hose, Gripper/Center Cooler

5412083

Unavailable

12

Tubing, Convoluted

5521602

Unavailable

13

SPACER-RUBBER

5810291

$3.99

14

Cooler, Bulkhead

2520292

Unavailable

15

Hose, Front Cooler/Engine Out

5412236

$44.51

16

CLAMP-HOSE, 1.750-SS

7080560

$11.19

17

Hose, Pump/Bottle [800]

5412160

$48.56

17

Hose, Bottle to Engine [600]

5412237

Unavailable

18

Clamp, Hose [800]

7080951

$13.19

18

Clamp, Hose [600]

7080908

$8.99

19

Washer, Flat [600]

7555859

$1.49

20

Bottle, Coolant

2520312

$48.56

21

Cap, Pressure

2511270

$24.27

22

DECAL, WATER BOTTLE CAP

7170063

$4.03

23

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

24

FUEL LINE

8450003-1525

$84.99
