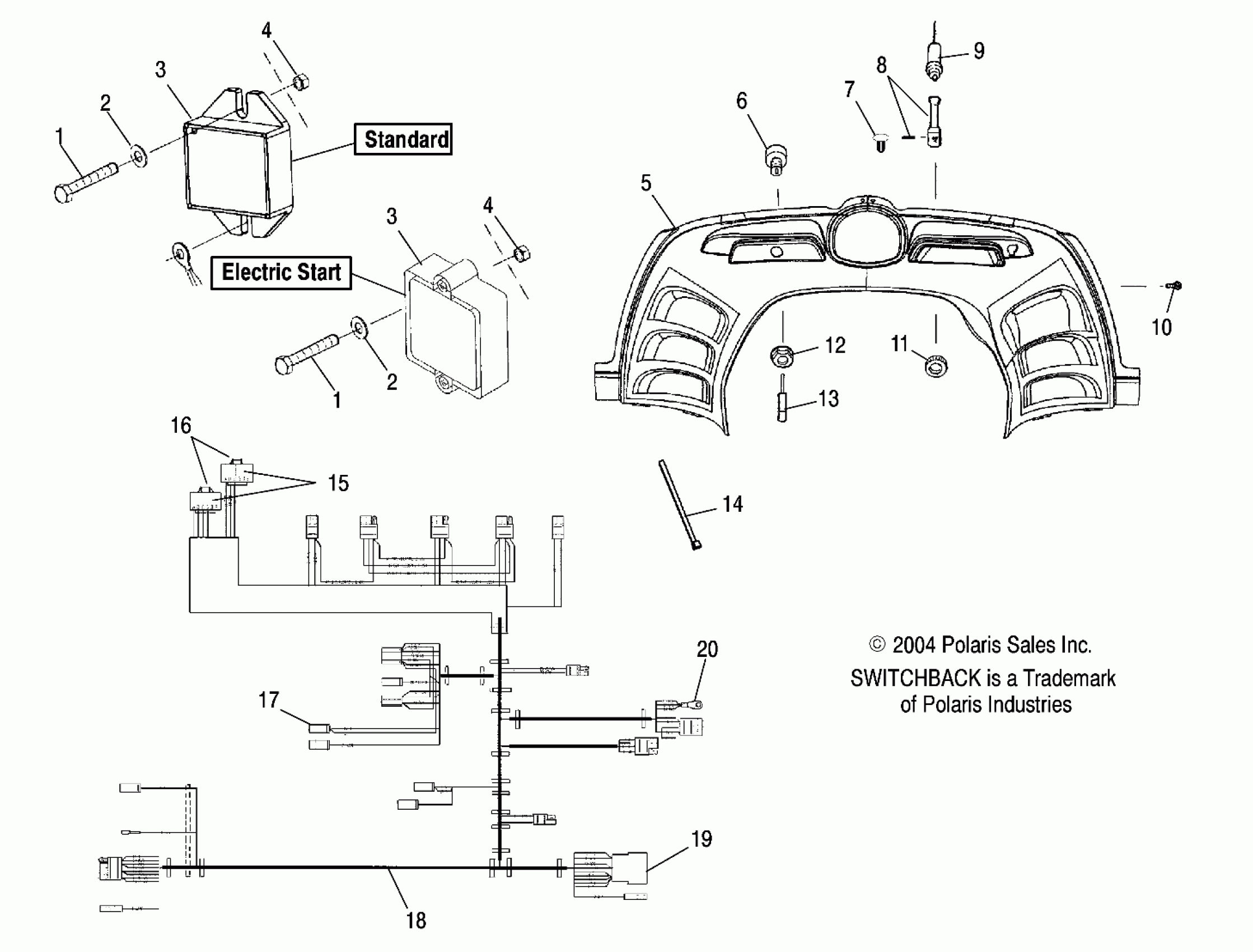

Polaris 600/800 SWITCHBACK F/O - S05NS6ES CONSOLE - S05NS6ES/ESA/S05NS8CS/CSA (4992809280A13) Diagram

#

Description
Price

1

Screw [Standard]

7512031

$2.23

1

Screw [Electric Start]

7517263

Unavailable

1

Screw [Standard]

7512031

$2.23

1

Screw [Electric Start]

7517263

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, AC/DC, 14.3v [Electric Start]

4010794

$116.17

3

Regulator, AC, 14.3v [Standard]

4010793

$101.17

3

Regulator, AC/DC, 14.3v [Electric Start]

4010794

$116.17

3

Regulator, AC, 14.3v [Standard]

4010793

$101.17

4

Nut, Nylok

7541925

$1.49

4

Nut, Nylok

7541925

$1.49

5

Console, RMK

5434134

Unavailable

6

Kit, Ignition Switch, ES, Fuel

2201614

$89.03

7

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

8

Lever, Choke [Incl. Pin]

5432943

Unavailable

9

Cable, Choke, Rack [Incl. 8,11]

7080946

$89.03

10

Screw

7515199

$1.49

11

Nut, Choke, w/Notch

5432944

$8.79

12

Nut, Ignition

7547035

$8.79

13

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

Socket

4010192

Unavailable

16

Housing, Connector

4010193

$8.79

17

Terminal, Ring

4020092

Unavailable

18

Harness, Main

2461146

Unavailable

19

Housing

4020057

$3.51

20

HOUSING

4020063

$3.19
