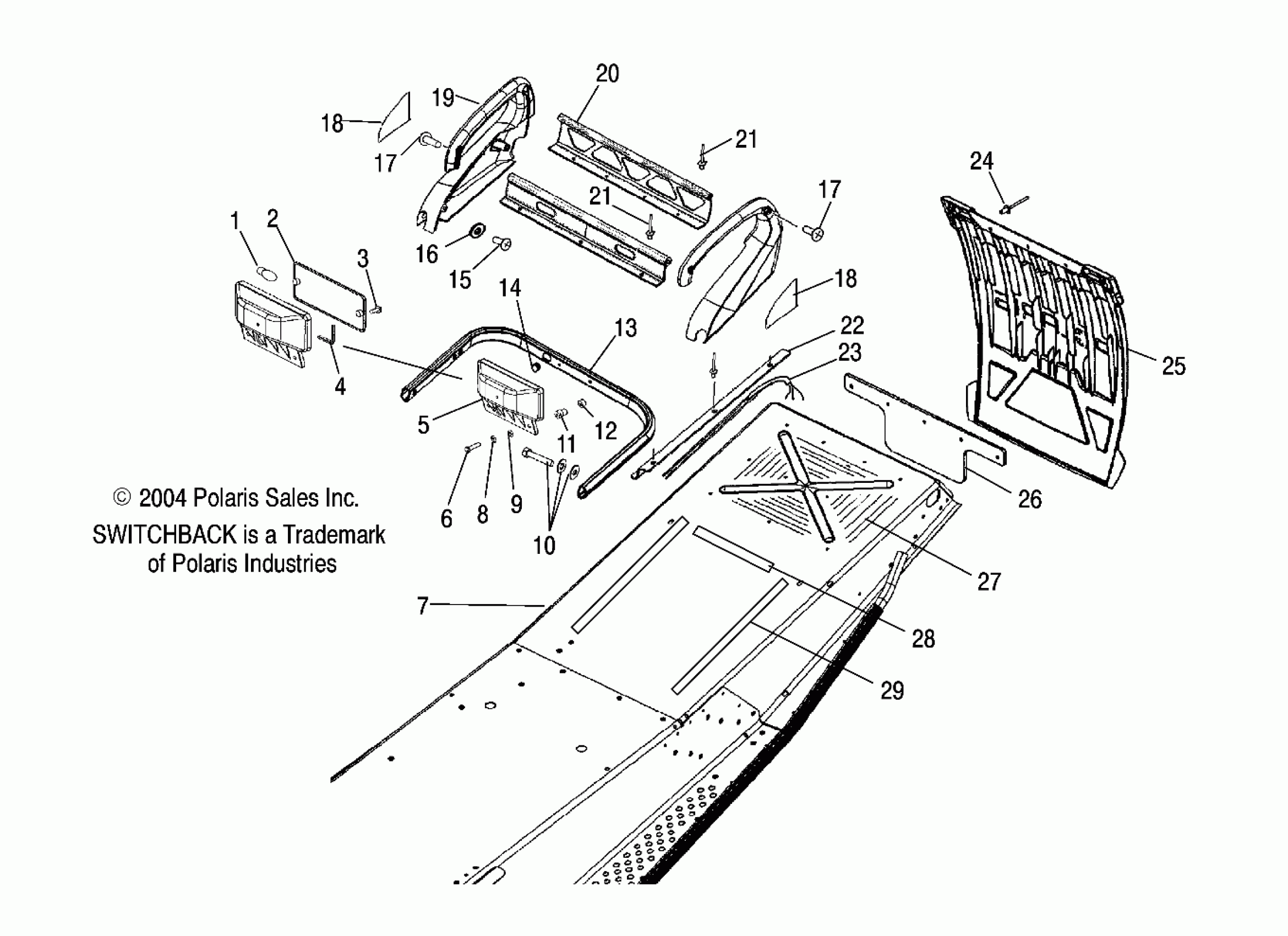

Polaris 600/800 SWITCHBACK F/O - S05NS6ES CHASSIS - S05NS6ES/ESA/S05NS8CS/CSA (4992809280A04) Diagram

#

Description
Price

1

Bulb, Taillight

4030043

$6.46

2

Lens, Red

4032014

$36.41

3

Screw

7518019

$2.63

4

Gasket, Lens

4032015

Unavailable

5

Asm., Taillight [Incl. 1-4]

2410307

$91.19

6

SCREW

7515140

$3.19

7

Kit, Close Off [Incl. Close Off & Rivets]

2202379

$236.99

8

WASHER, SPRING LOCK

7552801

$1.59

9

Washer

7556033

$4.79

10

Washer, Flat

7558301

$1.49

10

WASHER, SPRING LOCK

7552801

$1.59

10

Bolt

7512113

$3.99

11

Mount, Rubber, Carburetor

3021186

$11.99

12

WASHER, NYLON

7555916

$1.59

13

Asm., Bumper, Rear

2632460-309

Unavailable

14

Bushing, Snap

7081039

Unavailable

15

SCREW

7512094

$1.59

16

Washer, Flat

7558301

$1.49

17

SCREW

7517686

$1.59

17

SCREW

7517686

$1.59

18

Decal, Reflector, Red, RH

7079668

$11.90

18

Decal, Reflector, Red, LH

7079667

Unavailable

18

Decal, Reflector, Red, RH

7079668

$11.90

18

Decal, Reflector, Red, LH

7079667

Unavailable

19

Skirt, Snow, LH, Red

5434097-293

Unavailable

19

Skirt, Snow, RH, Red

5434098-293

Unavailable

20

Rack, Front

5133058

$72.49

20

Rack, Rear

5133059

$149.99

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

22

Rivet

7661079

Unavailable

22

Guard, Wire, Taillight [Incl. Rivets]

5245726

$11.59

23

Jumper, Seat, Taillight

2461065

Unavailable

24

RIVET

7621418

$1.49

25

Flap, Snow, Black w/White

5434356-1038

Unavailable

26

Support, Snow Flap

5812229

Unavailable

27

Protector, Bed, Front/Rear

5412033

$7.43

27

Protector, Bed, LH

5412074

$16.47

27

Protector, Bed, RH

5412134

$14.87

28

Gasket, Seat Base, 1/4 Inch

5812360

$1.83

29

Gasket, Seat Base

5812290

$1.49
