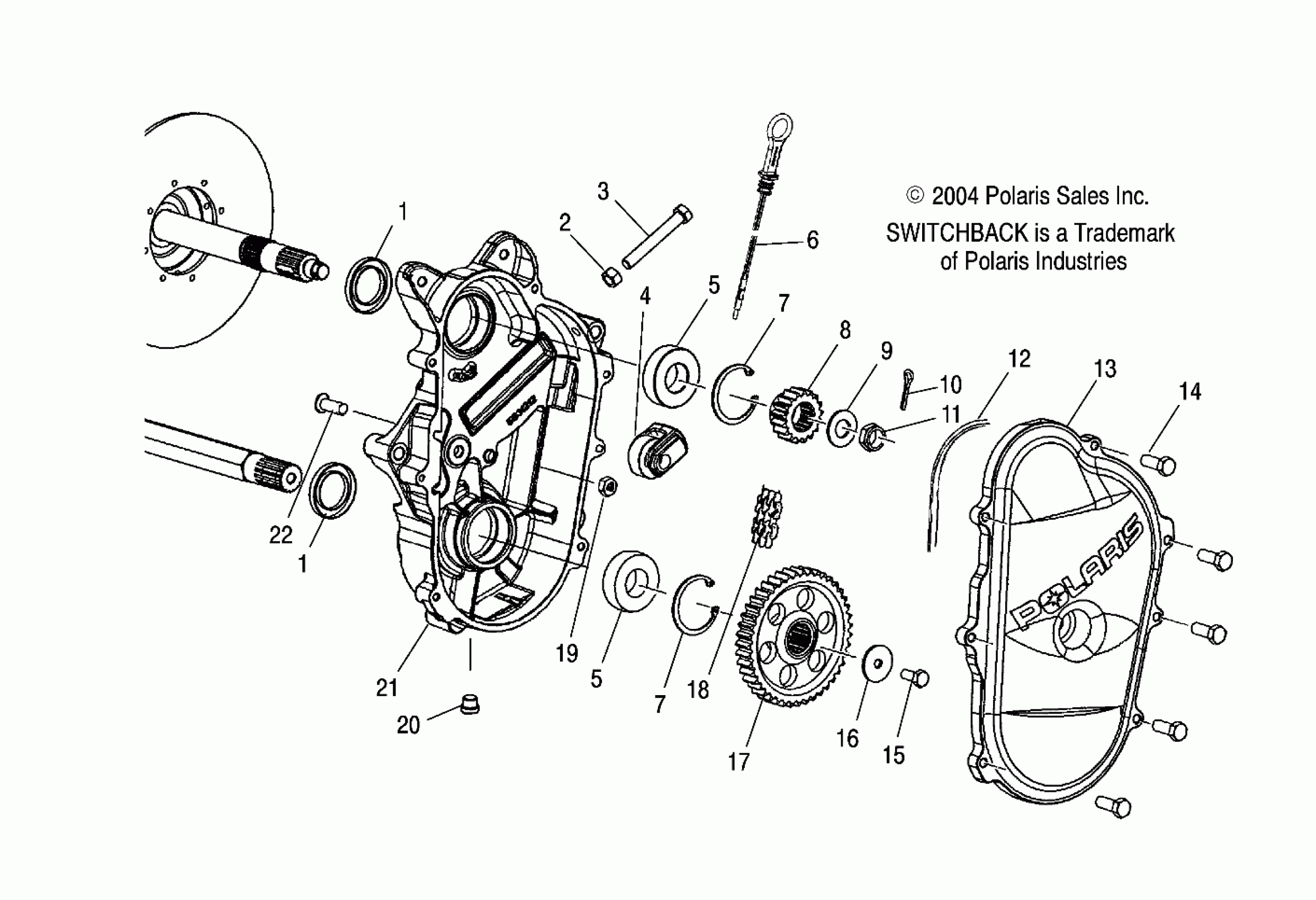

Polaris 600/800 SWITCHBACK F/O - S05NS6ES CHAINCASE - S05NS6ES/ESA/S05NS8CS/CSA (4992809280B12) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Asm., Tightener, Chain, Quiet

1341437

$71.41

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

O-RING

5410675

$1.60

6

Asm., Dipstick [Incl. O-Ring]

1332143

$54.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

SPROCKET-23T,3/4W,15 SPL,HV,PM [800]

3221099

$54.99

8

Sprocket, 22T, 3/4W [600]

3221098

$49.99

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut, Insert

7547202

$5.59

12

GASKET, CHAINCASE COVER

5812574

$29.99

13

COVER, CHAINCASE

5631354

$114.99

14

SCREW

7512242

$2.39

15

Screw

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

Sprocket, 40T [600]

3222099

Unavailable

17

Sprocket, 39T [800]

3222108

$59.99

18

CHAIN, 74P, 3/4W

3221109

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5134085

$113.32

22

Screw

7515477

$34.99
