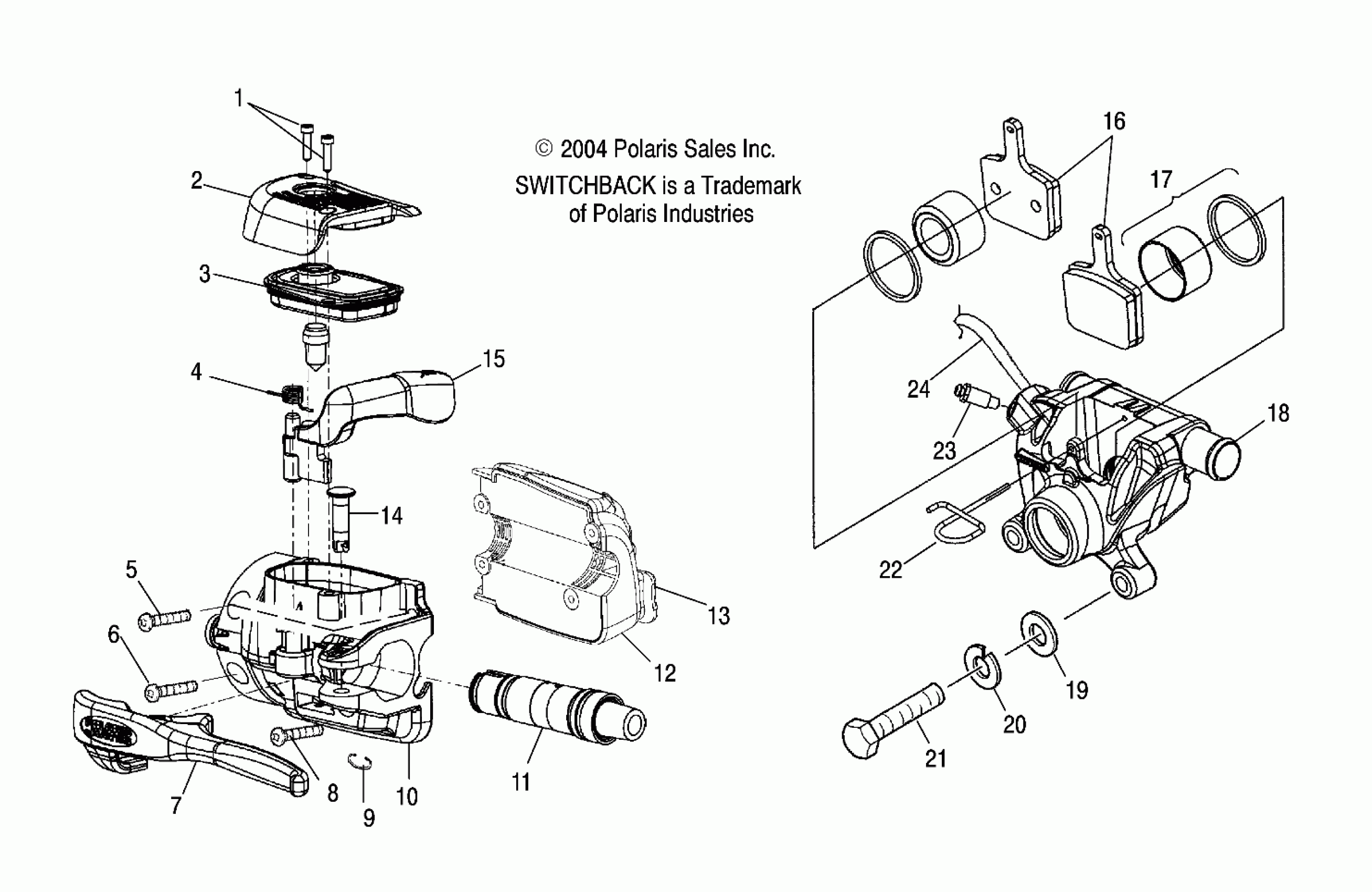

Polaris 600/800 SWITCHBACK F/O - S05NS6ES BRAKE - S05NS6ES/ESA/S05NS8CS/CSA (4992809280A14) Diagram

#

Description
Price

1

Kit, Cover Screw

2201254

$19.99

2

Kit, Cover Assembly [Incl. 1,3]

2201255

$89.03

3

GASKET

-------

Unavailable

4

Kit, Park Lever Spring

2201250

$24.27

5

Screw

7517441

$2.39

6

Screw

7512078

$1.49

7

Kit, Lever

2201943

$52.60

8

Screw

7517566

$3.99

9

Kit, Snap Ring

2201945

$8.79

10

Switch, Brake Light

4010157

Unavailable

10

Kit, Asm Master Cylinder [Incl 2,4,7,11,14]

2202146

$304.98

11

Kit, Cartridge Subassembly

2201944

Unavailable

12

Asm., Control, LH

2010206

Unavailable

13

Button, Switch, HI/LO, LH Control

5433291

Unavailable

14

Kit, Pivot Pin, w/Snap Ring

2201946

$24.27

15

Kit, Park Lever and Spring [Incl. 4]

2201251

$44.51

16

Kit, Brake Pad, Type 81

2202202

$134.99

17

Kit, Seal

2202204

$40.46

17

Kit, Piston/Seal

2202207

$93.08

18

Kit, Brake Caliper Asm. [Incl. 16,17,22]

2202201

Unavailable

19

Washer

7556160

$3.99

20

Washer, Spring Lock

7552603

$1.49

21

Screw

7515534

$4.79

22

Kit, Pin Retaining

2202206

$23.99

23

Kit, Bleeder Fitting

2202205

$36.41

24

Line, Brake

1910613

Unavailable
