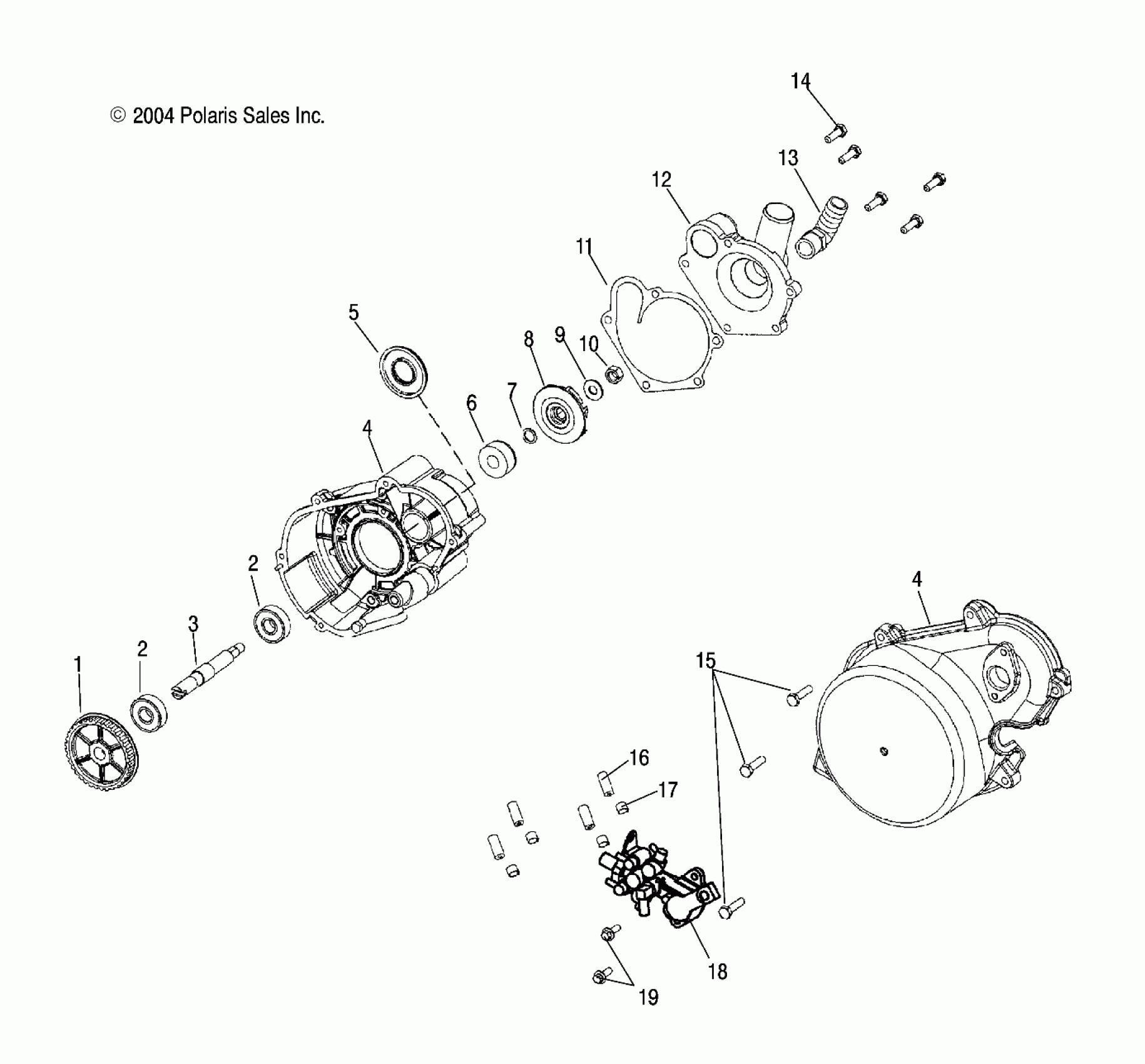

Polaris 600/800 EDGE TOURING - S05NT6ESA WATER PUMP/OIL PUMP (800) - S05NT8CS/8CE (4992869286D06) Diagram

#

Description
Price

1

Pulley, Waterpump, Driven

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

2

Bearing, Ball

3514311

Unavailable

3

Shaft, Waterpump

5132273

$94.99

4

ASM., HOUSING, IGNITION [SEE MAGNETO, 800 PG. D10, REF. 13]

-------

Unavailable

4

ASM., HOUSING, IGNITION [SEE MAGNETO, 800 PG. D10, REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

SEAL

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

Nut, Hex, Nylok

7546804

$1.49

11

Gasket, Waterpump, Cove

5811627

$8.89

12

Cover, Waterpump

5631280

Unavailable

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39

15

Screw

7516823

$3.19

16

LINE, FUEL

8450061-600

Unavailable

17

Clamp

7080603

$1.59

18

Asm., Pump, Oil

2540102

Unavailable

19

Screw

7516607

$10.39
