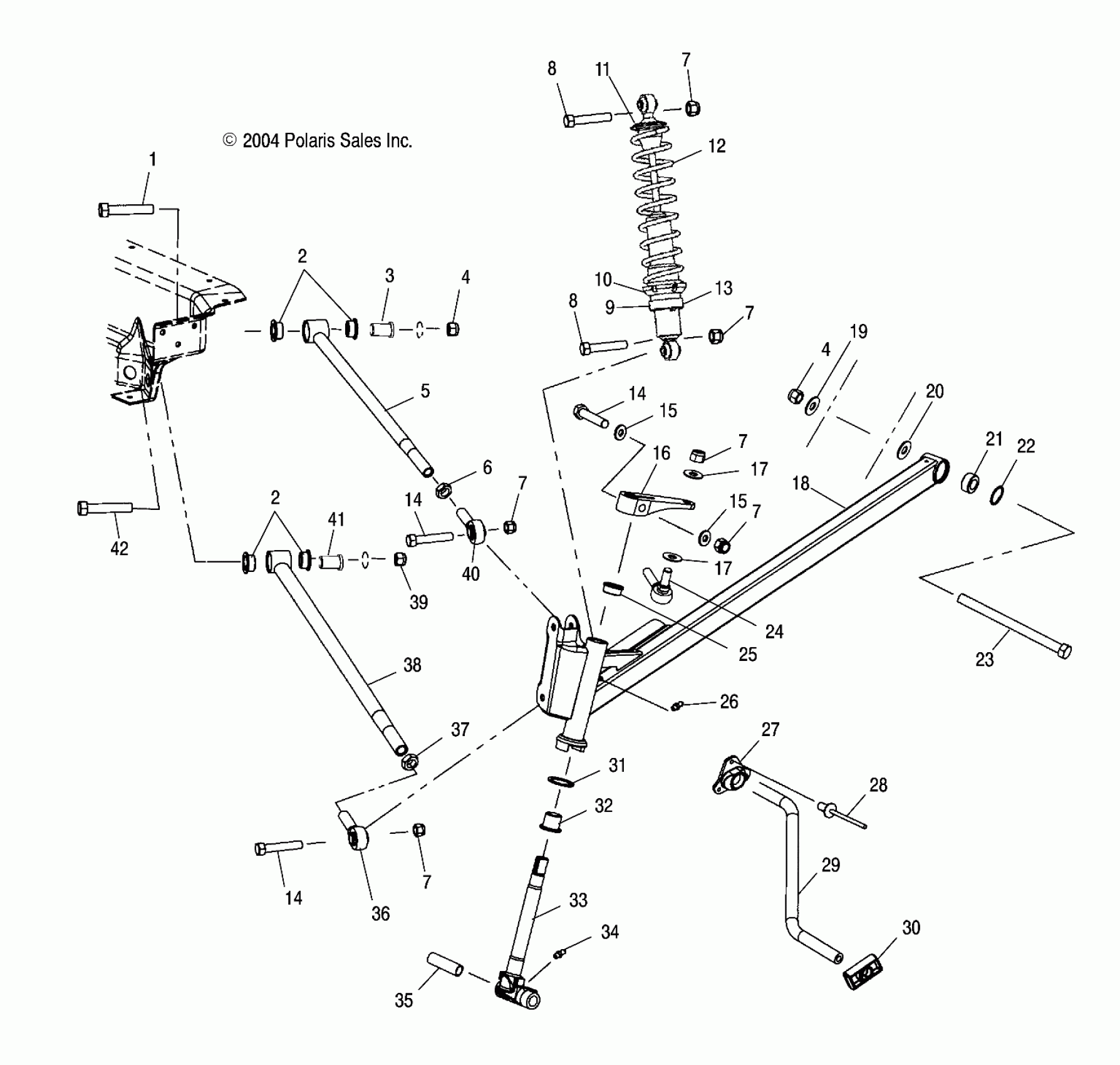

Polaris 600/800 EDGE TOURING - S05NT6ESA FRONT SUSPENSION - S05NT6ESA/6EEA/6ESB/6EEB/8CS/8CE (4992869286B01) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Bushing, Pivot, Inner

5434036

$14.99

2

Bushing, Pivot, Inner

5434036

$14.99

3

Bushing, Shoulder

5132779

$11.99

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Rod, Radius, Upper, Cloud, Silver

1820679-385

Unavailable

6

Nut, Jam

7542520

$2.39

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515433

$1.59

8

Screw

7515433

$1.59

9

Shock, Gas

7041918

Unavailable

10

Ring, Spring Preload, Adjust

5431734

$52.60

11

RETAINER, SPRING SLOTTED

5630580

Unavailable

12

Spring, Compression, Cloud Silver

7042074-385

$89.99

12

Spring, Compression, Red

7042074-256

Unavailable

12

Spring, Compression Gold

7042074-462

$45.59

13

RETAINER, SPRING, BODY, THREADED

1500063

$44.51

14

SCREW

7517583

$4.35

14

SCREW

7517583

$4.35

14

SCREW

7517583

$4.35

15

WSHR-.813X.406X.105-Y

7555832

$2.39

15

WSHR-.813X.406X.105-Y

7555832

$2.39

16

Arm, Steering

5132728

$79.99

17

Washer, Flat

7555797

$3.99

17

Washer, Flat

7555797

$3.99

18

Asm., Trailing Arm, Cloud Silver, LH [Incl. 21,22]

1821165-385

Unavailable

18

Asm., Trailing Arm, Cloud Silver, RH [Incl. 21,22]

1821166-385

Unavailable

19

WASHER, FLAT

7555820

$3.99

20

Cup, Mount, Trailing Arm

5132364

$20.22

21

Bearing, Spherical

7061042

$31.99

22

RING, RETAINER

7710437

$3.19

23

Screw

7512099

$19.99

24

Rod End, RH

7061057

$48.56

25

BUSHING, FLANGE

3573909

$2.39

26

Fitting, Lubrication

7080433

$1.49

27

Bushing, Torsion Bar

5433814

$23.99

28

Rivet

7621452

$1.49

29

Bar, Torsion

5244557-067

$84.99

30

Slide, Torsion Bar

5434371

$24.27

31

Bushing

7556509

$1.59

32

BUSHING, FLANGED

3574208

$3.19

33

Shaft, Spindle, w/Steer Stop, Black

6230225-067

$219.99

34

Fitting, Lubrication, w/Ball

7080306

$3.19

35

BUSHING, PIVOT

5010158

$19.99

36

Rod End, Radius

7061060

$48.56

37

Nut, Jam

7542711

$2.39

38

Rod, Radius, Lower, Cloud Silver

1820677-385

$104.99

39

Nut, Nylok

7547065

$3.99

40

Rod End, Radius

7061061

$48.56

41

Bushing, Shoulder

5132780

$7.99

42

Bolt

7512684

Unavailable
