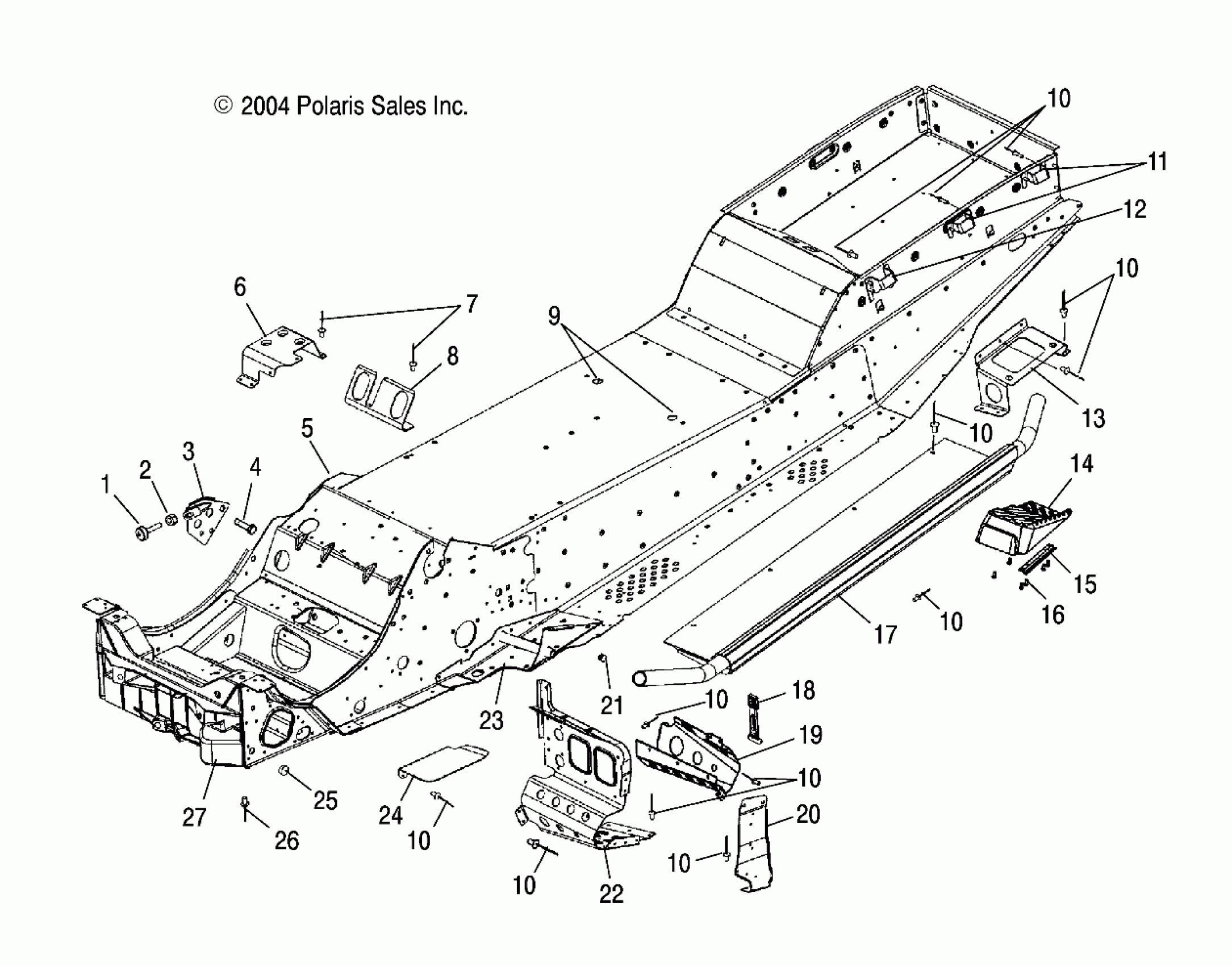

Polaris 600/800 EDGE TOURING - S05NT6ESA CHASSIS - S05NT6ESA/6EEA/6ESB/6EEB/8CS/8CE (4992869286A03) Diagram

#

Description
Price

1

Stop, Torque [800]

3110078

$36.41

1

Stop, Torque [600]

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque [800]

1013377

$27.19

3

Stop, Torque [600]

1013379

Unavailable

4

SCREW

7517632

$5.59

5

Asm., Chassis, Touring, Natural

1014451-309

$1,099.99

6

Bracket, Oil Bottle

5245202

$17.43

7

Rivet

7621432

$1.49

8

Bracket, Airbox

5246177

$18.23

9

Plug, Hole

7081076

$3.22

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Hook, Cargo, Black

5246278-067

$3.02

12

Hook, Cargo, Front, Black

5246439-067

$3.03

13

Bracket, Lower, Acc. Attach, Black, LH

5246275-067

$21.43

13

Bracket, Lower, Acc. Attach, Black, RH

5246276-067

$20.63

14

Asm., Footrest, Passenger, LH [Incl. 15,16]

1013857

$41.59

14

Asm., Footrest, Passenger, RH [Incl. 15,16]

1013858

$41.27

15

Mount, Passenger Footrest

5246435

Unavailable

16

SCREW

7512076

$1.49

17

Cooler, Running Board, LH

1240133

Unavailable

17

Cooler, Running Board, RH

1240134

$278.99

18

STRAP-AIRBOX TOP

5433150

$24.27

19

Mount, Console, Toe Clip, LH

5245457

Unavailable

19

Mount, Console, Toe Clip, RH

5245458

Unavailable

20

Support, Footrest, LH

5246310

$19.83

20

Support, Footrest, RH

5246311

$32.37

21

PLUG, BARBED

7081085

$7.27

22

Footrest, LH

5245288

Unavailable

22

Footrest, RH

5247205

Unavailable

23

Kit, Mount, Trailing Arm, LH

2202059

$213.00

23

Kit, Mount, Trailing Arm, RH

2202598

$124.99

24

Guard, Adapter Drive

5221583

$11.59

25

PLUG, HOLE

7080416

$5.65

26

RIVET-3/16-.090-.290

7661637

$1.49

27

Bulkhead, Front

5132292

$115.99
