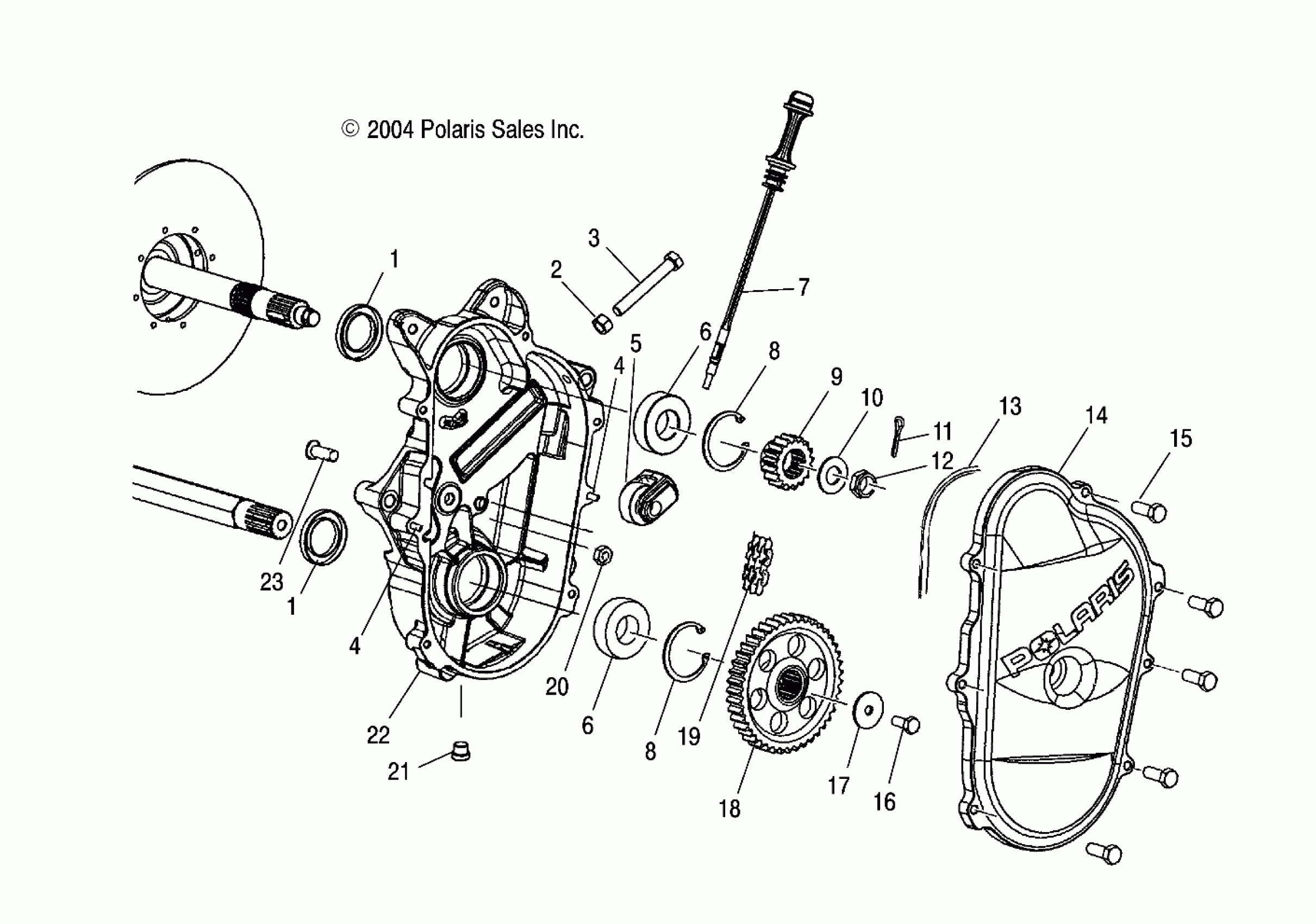

Polaris 600/800 EDGE TOURING - S05NT6ESA CHAINCASE - S05NT6ESA/6EEA/6ESB/6EEB/8CS/8CE (4992869286B08) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Pin, Dowel

7661826

$5.65

4

Pin, Dowel

7661826

$5.65

5

Asm., Tightener, Chain

1341437

$71.41

6

BEARING, BALL

3514309

$15.87

6

BEARING, BALL

3514309

$15.87

7

O-RING

5410675

$1.60

7

ASM., DIPSTICK

1332143

$54.99

8

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

9

Sprocket, 22T [800]

3221098

$49.99

9

Sprocket, 21T [600]

3221097

$49.99

10

Washer, Spring

7571620

$7.19

11

Pin, Cotter

7661203

$1.49

12

Nut

7547202

$5.59

13

GASKET, CHAINCASE COVER

5812574

$29.99

14

COVER, CHAINCASE

5631354

$114.99

15

SCREW

7512242

$2.39

16

Screw

7517979

$3.99

17

Washer, Spring

7571618

$6.39

18

Sprocket, 40T [800]

3222099

Unavailable

18

Sprocket, 41T [600]

3222101

$40.46

19

CHAIN, 74P, 3/4W

3221109

$164.99

20

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

21

PLUG

7052115

$5.65

22

Chaincase

5134085

$113.32

23

Screw, Carriage

7515477

$34.99
