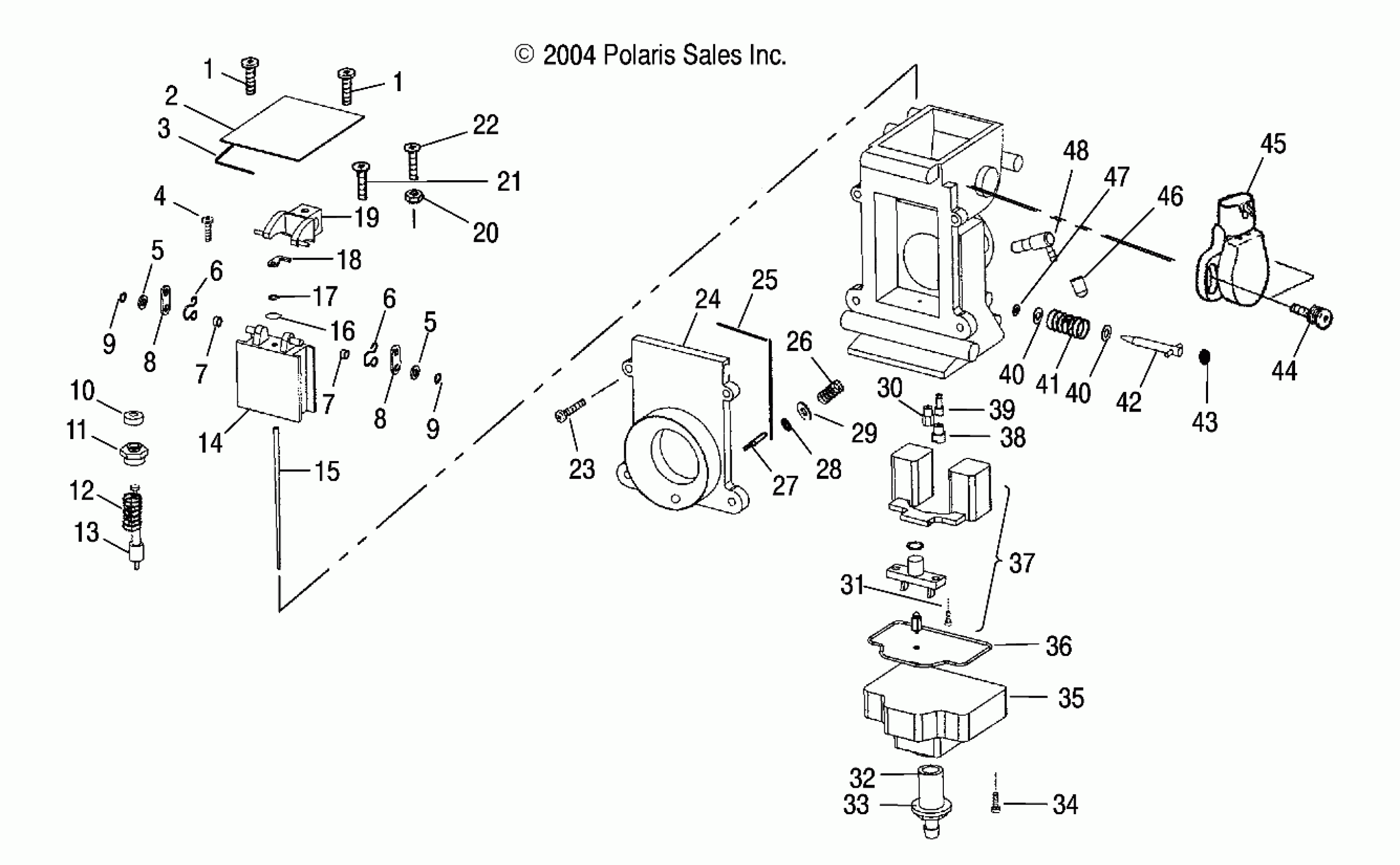

Polaris 600/800 EDGE TOURING - S05NT6ESA CARBURETOR (800) - S05NT8CS/8CE (4992869286D07) Diagram

#

Description
Price

-

Asm., Carburetor

1253504

Unavailable

1

Screw

3130951

$3.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Washer, Packing

3130846

$4.79

5

Washer, Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Asm., Plunger

3130828

$32.37

14

Valve, Piston, 2.0

3131252

$134.99

15

Needle, Jet

3131438

$32.37

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Asm., Lever [LH]

3130855

$64.75

19

Asm., Lever [RH]

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw [LH]

3130854

$3.19

22

Screw [RH]

3130850

$4.79

23

Screw

3130825

$3.19

24

Asm., Funnel

3131439

$61.90

25

O-Ring, Air Funnel, Long

3131356

$16.17

26

Spring

3131371

Unavailable

27

Screw, Air

3131336

Unavailable

28

O-Ring

3130522

$5.65

29

Washer

3131372

$5.59

30

Jet, Main, 470

3130147

$7.27

31

Screw

3130860

$8.79

32

Bolt, Drain

3131248

Unavailable

33

O-Ring

3130863

$2.41

34

Screw

3130824

$3.19

35

Body, Float

3130858

$119.99

36

O-Ring

3130861

$12.13

37

Asm., Float

3131231

$134.99

38

Jet, Pilot, 45

3130068

$8.89

39

Jet, Starter, 145

3130769

$8.89

40

Washer

3130837

$3.19

40

Washer

3130837

$3.19

41

SPRING

3130836

$7.27

42

Adjuster

3130987

$20.22

43

Cap

3130986

$9.70

44

Screw [MAG]

3131010

$4.79

45

Asm., Sensor [MAG]

3131009

$259.03

46

CAP

3130479

$14.56

47

Packing

3130835

$2.41

48

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
