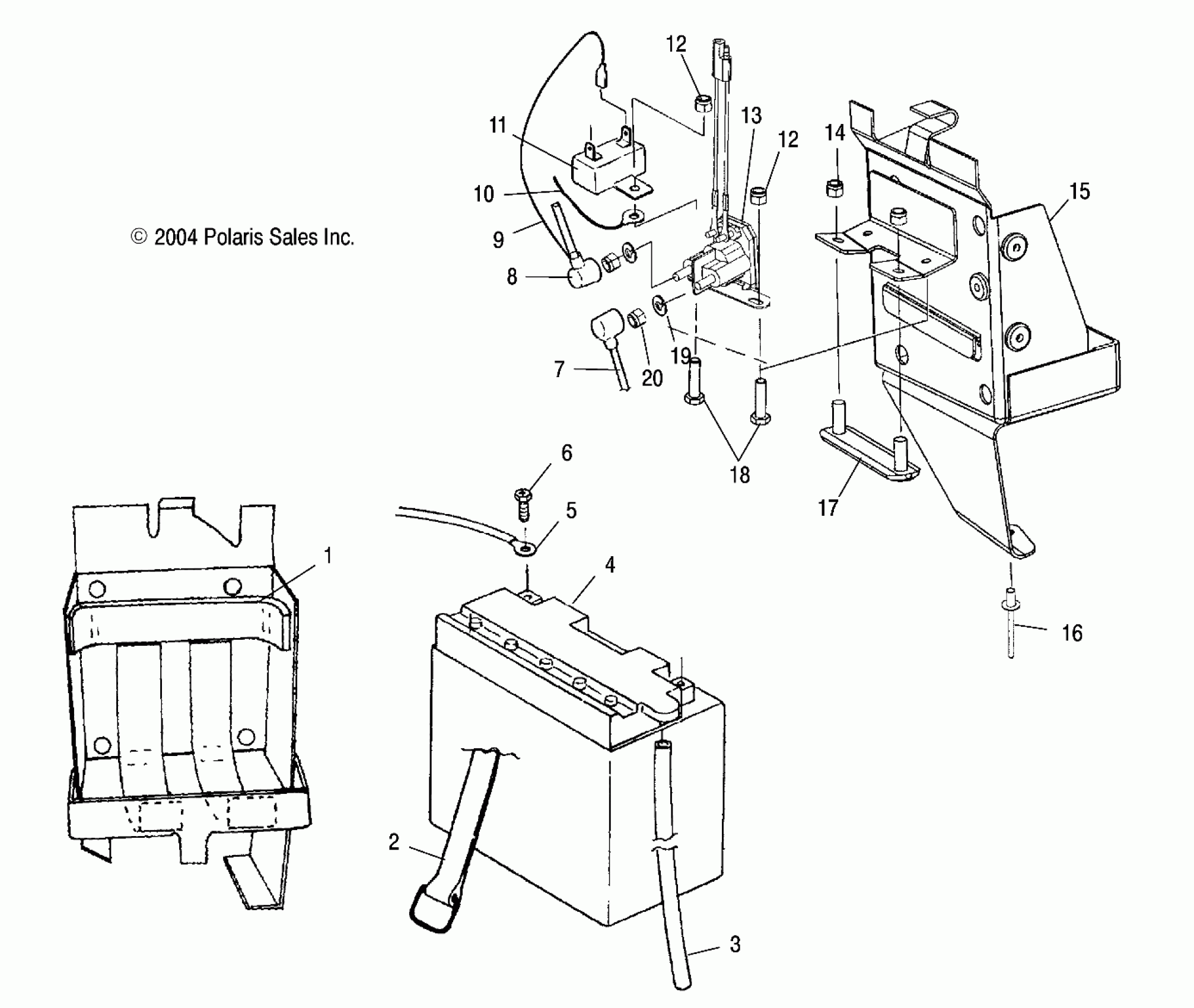

Polaris 600/800 EDGE TOURING - S05NT6ESA BATTERY BOX - S05NT6ESA/6EEA/6ESB/6EEB/8CS/8CE (4992869286C06) Diagram

PAD-BATTERY

5810290

$7.27

Asm., Strap, Battery Hold-Down

2450020

$29.03

Tube, Vent

5433681

Unavailable

Battery

4140006

$99.99

Cable, Battery

4010114

Unavailable

Kit, Battery Bolt

2200361

$3.99

Cable, Solenoid/Starter

4010107

Unavailable

INSULATOR-CABLE

5410346

$6.39

Asm., Cable, Solenoid

2460393

$36.41

Wire, Jumper, Solenoid/Battery

4010108

Unavailable

Breaker, Circuit

2434008

Unavailable

Nut, Nylok

7541925

$1.49

Nut, Nylok

7541925

$1.49

SWITCH, MAGNETIC [SEE STARTING MOTOR 600 PG. D12, REF. 19, SEE STARTING MOTOR 800 PG. D13, REF. 15]

-------

Unavailable

Nut, Nylok

7542122

$1.49

Box, Battery, Black [800]

1013679-067

Unavailable

Box, Battery, Black [600]

1013256-067

Unavailable

RIVET

7621467

$1.49

Plate, Stud

1013385

Unavailable

Screw

7511930

$2.39

WASHER, SPRING LOCK [SEE STARTING MOTOR 600 PG. D12, REF. NO TAG, SEE STARTING MOTOR 800 PG. D13, REF. 2]

-------

Unavailable

NUT, HEX [SEE STARTING MOTOR 600 PG. D12, REF. 1, SEE STARTING MOTOR 800 PG. D13, REF. 1]

-------

Unavailable
