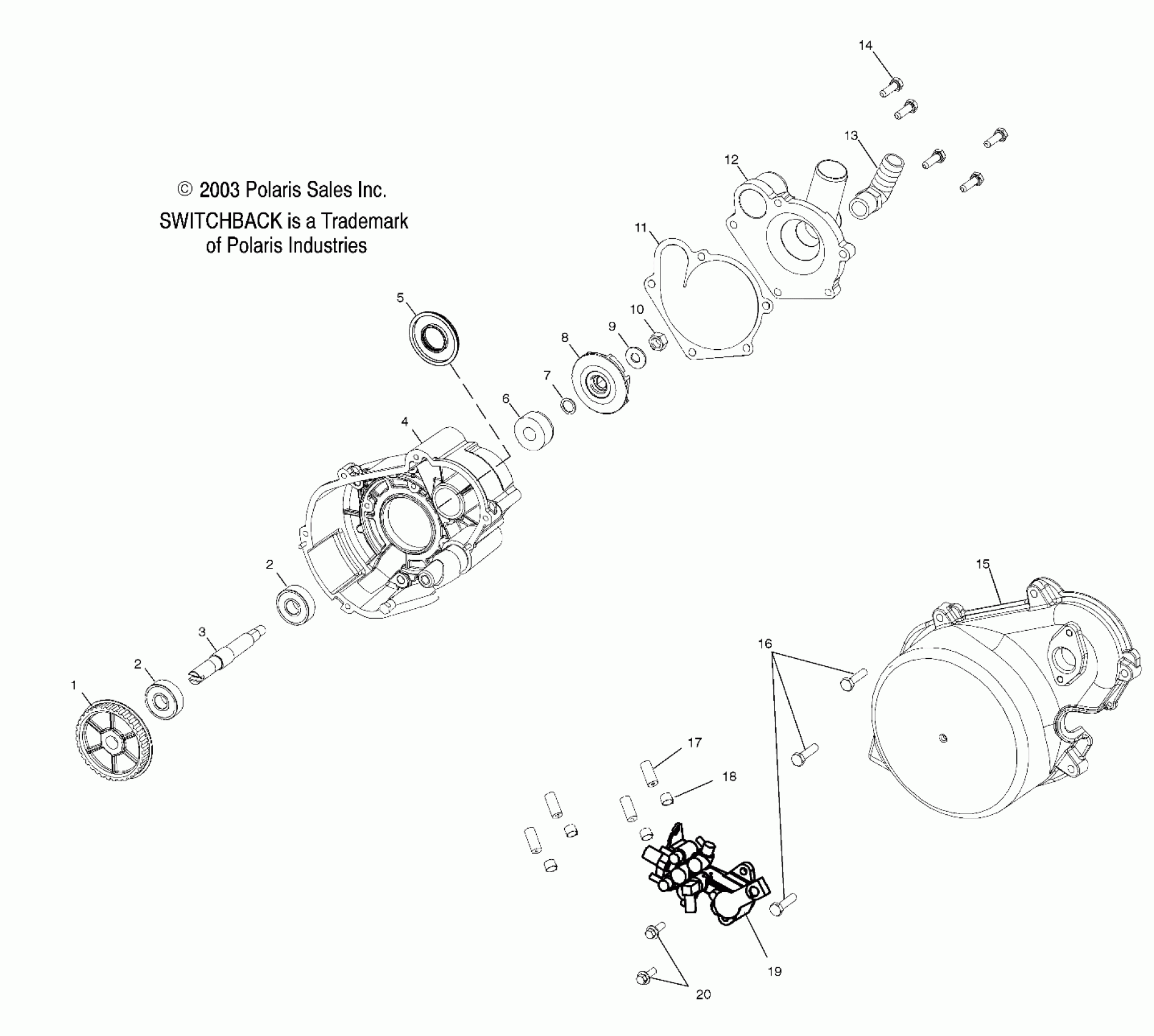

Polaris 600/700/800 SWITCHBACK - S04NS6ES WATER PUMP/OIL PUMP (800) - S04NS8CS/A/B/C/D (4988378837D14) Diagram

#

Description
Price

1

Pulley, Waterpump, Driven

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

2

Bearing, Ball

3514311

Unavailable

3

Shaft, Waterpump

5132273

$94.99

4

HOUSING, IGNITION [SEE MAGNETO, [800] PG. E4, REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Waterpump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller, Waterpump

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

Nut, Hex, Nylok

7546804

$1.49

11

Gasket, Waterpump, Cover

5811627

$8.89

12

Cover, Waterpump

5631280

Unavailable

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39

15

HOUSING, IGNITION [SEE MAGNETO, [800] PG. E4, REF. 13]V

-------

Unavailable

16

Screw

7516823

$3.19

17

LINE, FUEL

8450061-600

Unavailable

18

Clamp

7080603

$1.59

19

Asm., Pump, Oil

2540102

Unavailable

20

Screw

7516607

$10.39
