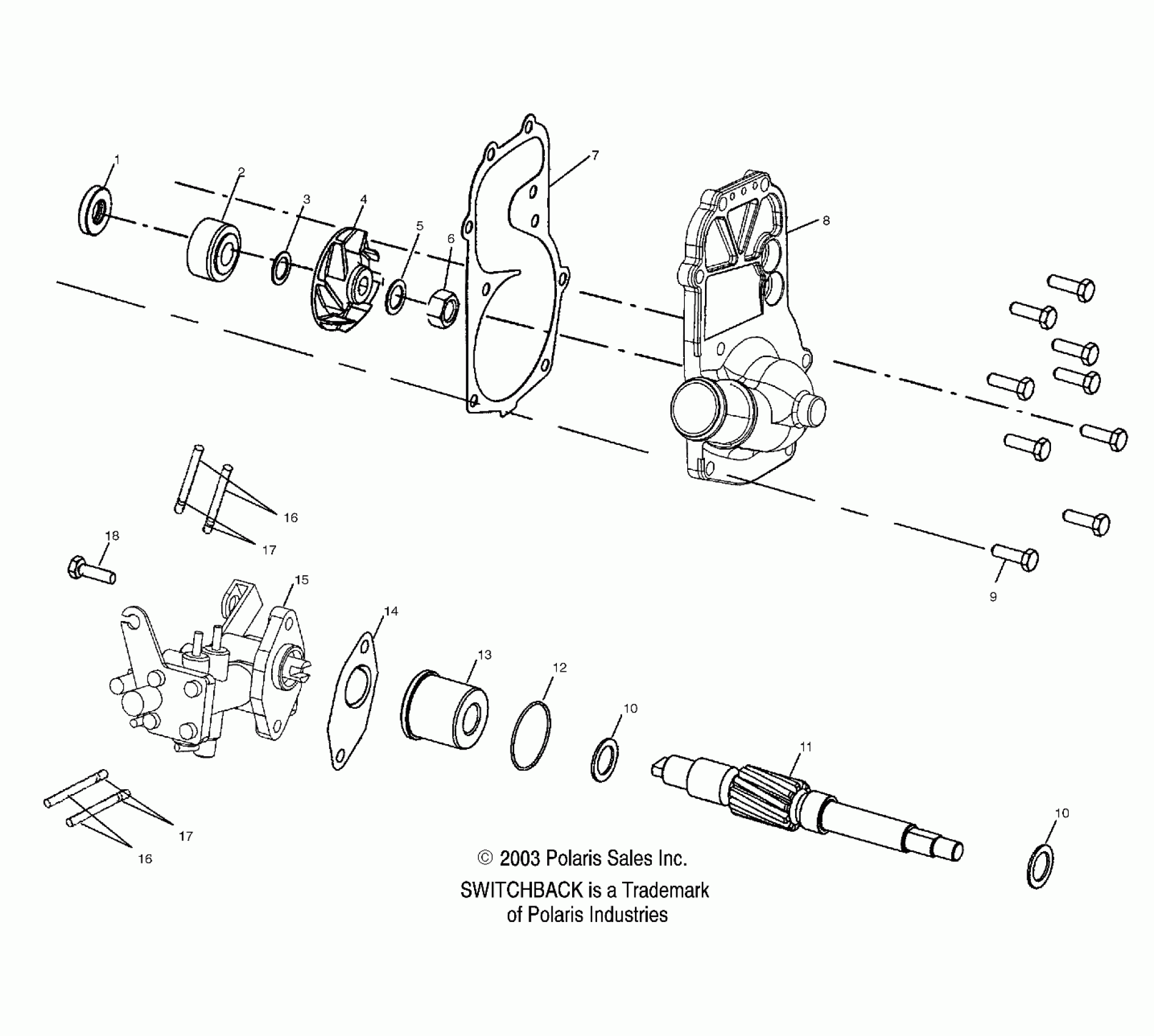

Polaris 600/700/800 SWITCHBACK - S04NS6ES WATER PUMP/OIL PUMP (600) - S04NS6ES/A/B/C/D (4988378837C12) Diagram

#

Description
Price

1

SEAL

5411197

$24.27

2

Seal, Waterpump

3610067

$44.51

3

Washer, Flat

7556006

$3.99

4

Impeller, Water Pump

5432330

$23.99

5

Washer, Flat

7555874

$2.39

6

NUT, NYLOK

7546804

$1.49

7

GASKET, WATER PUMP COVER

5811601

$20.22

8

Cover, Water Pump, Hi Flow

5630920

Unavailable

9

SCREW

7516822

$2.39

10

WASHER, THRUST

7555977

$7.19

10

WASHER, THRUST

7555977

$7.19

11

Driveshaft, Water/Oil Pump

5131855

Unavailable

12

O-Ring

5411196

$3.22

13

Bearing, Pump Shaft, Flanged

5010391

Unavailable

14

Gasket, Oil Pump

5811789

$12.94

15

Asm., Pump, Oil

2540105

Unavailable

16

LINE, OIL

8450061-600

Unavailable

16

LINE, OIL

8450061-600

Unavailable

17

Clamp

7080603

$1.59

17

Clamp

7080603

$1.59

18

SCREW

7517277

$3.19
