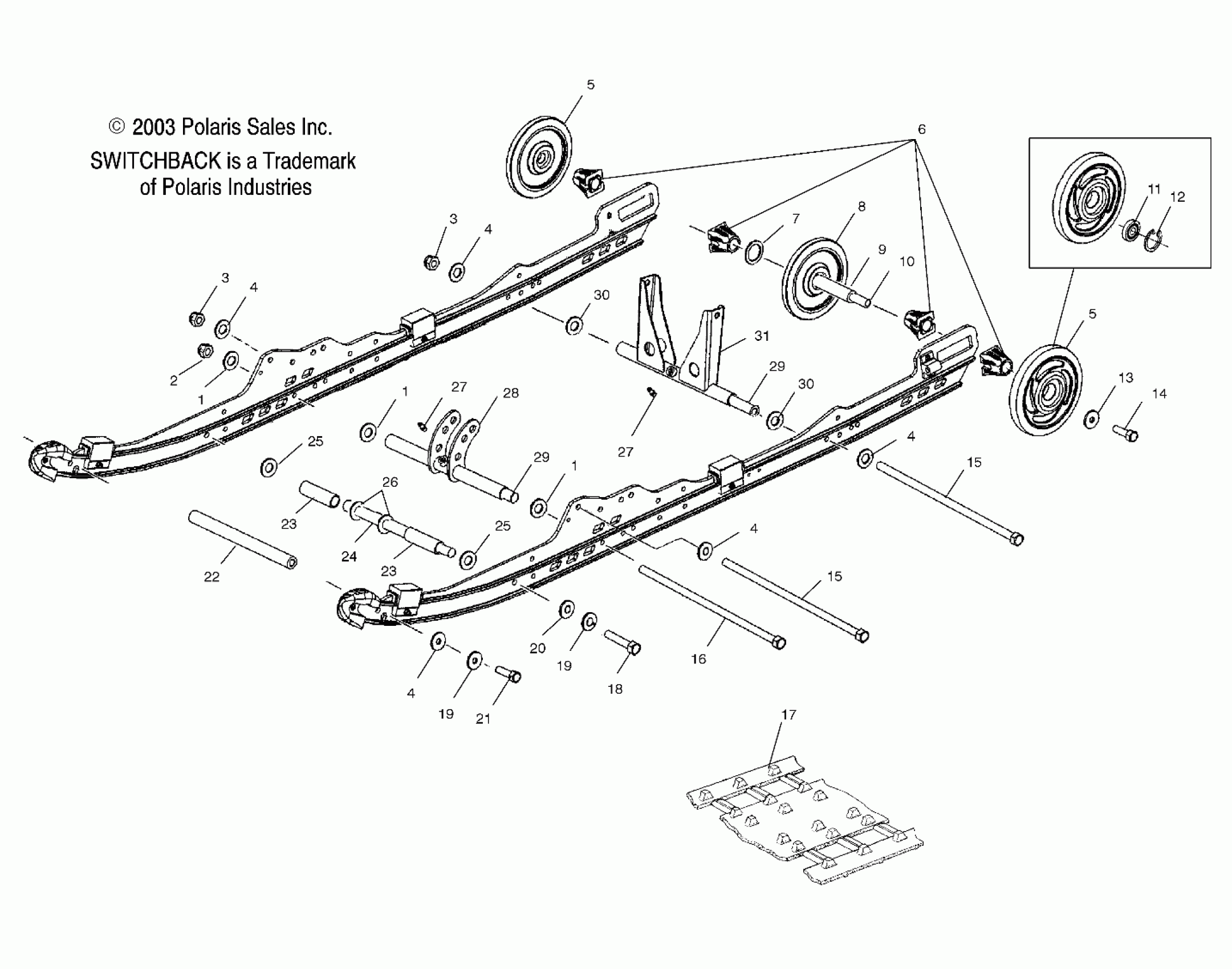

Polaris 600/700/800 SWITCHBACK - S04NS6ES SUSPENSION - S04NS6ES/A/B/C/D-S04NS7CS/A/B/C/D-S04NS8CS/A/B/C/D (4988378837B07) Diagram

#

Description
Price

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

2

Nut, Nylok

7547217

$3.99

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

Asm., Wheel, Idler Red [Incl. 11,12]

1590303-293

$48.56

5

Asm., Wheel, Idler Blue [Incl. 11,12]

1590303-107

Unavailable

5

Asm., Wheel, Idler Red [Incl. 11,12]

1590303-293

$48.56

5

Asm., Wheel, Idler Blue [Incl. 11,12]

1590303-107

Unavailable

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

ASM., WHEEL

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

BEARING

3514384

$19.84

12

RING-RETAINING

7710444

$8.79

13

WASHER, BELLE

7556130

$6.39

14

BOLT

7517731

$1.49

15

SCREW

7517921

$23.99

15

SCREW

7517921

$23.99

16

Screw

7517996

Unavailable

17

Track

5412168

Unavailable

18

Screw

7517857

$5.59

19

Washer, Spring Lock

7552603

$1.49

19

Washer, Spring Lock

7552603

$1.49

20

WASHER

7556042

Unavailable

21

Screw

7517247

$3.19

22

Shaft

5020868

Unavailable

23

Spacer, Shock Centering

5334062

$11.99

23

Spacer, Shock Centering

5334062

$11.99

24

SHAFT

5133188

$40.46

25

WSHR-.813X.406X.105-Y

7555832

$2.39

25

WSHR-.813X.406X.105-Y

7555832

$2.39

26

WASHER

7556210

$3.99

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

28

Arm, Pivot, Shock

1541635-067

$67.76

29

Tube

5334042

Unavailable

29

Tube

5334042

Unavailable

30

WASHER, FLAT

7556242

$2.39

30

WASHER, FLAT

7556242

$2.39

31

Arm, Pivot, Rear

1541832-067

$104.99
