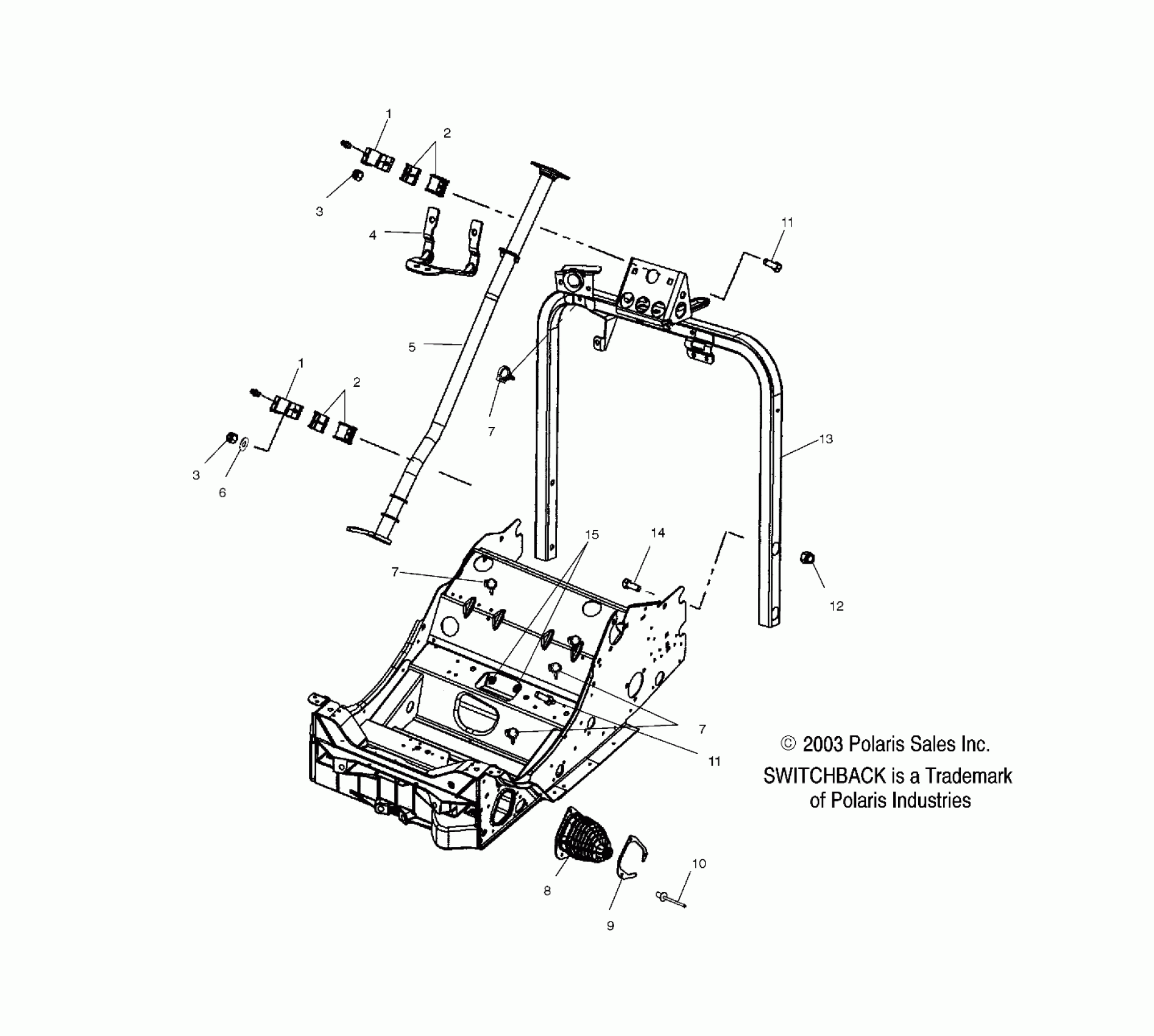

Polaris 600/700/800 SWITCHBACK - S04NS6ES STEERING/HANDLEBAR - S04NS6ES/A/B/C/D-S04NS7CS/A/B/C/D-S04NS8CS/A/B/C/D (4988378837B05) Diagram

#

Description
Price

1

FITTING, ZERK

7080510

$5.59

1

Bracket, Steering Post

5133648

$54.99

1

FITTING, ZERK

7080510

$5.59

1

Bracket, Steering Post

5133648

$54.99

2

Bushing, Steering Post

5432785

$6.39

2

Bushing, Steering Post

5432785

$6.39

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

Bracket, Console, Front Neck

5245373

$13.99

5

Post, Steering

1821060-067

$194.99

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

CLIP, ROSEBUD

4020139

$4.79

7

CLIP, ROSEBUD

4020139

$4.79

7

CLIP, ROSEBUD

4020139

$4.79

8

Boot, Tie Rod, LH

5433532

Unavailable

8

Boot, Tie Rod, RH

5433533

Unavailable

9

Plate, Tie Rod Boot

5244470

Unavailable

10

Rivet

7621433

$1.49

11

BOLT, CARRIAGE

7517579

$6.39

11

BOLT, CARRIAGE

7517579

$6.39

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

13

Hoop, Steering

1013444-067

Unavailable

14

Bolt, Carriage

7512377

$4.79

15

PALNUT

7547030

$4.79
