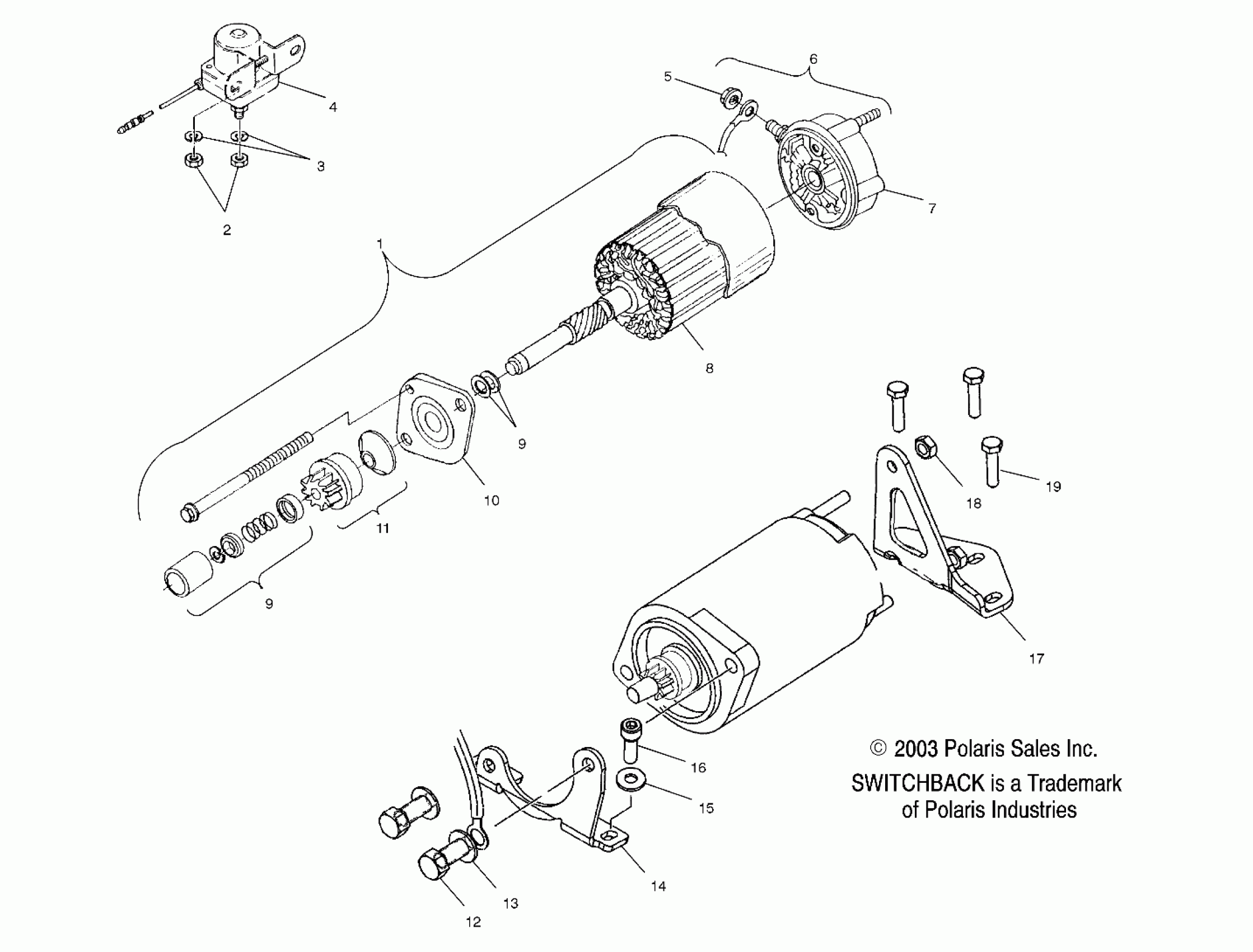

Polaris 600/700/800 SWITCHBACK - S04NS6ES STARTING MOTOR (600) - S04NS6ES/A/B/C/D (4988378837E06) Diagram

#

Description
Price

1

Motor, Starter

4170006

Unavailable

2

Nut

3082939

Unavailable

3

Washer, Spring

3080077

$2.39

4

Switch, Magnetic [Incl. 2,3]

3083211

Unavailable

5

Nut, FLEXLOC

7542103

$5.59

6

Kit, Asm., Commutator Cap [Incl. 7]

2200758

$82.39

7

Kit, Brush & Spring

2200759

$59.99

7

ASM., BRUSH & SCREW

-------

Unavailable

7

ASM., BRUSH

-------

Unavailable

7

BUSHING, INSULATION

-------

Unavailable

7

WASHER, INSULATION

-------

Unavailable

7

Nut

-------

Unavailable

8

Kit, Armature

2200756

$169.99

9

Kit, Drive Hardware

2200755

Unavailable

9

WASHER, CURVED SPRING

-------

Unavailable

9

Washer, Thrust

-------

Unavailable

9

SPACER

-------

Unavailable

9

SPRING, ANTIDRIFT

-------

Unavailable

9

PINION, STOP

-------

Unavailable

9

RING, LOCK

-------

Unavailable

9

COVER, DUST

-------

Unavailable

9

Kit, Drive Hardware

2200755

Unavailable

9

WASHER, CURVED SPRING

-------

Unavailable

9

Washer, Thrust

-------

Unavailable

9

SPACER

-------

Unavailable

9

SPRING, ANTIDRIFT

-------

Unavailable

9

PINION, STOP

-------

Unavailable

9

RING, LOCK

-------

Unavailable

9

COVER, DUST

-------

Unavailable

10

Kit, Drive Cap

2200757

$59.99

11

Kit, Asm., Drive

2200754

Unavailable

11

PLATE, DRIVE

-------

Unavailable

11

PINION

-------

Unavailable

12

Screw

7512492

$1.49

13

Washer, Spring Lock

7552603

$1.49

14

Bracket, Starter, Front

5245467

Unavailable

15

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

16

Screw

7517322

$2.39

17

Bracket, Starter, Rear

5244250

$389.99

18

NUT, FLANGED, NYLOK

7542153

$1.59

19

Screw

7516823

$3.19
