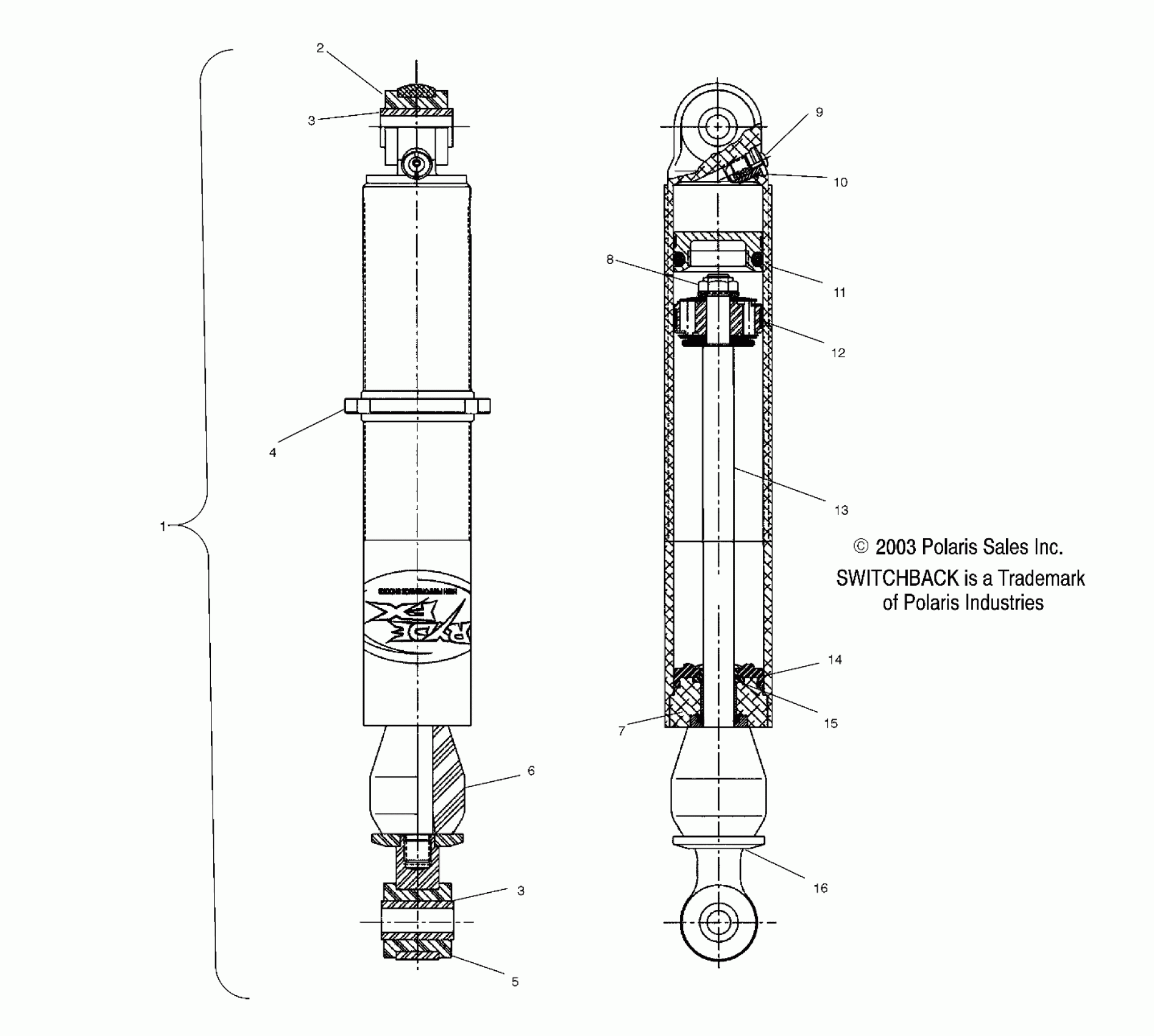

Polaris 600/700/800 SWITCHBACK - S04NS6ES SHOCK (IFS) - S04NS6ES/A/B/C/D-S04NS7CS/A/B/C/D-S04NS8CS/A/B/C/D (4988378837C04) Diagram

Description

Price

Shock, IFS

7042147

Unavailable

Bushing

1700036

$7.99

Sleeve

1700079

$9.59

Sleeve

1700079

$9.59

Nut, Spring Retainer

1700033

$23.81

Bushing

1700072

$9.59

Bumper, Comp.

1700042

Unavailable

Asm., Cylinder Head

1700007

$106.49

Nut

1700057

$9.59

Screw, Valve

1700056

$6.94

Pressure Valve O-Ring

1700047

$7.13

Asm., Pressure Valve

1700076

Unavailable

IFP

1700023

$45.59

IFP, Band, Wear

1700032

$24.99

IFP, O-Ring

1700048

$11.60

Washer, Back-Up

1700078

$9.59

Piston, Band, Wear

1700031

$28.32

Washer, Top-Out

1700077

$10.39

Banded, Piston

1700108

$30.55

Shaft

1700194

Unavailable

Seal, Cap

1700022

Unavailable

Seal, Rod

1700021

$20.22

Mount, Upper

1700010

Unavailable
