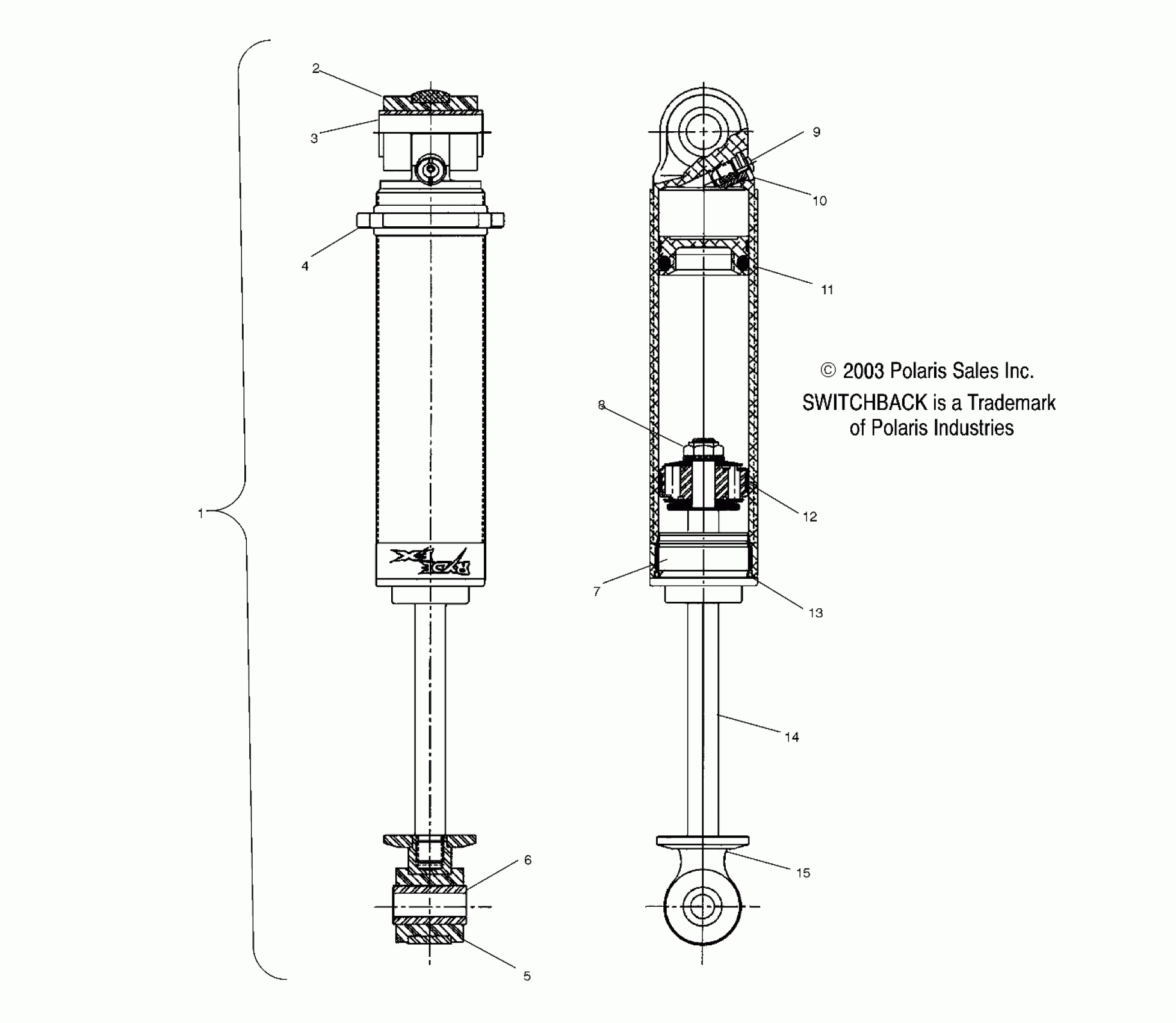

Polaris 600/700/800 SWITCHBACK - S04NS6ES SHOCK (FRONT TRACK) - S04NS6ES/A/B/C/D-S04NS7CS/A/B/C/D-S04NS8CS/A/B/C/D (4988378837C05) Diagram

#

Description
Price

1

Shock, Front Track, IFP

7042084

Unavailable

2

Bushing

1700074

Unavailable

3

Sleeve

1700161

Unavailable

4

Nut, Spring Retainer

1700033

$23.81

5

Bushing

1700036

$7.99

6

Sleeve

1700157

$11.99

7

Asm., Cylinder Head

1700156

$74.99

8

Nut

1700057

$9.59

9

Screw, Valve

1700056

$6.94

10

Pressure Valve O-Ring

1700047

$7.13

10

Asm., Pressure Valve

1700076

Unavailable

11

IFP

1700023

$45.59

11

IFP, Band, Wear

1700032

$24.99

11

IFP, O-Ring

1700048

$11.60

12

Washer, Back-Up

1700078

$9.59

12

Piston, Band, Wear

1700031

$28.32

12

Washer, Top-Out

1700077

$10.39

12

Banded, Piston

1700103

Unavailable

13

Cylinder, Head O-Ring

1700051

Unavailable

14

Shaft

1700182

$60.70

15

Mount, Upper

1700011

$56.65
