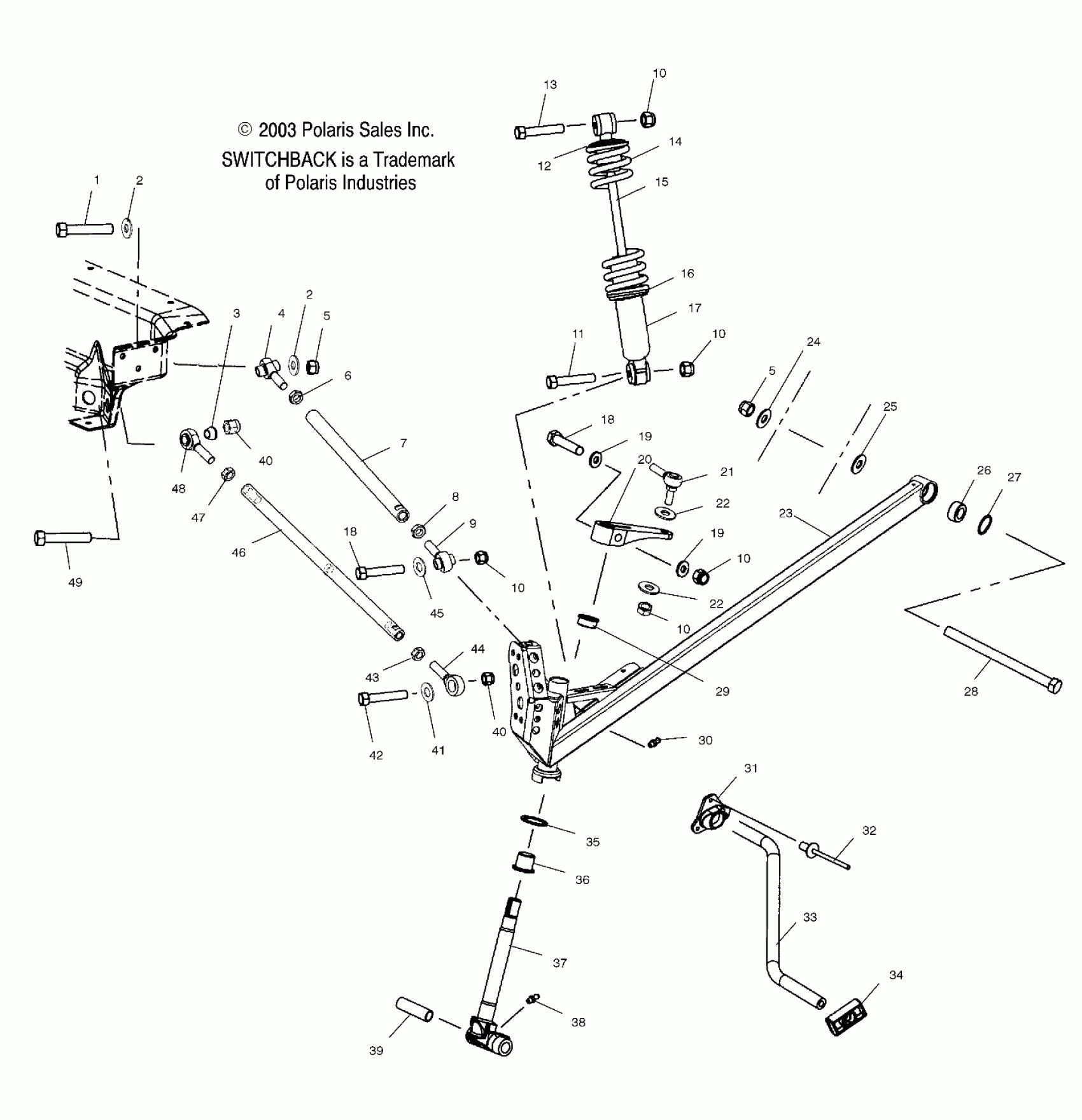

Polaris 600/700/800 SWITCHBACK - S04NS6ES FRONT SUSPENSION - S04NS6ES/A/B/C/D-S04NS7CS/A/B/C/D-S04NS8CS/A/B/C/D (4988378837B01) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

WASHER

7556212

$8.79

2

WASHER

7556212

$8.79

3

Bushing, Spacer

5132454

Unavailable

4

Rod End, Radius LH

7061081

Unavailable

5

NUT, NYLON

7547066

$1.59

5

NUT, NYLON

7547066

$1.59

6

Nut, Jam, LH

7547117

Unavailable

7

Tube, Radius Rod, Upper, Cld Slv

5133487-385

Unavailable

8

Nut, Jam

7542520

$2.39

9

Rod End, Radius

7061061

$48.56

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

10

Nut, Nylok

7542439

$1.49

11

Screw

7515433

$1.59

12

Retainer, Spring, Slotted

5630580

Unavailable

13

Screw

7515415

$1.49

14

Spring, Compression

7041576-067

$43.99

15

Shock, IFS, Arvin, IFP

7042147

Unavailable

16

Ring, Spring Preload

5431734

$52.60

17

RETAINER, SPRING, BODY, THREADED

1500063

$44.51

18

SCREW

7517583

$4.35

18

SCREW

7517583

$4.35

19

WSHR-.813X.406X.105-Y

7555832

$2.39

19

WSHR-.813X.406X.105-Y

7555832

$2.39

20

Arm, Steering

5133060

$70.39

21

Rod End, RH

7061086

$48.56

22

Washer, Flat

7555797

$3.99

22

Washer, Flat

7555797

$3.99

23

Asm., Trailing Arm, Slv, LH [Incl. 26,27]

1821201-385

$239.19

23

Asm., Trailing Arm, Slv, RH [Incl. 26,27]

1821202-385

$279.27

24

WASHER, FLAT

7555820

$3.99

25

Cup, Mount, Trailing Arm

5132364

$20.22

26

Bearing, Spherical

7061042

$31.99

27

Ring, Retaining

7710437

$3.19

28

Screw

7512099

$19.99

29

BUSHING, FLANGE

3573909

$2.39

30

Fitting, Lubrication

7080433

$1.49

31

Bushing, Torsion Bar

5433814

$23.99

32

Rivet

7621452

$1.49

33

Bar, Torsion

5246343-067

Unavailable

34

Slide, Torsion Bar

5434371

$24.27

35

Bushing

7556509

$1.59

36

BUSHING, FLANGED

3574208

$3.19

37

Shaft w/Steering Stop, Spindle

6230225-067

$219.99

38

Fitting, Lubrication, w/Ball

7080306

$3.19

39

Bushing

5010158

$19.99

40

Nut, Nylon

7547216

Unavailable

40

Nut, Nylon

7547216

Unavailable

41

Washer

7556213

$3.17

42

Bolt

7517906

Unavailable

43

Nut, Jam

7542711

$2.39

44

Rod End, Radius, RH, Lower

7061052

$48.56

45

WASHER

7556153

$1.99

46

Tube, Radius Rod, Lower

5133555

Unavailable

47

Nut, Jam

7547028

$2.39

48

Rod End, Radius, LH, Lower

7061087

$144.99

49

Bolt

7518041

$6.23
