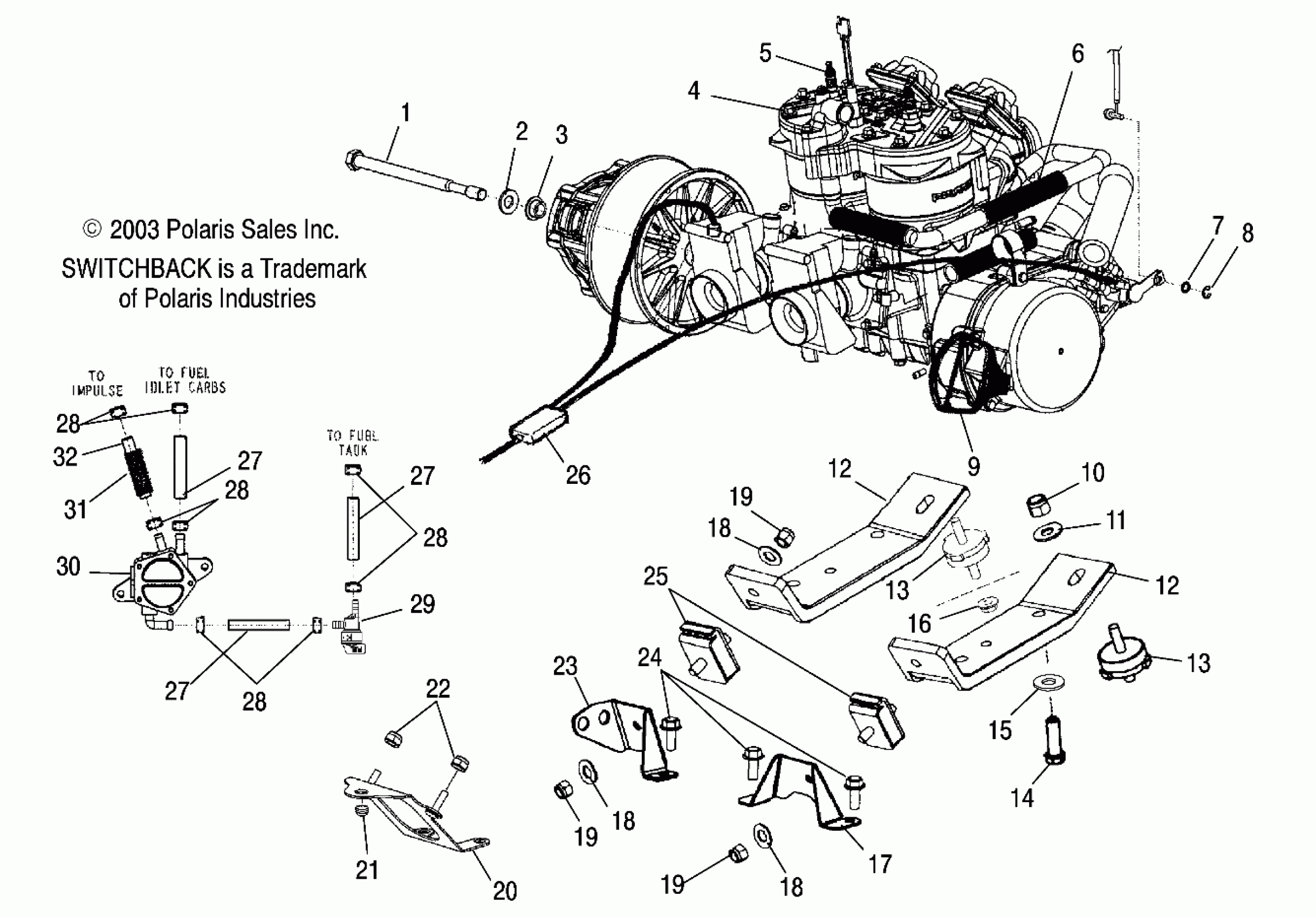

Polaris 600/700/800 SWITCHBACK - S04NS6ES ENGINE MOUNTING (700)(800) - S04NS7CS/A/B/C/D-S04NS8CS/A/B/C/D (4988378837C08) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER-CLUTCH RET,M14 [800]

5132441

$23.99

3

Washer, Clutch Retainer [700]

5131872

Unavailable

4

Kit, Short Block, S707003 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for

2202518

Unavailable

4

Kit, Short Block, S707003 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for

2202512

Unavailable

5

Spark Plug, RN57YCC, Champion

3070190

$3.99

6

Conduit

5521398-13

Unavailable

7

Washer, Nylon

7555944

$3.99

8

E-Ring

7710427

Unavailable

9

Handle, Recoil

5431499-070

$15.48

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer, Flat

7555893

$1.49

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5246381

$32.15

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5246381

$32.15

13

Mount, Engine

3021220

Unavailable

13

Mount, Engine

3021220

Unavailable

14

Screw

7512539

$3.99

15

Washer, Spring Lock

7553101

$3.99

16

Nut, Flanged, Nylon

7547180

$2.39

17

Bracket, Engine Mount, RH

5245044

Unavailable

18

Washer, Flat

7555806

$1.49

18

Washer, Flat

7555806

$1.49

18

Washer, Flat

7555806

$1.49

19

NUT, FLEXLOC

7547008

$6.39

19

NUT, FLEXLOC

7547008

$6.39

19

NUT, FLEXLOC

7547008

$6.39

20

Bracket, Pump, Fuel

1014392

$12.39

21

Plug, Rubber

5410012

Unavailable

22

Nut, Nylok

7542122

$1.49

23

Bracket, Engine Mount, LH

1013397

$24.27

24

Screw

7517854

$5.59

25

Mount, Engine

3021206

$60.70

26

Cable, Throttle

7081083

$64.75

27

Line, Fuel

8350017-600

Unavailable

27

Line, Fuel

8350017-600

Unavailable

27

Line, Fuel

8350017-600

Unavailable

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

29

Asm., Valve, Fuel Plastic

1253424

$44.99

30

Pump, Fuel

2520275

$111.99

31

Tubing, Convoluted

8360052-15

Unavailable

32

Line, Fuel

8450040-600

Unavailable
