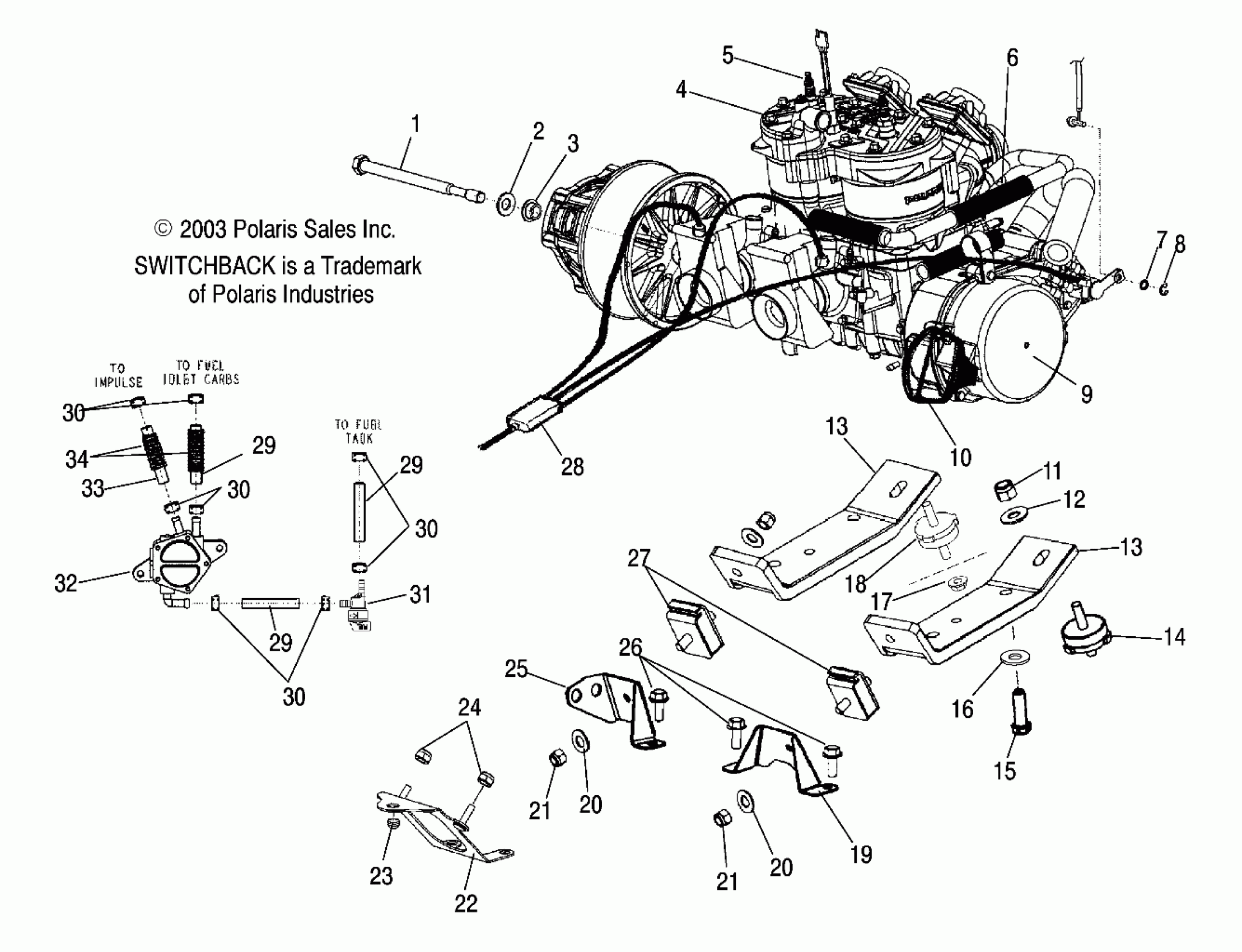

Polaris 600/700/800 SWITCHBACK - S04NS6ES ENGINE MOUNTING (600) - S04NS6ES/A/B/C/D (4988378837C07) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER, CLUTCH RETAINER

5131872

Unavailable

4

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty

2202256

Unavailable

5

Spark Plug, RN57YCC, Champion

3070190

$3.99

6

Conduit

5521398-13

Unavailable

7

Washer, Nylon

7555944

$3.99

8

E-Ring

7710427

Unavailable

9

Foil, Tape

5811485

$3.49

10

Handle, Recoil

5431499-070

$15.48

11

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

12

Washer, Flat

7555893

$1.49

13

Strap, Engine Mount, LH

5245465

$74.39

13

Strap, Engine Mount, RH

5246382

$257.99

13

Strap, Engine Mount, LH

5245465

$74.39

13

Strap, Engine Mount, RH

5246382

$257.99

14

Mount, Engine

3021290

Unavailable

15

Screw

7512539

$3.99

16

Washer, Spring Lock

7553101

$3.99

17

NUT, FLANGED

7547180

$2.39

18

Mount, Engine

3021220

Unavailable

19

Bracket, Engine Mount, RH

5245044

Unavailable

20

Washer, Flat

7555806

$1.49

20

Washer, Flat

7555806

$1.49

21

NUT, FLEXLOC

7547008

$6.39

21

NUT, FLEXLOC

7547008

$6.39

22

Bracket, Pump, Fuel

1014392

$12.39

23

Plug, Rubber

5410012

Unavailable

24

Nut, Nylok

7542122

$1.49

25

Bracket, Engine Mount, LH

1013397

$24.27

26

Screw

7517854

$5.59

27

Mount, Engine

3021206

$60.70

28

Cable, Throttle

7081128

Unavailable

29

Line, Fuel

8350017-600

Unavailable

29

Line, Fuel

8350017-600

Unavailable

29

Line, Fuel

8350017-600

Unavailable

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

31

Asm., Valve, Fuel, Plastic

1253424

$44.99

32

Pump, Fuel

2520275

$111.99

33

Line, Fuel

8450040-600

Unavailable

34

TUBING, CONVOLUTED

8360052-25

Unavailable
