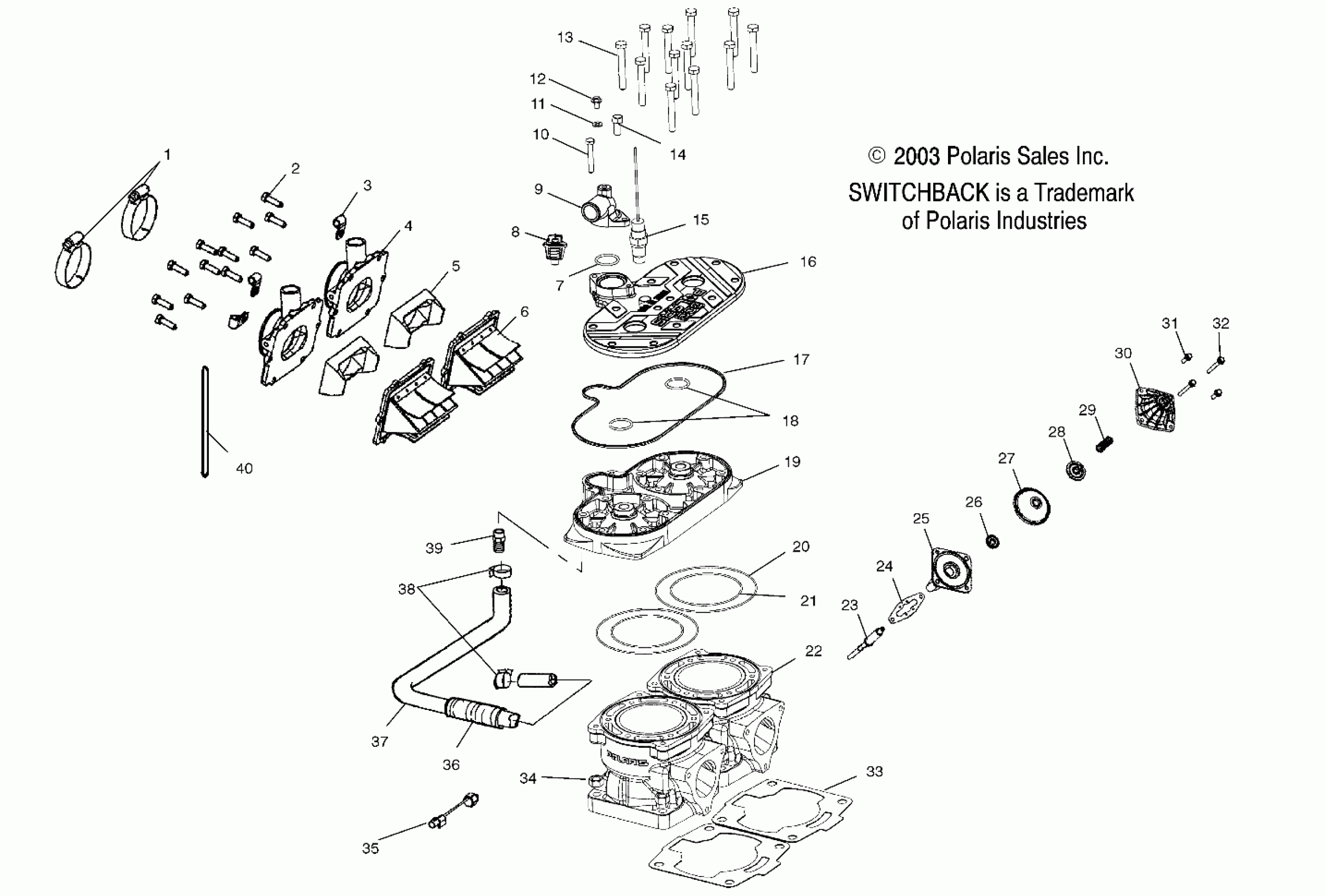

Polaris 600/700/800 SWITCHBACK - S04NS6ES CYLINDER (800) - S04NS8CS/A/B/C/D (4988378837D13) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carb

1253327

$104.99

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

7

O-Ring

5411521

$24.19

8

Thermostat w/o Bypass

7052258

$48.56

9

Cover, Thermostat

5631391

Unavailable

10

Screw

7517950

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW, BLEED

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Temperature

4010398

$36.41

16

Cover, Head

5631427-329

$115.99

17

Seal, Rubber, Head

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021426

Unavailable

20

O-Ring

5412232

$7.99

21

O-Ring

5411675

$29.03

22

Cylinder

3021339

Unavailable

23

Valve, Guillotine

5133775

$179.99

24

Gasket, Base to Cyl. Exh. Valve

5812350

$6.46

25

Asm., Base Exh. Valve Dome

1202216

Unavailable

26

Washer, Bellows, Exh., Valve, Dome

5132950

Unavailable

27

Bellows, Exhaust Valve

5412399

$44.51

28

Cap/Nut Bellows, Exh., Valve, Dome

5631381

$33.87

29

Spring, Comp

7041786-11

Unavailable

30

Asm., EV Housing w/Bushing

1202640

$15.99

31

SCREW

7516820

$5.59

32

SCREW

7517932

$3.99

33

Gasket, Cylinder Base

5812363

$14.99

34

NUT

7547013

$1.99

35

SCREW

7517262

$5.59

35

SENSOR, DETONATION

2410369

$76.89

36

Conduit

5521398-96

Unavailable

37

Hose, Bypass

5411536

Unavailable

38

Clamp, Bypass

7081030

$6.39

39

Fitting

7052234

$39.99

40

Retainer

7080654

$18.32
