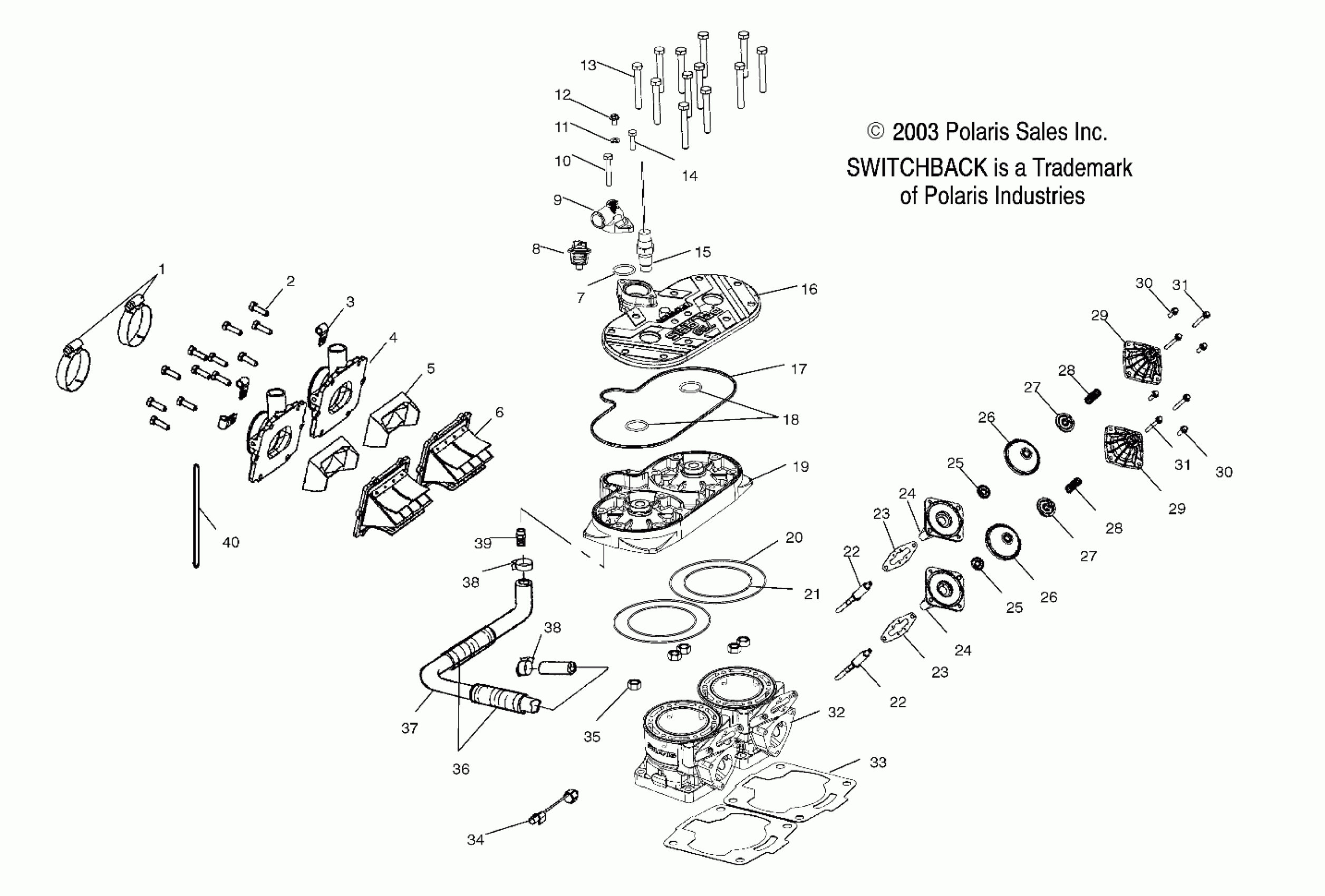

Polaris 600/700/800 SWITCHBACK - S04NS6ES CYLINDER (700) - S04NS7CS/A/B/C/D (4988378837D05) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carb

1253327

$104.99

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

7

O-Ring

5411521

$24.19

8

Thermostat w/o Bypass

7052258

$48.56

9

Cover, Thermostat

5631391

Unavailable

10

Screw

7517950

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW, BLEED

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Temperature

4010398

$36.41

16

Cover, Head

5631426-366

Unavailable

17

Seal, Rubber, Head

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021424

$236.17

20

O-Ring

5412232

$7.99

21

O-RING

5410932

$20.22

22

Valve, Guillotine

5133743

$154.99

22

Valve, Guillotine

5133743

$154.99

23

Gasket, Base to Cyl. Exh. Valve

5812350

$6.46

23

Gasket, Base to Cyl. Exh. Valve

5812350

$6.46

24

Asm., Base Exh. Valve Dome

1202216

Unavailable

24

Asm., Base Exh. Valve Dome

1202216

Unavailable

25

Washer, Bellows, Exh., Valve, Dome

5132950

Unavailable

25

Washer, Bellows, Exh., Valve, Dome

5132950

Unavailable

26

Bellows, Exhaust Valve

5412399

$44.51

26

Bellows, Exhaust Valve

5412399

$44.51

27

Cap/Nut Bellows, Exh., Valve, Dome

5631381

$33.87

27

Cap/Nut Bellows, Exh., Valve, Dome

5631381

$33.87

28

Spring, Comp

7041786-08

Unavailable

28

Spring, Comp

7041786-08

Unavailable

29

Asm., EV Housing w/Bushing

1202640

$15.99

29

Asm., EV Housing w/Bushing

1202640

$15.99

30

SCREW

7516820

$5.59

30

SCREW

7516820

$5.59

31

SCREW

7517932

$3.99

31

SCREW

7517932

$3.99

32

Cylinder

3021367

Unavailable

33

Gasket, Cylinder Base

5812362

$12.13

34

SCREW

7517262

$5.59

34

SENSOR, DETONATION

2410369

$76.89

35

NUT

7547013

$1.99

36

Conduit

5521398-96

Unavailable

37

Hose, Bypass

5411536

Unavailable

38

Clamp, Bypass

7081030

$6.39

38

Clamp, Bypass

7081030

$6.39

39

Fitting

7052234

$39.99

40

Retainer

7080654

$18.32
