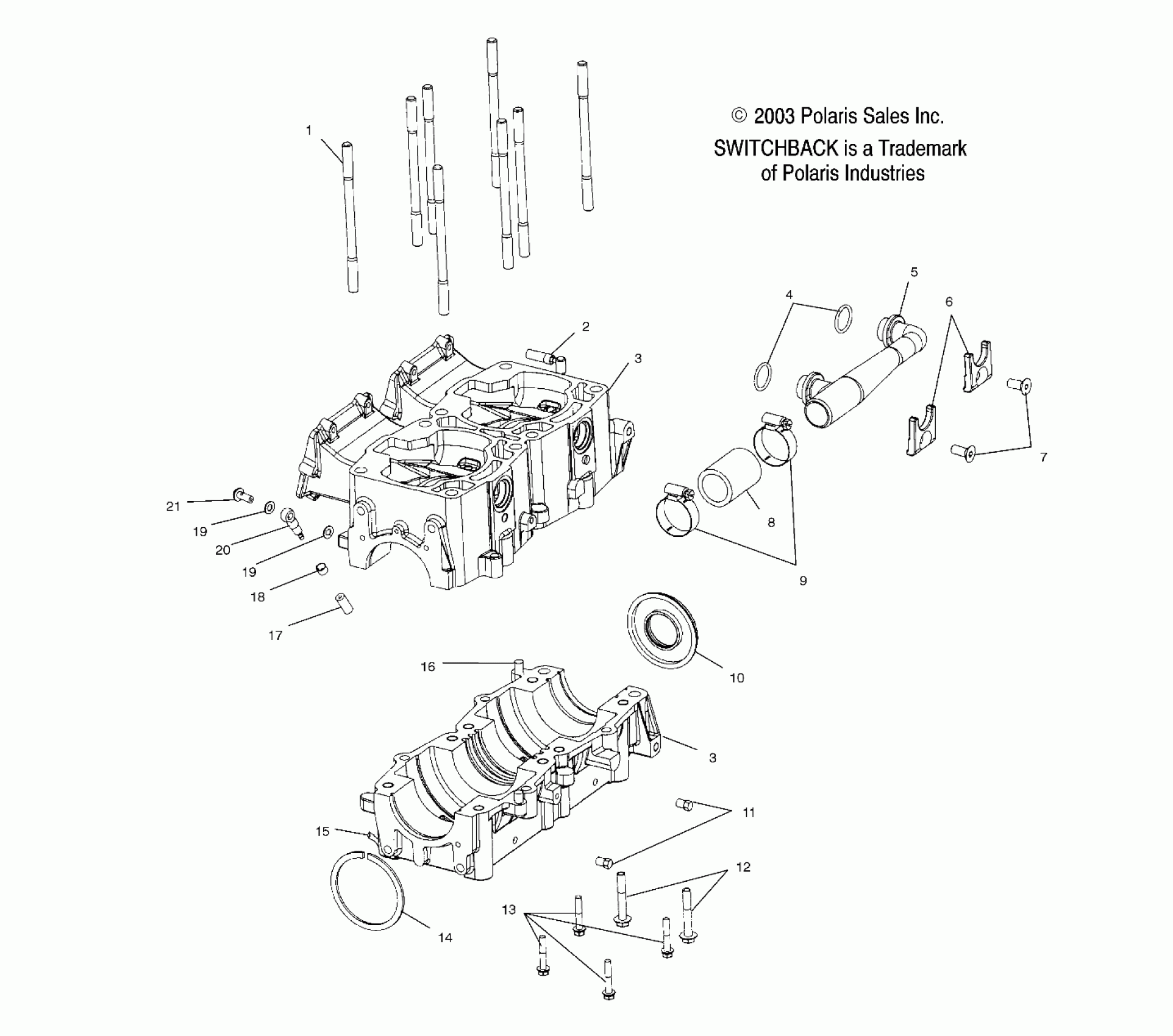

Polaris 600/700/800 SWITCHBACK - S04NS6ES CRANKCASE (800) - S04NS8CS/A/B/C/D (4988378837D12) Diagram

#

Description
Price

1

Stud, Cylinder, Flange

5131677

Unavailable

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

3

Kit, Crankcase [Incl. 1,5,14,15,18]

2202336

Unavailable

3

Kit, Crankcase [Incl. 1,5,14,15,18]

2202336

Unavailable

4

O-Ring

5411125

Unavailable

5

Manifold, Water, Inlet

5630610

$49.59

6

Retainer, Inlet Water, Manifold

5243431

$14.75

7

Screw

7516736

Unavailable

8

Hose

8450068-04

Unavailable

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

10

Seal, Flange, w/Standoff

5411394

$29.99

11

Plug

7051529

$15.99

12

Screw

7516919

Unavailable

13

SCREW

7516732

$1.59

14

Ring, Retaining

7710441

Unavailable

15

Fitting

7052322

Unavailable

16

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

17

LINE, FUEL

8450061-600

Unavailable

18

Clamp

7080603

$1.59

19

WASHER, FLAT

7555998

$1.49

19

WASHER, FLAT

7555998

$1.49

20

Valve, Check, Oil Pump

7052160

Unavailable

21

Screw

7517319

$19.99
