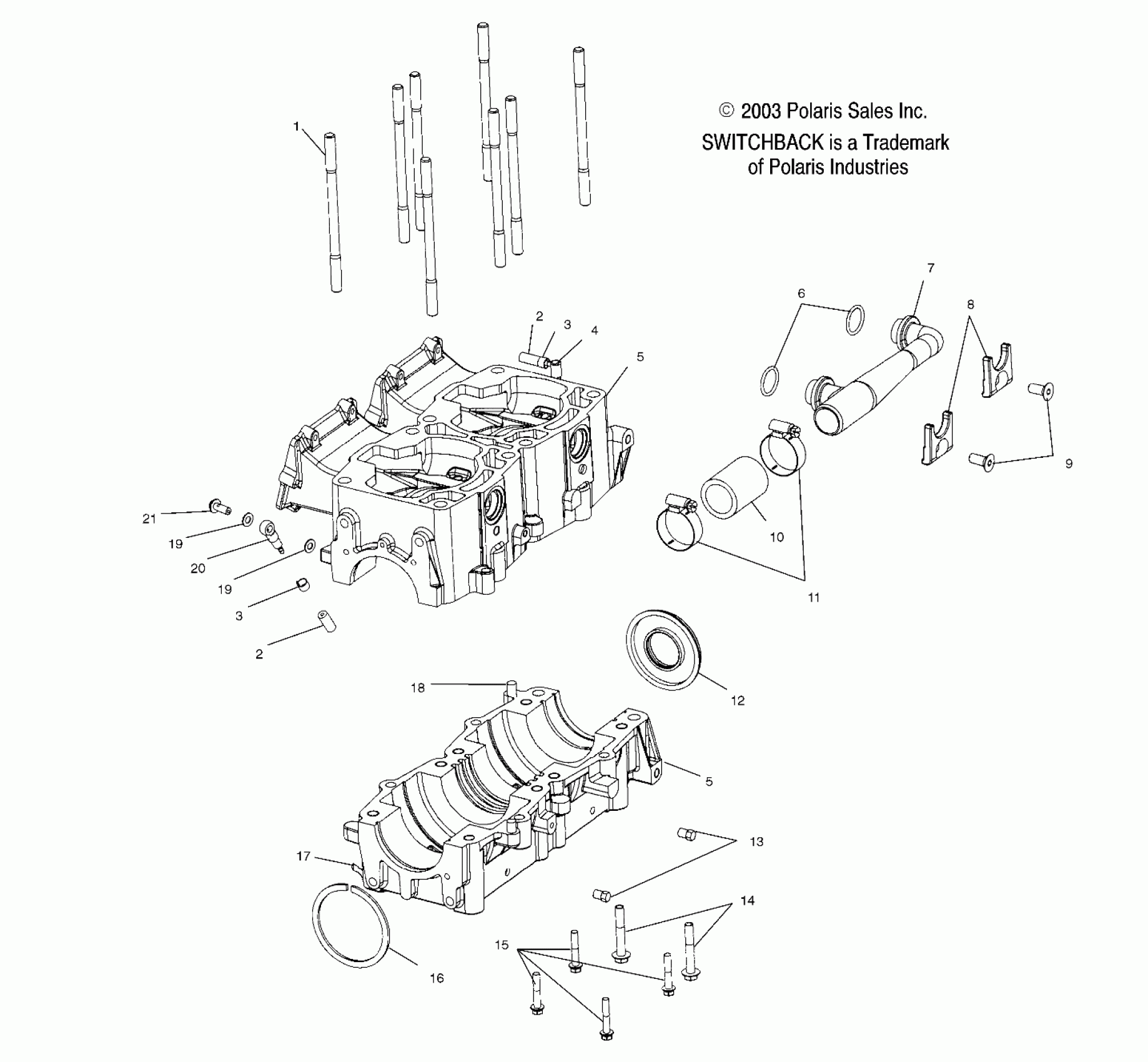

Polaris 600/700/800 SWITCHBACK - S04NS6ES CRANKCASE (700) - S04NS7CS/A/B/C/D (4988378837D04) Diagram

#

Description
Price

1

Stud, Cylinder, Flange

5131677

Unavailable

2

LINE, FUEL

8450061-600

Unavailable

2

LINE, FUEL

8450061-600

Unavailable

3

Clamp

7080603

$1.59

3

Clamp

7080603

$1.59

4

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

5

Kit - Crankcase [Incl. 1,5,14,15,18]

2202233

$764.99

5

Kit - Crankcase [Incl. 1,5,14,15,18]

2202233

$764.99

6

O-Ring

5411125

Unavailable

7

Manifold, Water ,Inlet

5630610

$49.59

8

Retainer, Inlet Water, Manifold

5243431

$14.75

9

Screw

7516736

Unavailable

10

Hose

8450068-04

Unavailable

11

CLAMP-HOSE, 1.750-SS

7080560

$11.19

12

Seal, Flanged w/Standoff

5411394

$29.99

13

Plug

7051529

$15.99

14

Screw

7516919

Unavailable

15

SCREW

7516732

$1.59

16

Ring, Retaining

7710441

Unavailable

17

Fitting, 45 Degree

7052322

Unavailable

18

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

19

WASHER, FLAT

7555998

$1.49

19

WASHER, FLAT

7555998

$1.49

20

Valve, Check, Oil Pump

7052160

Unavailable

21

Screw

7517319

$19.99
