Description

Price

1

Asm., Carburetor

1253504

Unavailable

2

Screw

3130951

$3.99

2

Screw

3130951

$3.99

3

Cap, Top

3130872

Unavailable

4

Gasket

3130871

$20.22

5

Screw

3130844

$3.99

6

Washer, Packing

3130846

$4.79

6

Washer, Packing

3130846

$4.79

7

Clip

3130856

$8.79

7

Clip

3130856

$8.79

8

Ring

3130845

$8.89

8

Ring

3130845

$8.89

9

Plate

3130857

$7.27

9

Plate

3130857

$7.27

10

E-Ring

3130847

$8.89

10

E-Ring

3130847

$8.89

11

Cap, Rubber, Starter

3130831

$7.27

12

Holder, Guide, Starter

3130830

$32.37

13

Spring, Starter

3130829

$12.94

14

Asm., Plunger

3130828

$32.37

15

Valve, Piston [2.0]

3131252

$134.99

16

Needle, Jet

3131438

$32.37

17

Packing

3130867

$5.65

18

E-Ring

3130868

$8.89

19

Plate

3130843

$8.89

20

Asm., Lever, LH

3130855

$64.75

20

Asm., Lever, RH

3130849

$64.75

21

Ring

3130848

$32.37

22

Screw, LH

3130854

$3.19

23

Screw, RH

3130850

$4.79

24

Screw, Air Funnel

3130825

$3.19

25

Asm., Funnel

3131439

$61.90

26

O-Ring, Air Funnel, Long

3131356

$16.17

27

Spring

3131371

Unavailable

28

Screw, Air

3131336

Unavailable

29

O-Ring

3130522

$5.65

30

Washer

3131372

$5.59

31

Jet, Main [470]

3130147

$7.27

32

Screw, Valve Seat

3130860

$8.79

33

Bolt, Drain

3131248

Unavailable

34

O-Ring, Drain Screw

3130863

$2.41

35

Screw, Float Bowl

3130824

$3.19

36

Body, Float

3130858

$119.99

37

O-Ring, Float Bowl

3130861

$12.13

38

Asm., Float

3131231

$134.99

39

Jet, Pilot [45]

3130068

$8.89

40

Jet, Starter [145]

3130769

$8.89

41

Washer

3130837

$3.19

41

Washer

3130837

$3.19

42

SPRING

3130836

$7.27

43

Adjuster

3130987

$20.22

44

Cap

3130986

$9.70

45

Screw [MAG Side]

3131010

$4.79

46

Asm., Sensor Throttle Position [MAG Side]

3131009

$259.03

47

CAP

3130479

$14.56

48

Packing

3130835

$2.41

49

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

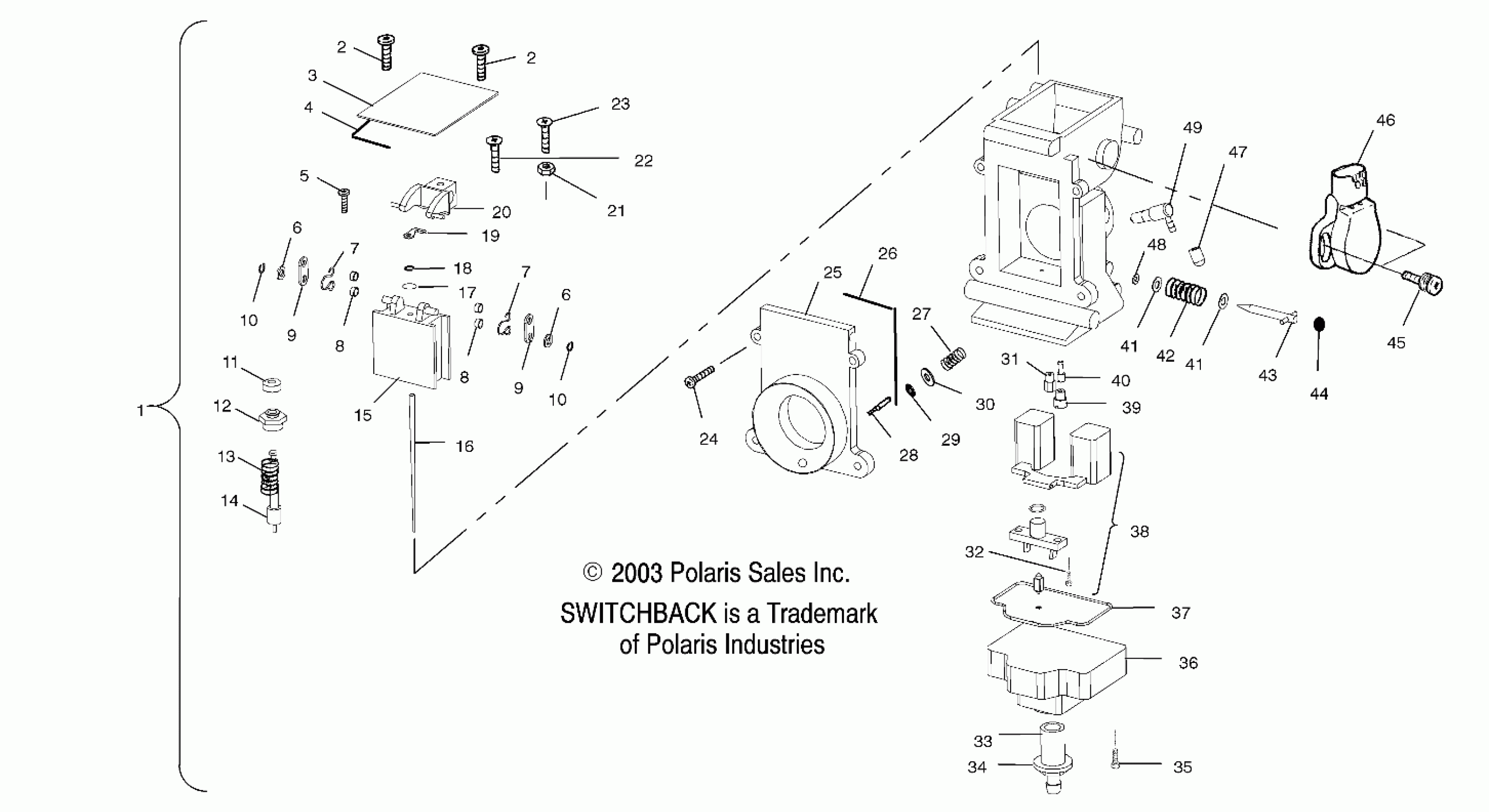

Polaris 600/700/800 SWITCHBACK - S04NS6ES CARBURETOR (800) - S04NS8CS/A/B/C/D (4988378837E01) Diagram

Asm., Carburetor

Screw

Screw

Cap, Top

Gasket

Screw

Washer, Packing

Washer, Packing

Clip

Clip

Ring

Ring

Plate

Plate

E-Ring

E-Ring

Cap, Rubber, Starter

Holder, Guide, Starter

Spring, Starter

Asm., Plunger

Valve, Piston [2.0]

Needle, Jet

Packing

E-Ring

Plate

Asm., Lever, LH

Asm., Lever, RH

Ring

Screw, LH

Screw, RH

Screw, Air Funnel

Asm., Funnel

O-Ring, Air Funnel, Long

Spring

Screw, Air

O-Ring

Washer

Jet, Main [470]

Screw, Valve Seat

Bolt, Drain

O-Ring, Drain Screw

Screw, Float Bowl

Body, Float

O-Ring, Float Bowl

Asm., Float

Jet, Pilot [45]

Jet, Starter [145]

Washer

Washer

SPRING

Adjuster

Cap

Screw [MAG Side]

Asm., Sensor Throttle Position [MAG Side]

CAP

Packing

VALVE-CHECK,90,1/8"7MM BORE
