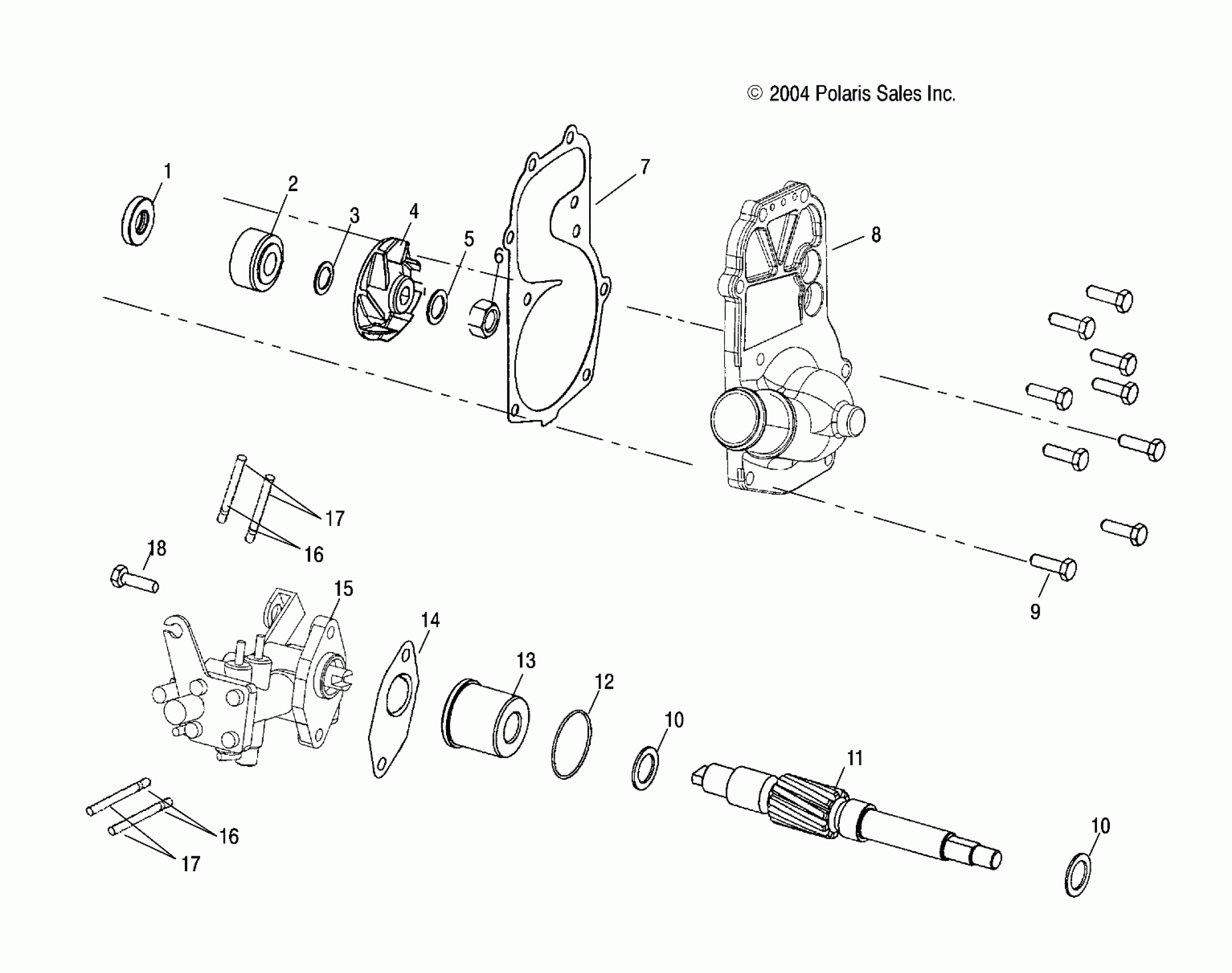

Polaris 600/700/800 RMK F/O - S05NK6ES WATER PUMP/OIL PUMP (600) - S05NK6ES/A (4992789278C13) Diagram

#

Description
Price

1

SEAL

5411197

$24.27

2

Seal, Waterpump

3610067

$44.51

3

Washer, Flat

7556006

$3.99

4

Impeller, Waterpump

5432330

$23.99

5

Washer, Flat

7555874

$2.39

6

Nut, Hex, Nylok

7546804

$1.49

7

Gasket, Waterpump Cover

5811601

$20.22

8

Cover, Waterpump

5630920

Unavailable

9

SCREW

7516822

$2.39

10

WASHER, THRUST

7555977

$7.19

10

WASHER, THRUST

7555977

$7.19

11

Gear, Cross Shaft

5133688

$165.94

12

O-Ring

5411196

$3.22

13

Bearing, Pump Shaft, Flanged

5010391

Unavailable

14

Gasket, Oil Pump

5811789

$12.94

15

Asm., Pump, Oil

2540117

Unavailable

16

Clamp

7080603

$1.59

16

Clamp

7080603

$1.59

17

LINE, FUEL

8450061-600

Unavailable

17

LINE, FUEL

8450061-600

Unavailable

18

SCREW

7517277

$3.19
