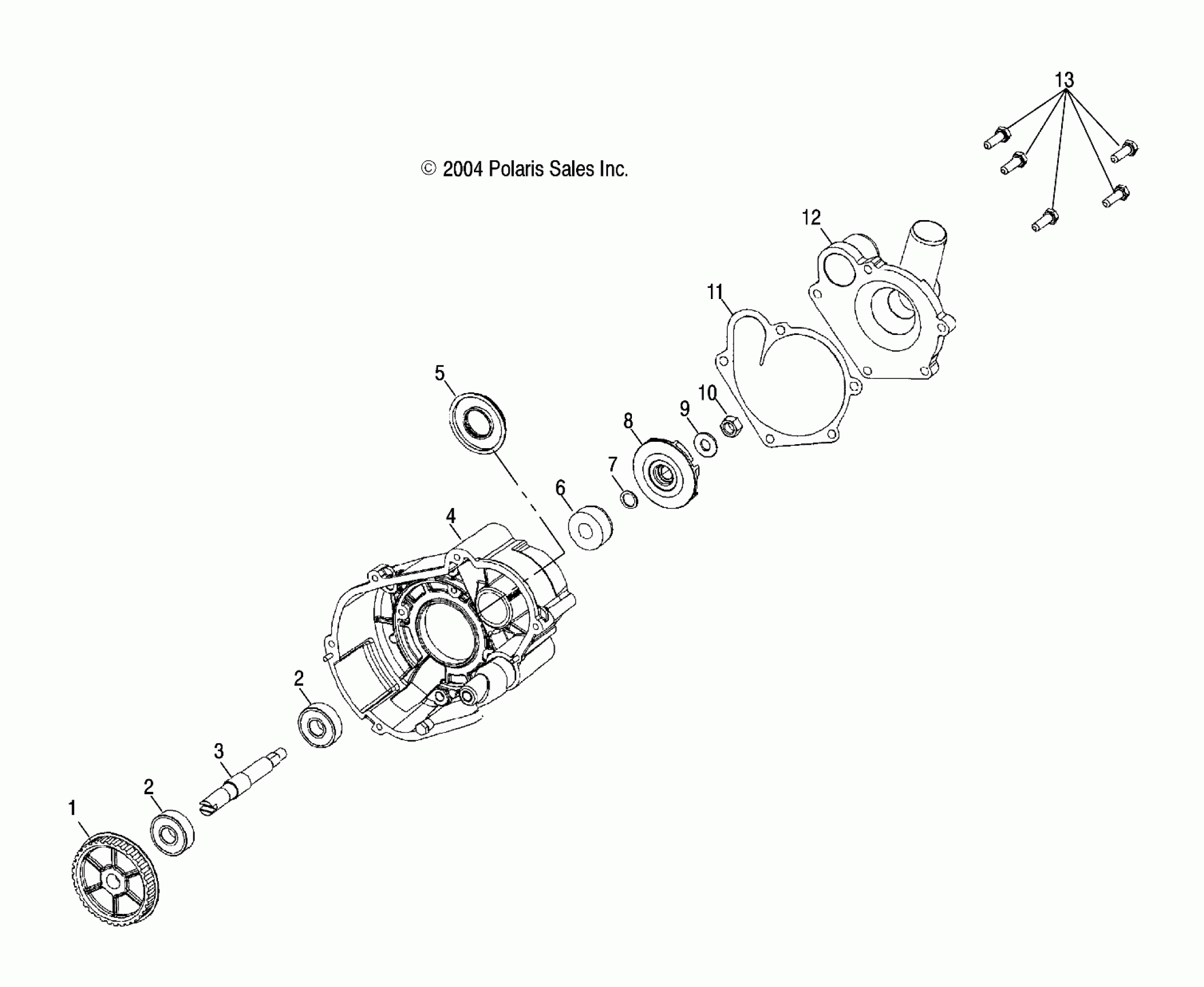

Polaris 600/700/800 RMK F/O - S05NK6ES WATER PUMP (700/800) - S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278D07) Diagram

#

Description
Price

1

Pulley, Waterpump Driven

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

2

Bearing, Ball

3514311

Unavailable

3

Shaft, Water Pump

5132273

$94.99

4

ASM., HOUSING, IGNITION [SEE MAGNETO [700][800] PG. D12, REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Water Pump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller, Water Pump

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

Nut, Hex, Nylok

7546804

$1.49

11

Gasket, Water Pump, Cover

5811627

$8.89

12

Cover, Water Pump

5631280

Unavailable

13

SCREW

7516822

$2.39
