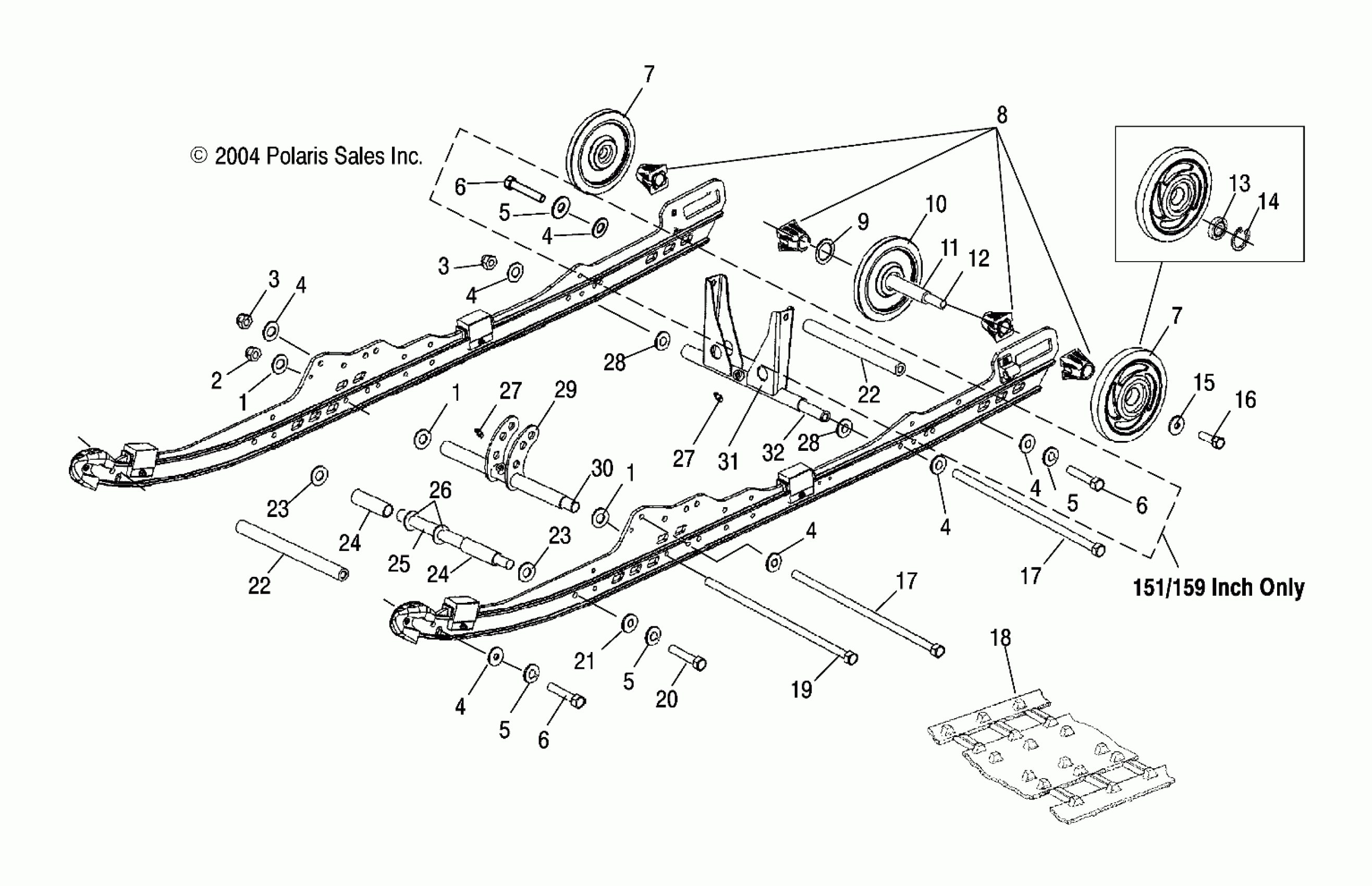

Polaris 600/700/800 RMK F/O - S05NK6ES SUSPENSION - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B09) Diagram

#

Description
Price

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

2

Nut, Nylok

7547217

$3.99

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

6

Screw

7517247

$3.19

6

Screw

7517247

$3.19

6

Screw

7517247

$3.19

7

Asm., Wheel, Idler, Red [Incl. 13,14]

1590303-293

$48.56

7

Asm., Wheel, Idler, Red [Incl. 13,14]

1590303-293

$48.56

8

SPACER-IDLER

5432535

$11.99

9

BUSHING

7555918

$1.59

10

Asm., Wheel, Idler

1590334

$22.22

11

SPACER-IDLER, LONG

5333285

$11.99

12

SHAFT, IDLER

5020744

$59.99

13

BEARING

3514384

$19.84

14

RING-RETAINING

7710444

$8.79

15

WASHER

7556130

$6.39

16

BOLT

7517731

$1.49

17

SCREW

7517921

$23.99

17

SCREW

7517921

$23.99

18

Track, 151 Inch

5412241

Unavailable

18

Track, 144 Inch

5412242

$949.99

18

Track, 159 Inch

5412185

Unavailable

19

Screw

7517996

Unavailable

20

Screw

7517857

$5.59

21

WASHER

7556042

Unavailable

22

Shaft [Qty 2 for 151/159 Inch]

5020868

Unavailable

22

Shaft [Qty 2 for 151/159 Inch]

5020868

Unavailable

23

WSHR-.813X.406X.105-Y

7555832

$2.39

23

WSHR-.813X.406X.105-Y

7555832

$2.39

24

Spacer, Shock Centering

5334062

$11.99

24

Spacer, Shock Centering

5334062

$11.99

25

SHAFT

5133188

$40.46

26

WASHER

7556210

$3.99

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

28

WASHER, FLAT

7556242

$2.39

28

WASHER, FLAT

7556242

$2.39

29

Arm, Pivot, Shock

1541635-067

$67.76

30

Tube

5334042

Unavailable

31

Arm, Pivot, Rear

1541832-067

$104.99

32

TUBE

5334162

$24.27
