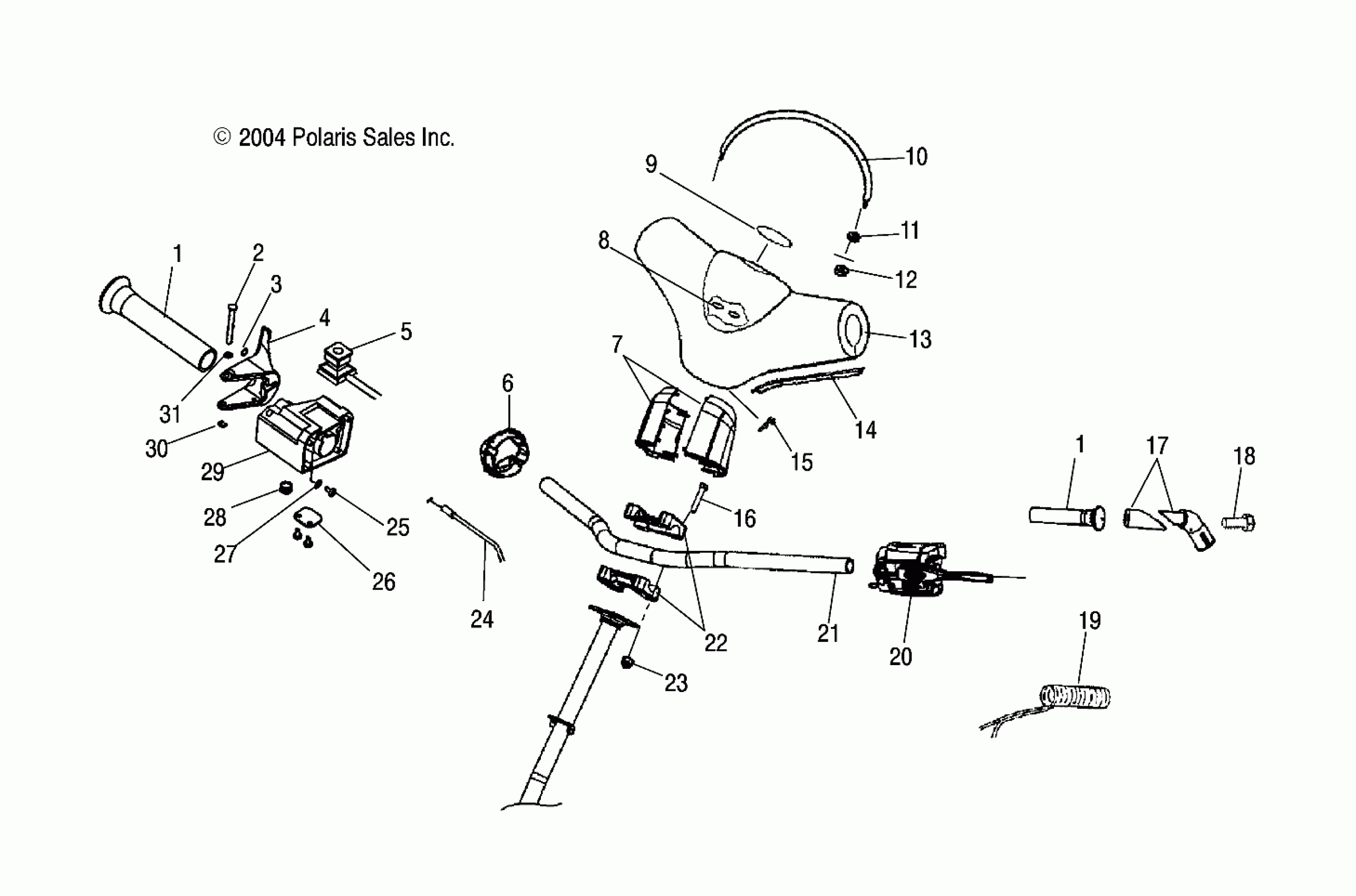

Polaris 600/700/800 RMK F/O - S05NK6ES STEERING - HANDLEBAR - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B06) Diagram

#

Description
Price

1

Grip, Handlebar, Short, Cut

5412195

Unavailable

1

Grip, Handlebar, Short, Cut

5412195

Unavailable

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off

4110106

$94.99

6

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

7

Collar, Console, LH

5434145

Unavailable

7

Collar, Console, RH

5434146

Unavailable

8

Nut, Push-On

7670106

$2.39

9

Emblem, Star

5434179

Unavailable

10

Bar, Mountain, Black

5243396-070

$76.89

11

Nut, Jam

7547107

$3.99

12

NUT, NYLOK

7542344

$3.99

13

Cover, Handlebar

5433330

Unavailable

14

Slide, Handlebar Cover

5433160-070

$28.32

15

CLIP, DART, NYLON

4010287

$3.99

16

SCREW

7517238

$4.79

17

Hook, Handlebar, 45 Degree, Black

2872482-070

$39.99

18

SCREW, SOCKET HEAD

7517834

$7.19

19

Heater, Grip, Lo/Med/Hi

2461027

Unavailable

20

ASM., CONTROL, LH E/R [SEE BRAKE PG. B1, REF. 13]

-------

Unavailable

21

Handlebar, Short

1821231-067

Unavailable

22

Block, Handlebar

5630187-067

$44.99

23

Nut, Nylok

7542122

$1.49

24

Cable, Throttle

7081128

Unavailable

25

Screw

7511848

$3.99

26

HOLDER, WIRE

5432261

$24.27

27

WASHER

7555727

$1.49

28

SCREW, SET

7512465

$3.99

29

BLOCK, THROTTLE/BRAKE

5431592

$49.99

30

RING-RETAINING EXTERNAL

7710401

$3.99

31

WASHER

7555730

$3.99
