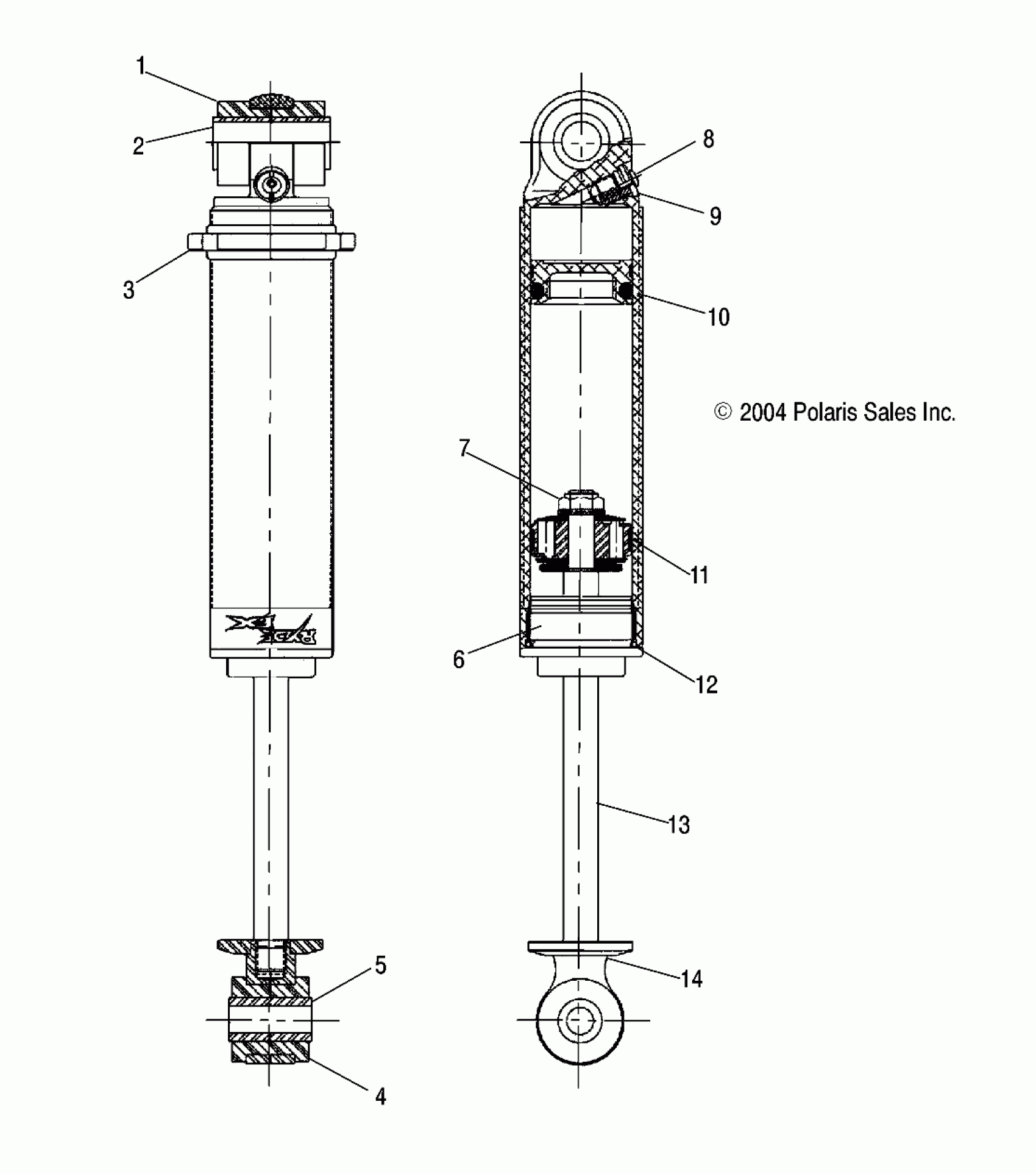

Polaris 600/700/800 RMK F/O - S05NK6ES SHOCK (FRONT TRACK) - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278C09) Diagram

#

Description
Price

-

Shock, Front Track, IFP

7042084

Unavailable

1

Bushing

1700074

Unavailable

2

Sleeve

1700161

Unavailable

3

Nut, Spring Retainer

1700033

$23.81

4

Bushing

1700036

$7.99

5

Sleeve

1700157

$11.99

6

Asm., Cylinder Head

1700156

$74.99

7

Nut

1700057

$9.59

8

Screw, Valve

1700056

$6.94

9

Pressure Valve O-Ring

1700047

$7.13

9

Asm., Pressure Valve

1700076

Unavailable

10

IFP

1700023

$45.59

10

Band, Wear, IFP

1700032

$24.99

10

O-Ring, IFP

1700048

$11.60

11

Washer, Back-Up

1700078

$9.59

11

Piston, Band, Wear

1700031

$28.32

11

Washer, Top-Out

1700077

$10.39

11

Banded, Piston

1700103

Unavailable

12

Cylinder, Head O-Ring

1700051

Unavailable

13

Shaft

1700182

$60.70

14

Mount, Upper

1700011

$56.65
