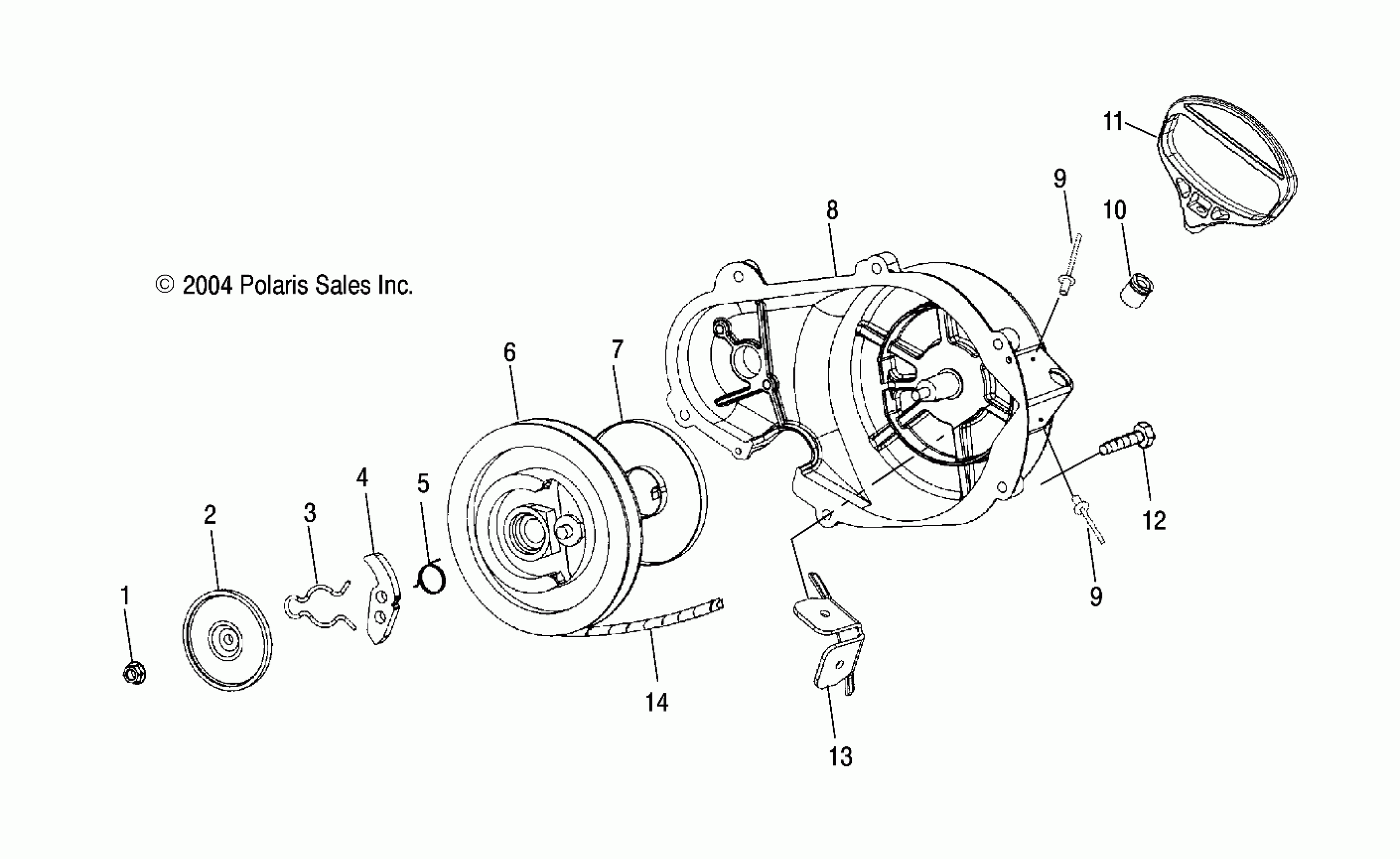

Polaris 600/700/800 RMK F/O - S05NK6ES RECOIL STARTER (700/800) - S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278D13) Diagram

#

Description
Price

-

Asm., Recoil E/R, Shield [Incl. 1-10,14 & Starting Pulley]

1202408

Unavailable

1

Nut

3040163

Unavailable

2

Plate, Friction

3040164

Unavailable

3

Spring, Friction

3040167

Unavailable

4

Ratchet, Pawl, Electric Reverse

5246108

$24.27

5

Spring, Return

3040166

Unavailable

6

Reel

3040168

$44.51

7

Spring, Spiral

3040170

Unavailable

8

Housing, Recoil Starter

3040160

Unavailable

9

Rivet

7661148

$1.27

9

Rivet

7661148

$1.27

10

BUSHING,ROPE SLIDE

3040171

$3.48

11

Handle, Recoil

5431499-070

$15.48

12

Screw

7516823

$3.19

13

Shield, Recoil Rope

5246218

$19.83

14

ROPE, STARTER

3040169

$24.27
