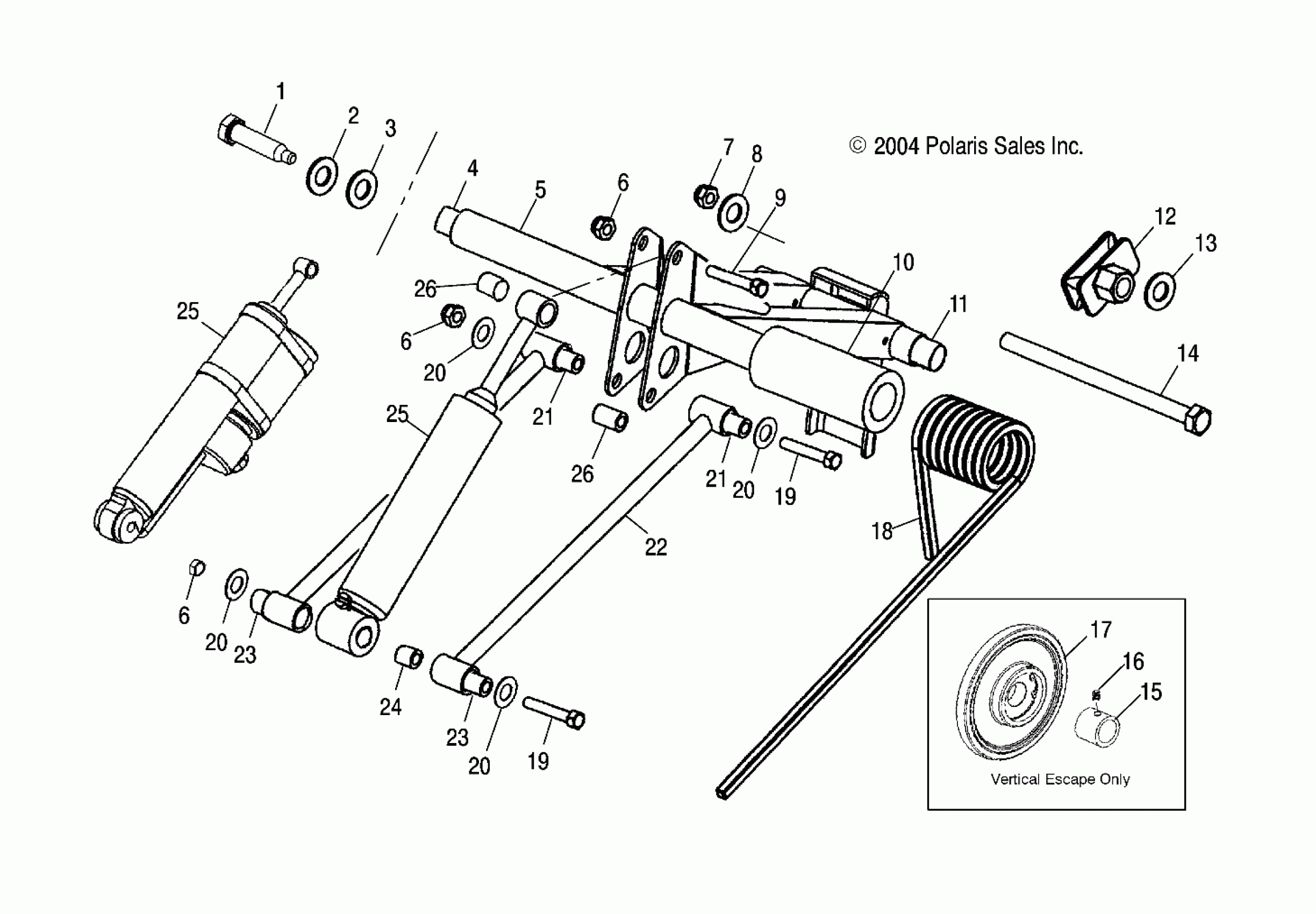

Polaris 600/700/800 RMK F/O - S05NK6ES REAR TORQUE ARM - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B12) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5020908

$69.99

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Arm, Torque, Rear Silver

1541809-385

$186.65

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

7

Nut, Nylok

7547217

$3.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

SCREW

7512410

Unavailable

10

SLEEVE-TORSION SPRING RMK

5434337

$7.99

11

SHAFT

5333997

$94.99

12

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

13

CLIP-PUSH ON

7080394

$2.39

14

SCREW

7517908

$10.39

15

Collar Bearing Lock

5133483

Unavailable

16

Screw, Socketset

7512257

$3.99

17

ASM., WHEEL BOGIE

1590328

$48.56

18

Spring, Torsion, RH, .347/47 [Opt.]

7042082-067

Unavailable

18

Spring, Torsion, LH, .359/47 [Std.]

7042068-067

Unavailable

18

Spring, Torsion, RH, .359/47 [Std.]

7042069-067

Unavailable

18

Spring, Torsion, LH, .375/47 [Opt.]

7042079-067

$113.32

18

Spring, Torsion, RH, .375/47 [Opt.]

7042080-067

$113.32

18

Spring, Torsion, LH, .347/47 [Opt.]

7042081-067

$139.99

19

Bolt

7515496

$9.59

19

Bolt

7515496

$9.59

20

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

21

Bushing

5133101

$7.99

21

Bushing

5133101

$7.99

22

Rod, Shock

1541631-067

Unavailable

23

Bushing

5132391

$7.99

23

Bushing

5132391

$7.99

24

SLEEVE

5333905

$15.99

25

Shock, Rear Track, IFP, Easy Adjust

7042176

Unavailable

25

Shock, Rear Track

7042058

$214.99

25

Shock, Rear Track, IFP, Easy Adjust

7042176

Unavailable

25

Shock, Rear Track

7042058

$214.99

26

BUSHING

5010422

$11.99

26

BUSHING

5010422

$11.99
