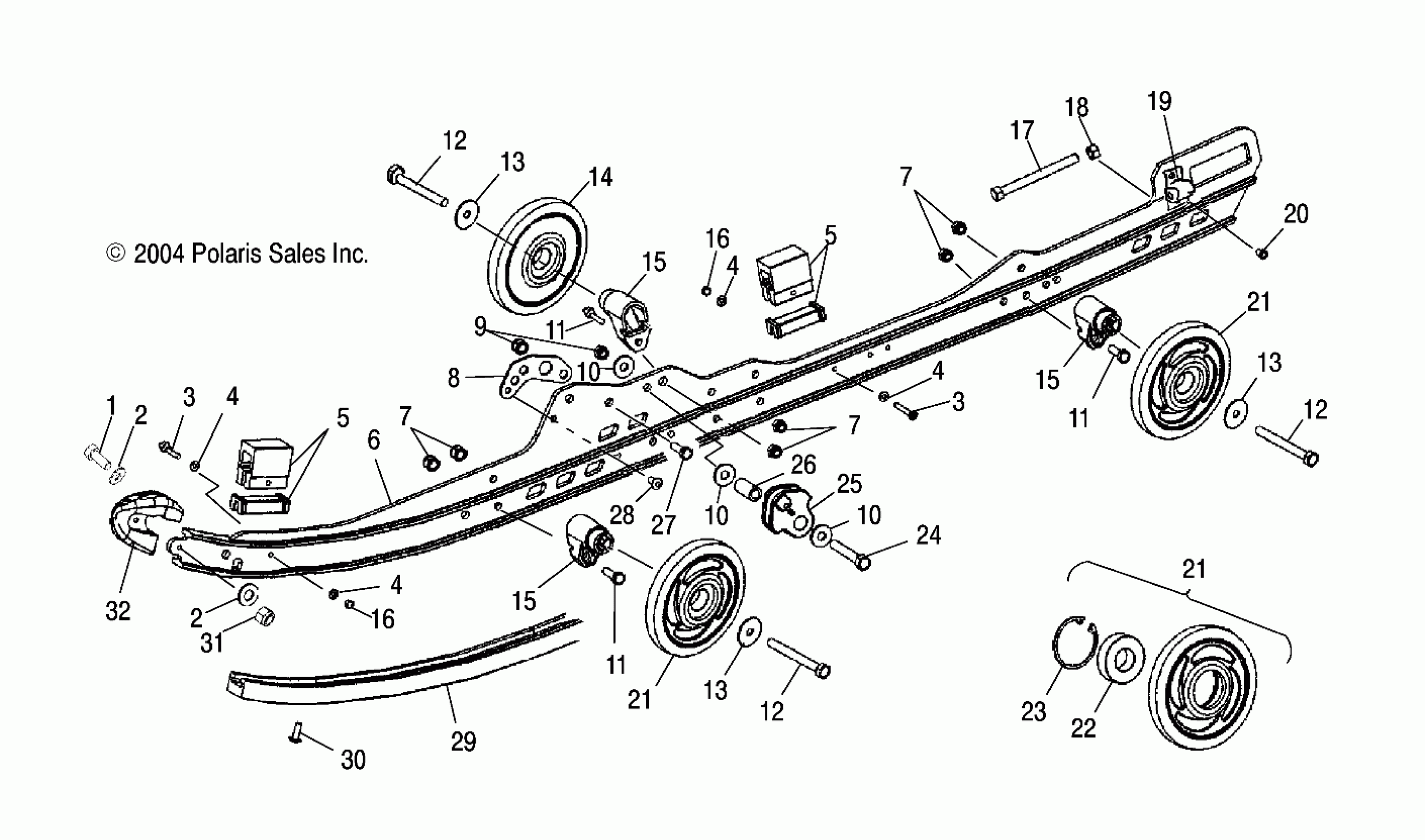

Polaris 600/700/800 RMK F/O - S05NK6ES RAIL MOUNTING SUSPENSION - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B10) Diagram

#

Description
Price

1

BOLT

7512007

$3.99

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

Asm., Rail, 144, LH [Incl. 1-6,19,20,31,32]

1541835

$364.99

6

Asm., Rail, 144, RH [Incl. 1-6,19,20,31,32]

1541836

Unavailable

6

Asm., Rail, 151, LH [Incl. 1-6,19,20,31,32]

1541840

Unavailable

6

Asm., Rail, 151, RH [Incl. 1-6,19,20,31,32]

1541841

$319.99

6

Asm., Rail, 159, LH [Incl. 1-6,19,20,31,32]

1541845

$308.99

6

Asm., Rail, 159, RH [Incl. 1-6,19,20,31,32]

1541846

$263.99

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Bracket, Rail, Reinforcement

5245411

$9.70

9

Nut, Nylok

7542439

$1.49

10

WASHER

7555983

Unavailable

10

WASHER

7555983

Unavailable

10

WASHER

7555983

Unavailable

11

BOLT

7515317

$4.79

11

BOLT

7515317

$4.79

11

BOLT

7515317

$4.79

12

Screw

7515346

$5.59

12

Screw

7515346

$5.59

12

Screw

7515346

$5.59

13

Washer, Spring

7556179

$7.99

13

Washer, Spring

7556179

$7.99

13

Washer, Spring

7556179

$7.99

14

ASM., WHEEL, BOGIE

1590328

$48.56

15

Block, Wheel Mount

5631065

$28.32

15

Block, Wheel Mount

5631065

$28.32

15

Block, Wheel Mount

5631065

$28.32

16

Nut, Nylok

7541925

$1.49

16

Nut, Nylok

7541925

$1.49

17

SCREW

7517227

$7.19

18

NUT

7542404

$1.59

19

Bracket, Idler Bolt Adjust

5130530

$32.37

20

RIVET

7621501

$2.39

21

ASM., WHEEL, BOGIE

1590328

$48.56

21

Asm., Wheel, Scrolled, Indy Red [Incl. 22,23]

1590318-293

Unavailable

21

ASM., WHEEL, BOGIE

1590328

$48.56

21

Asm., Wheel, Scrolled, Indy Red [Incl. 22,23]

1590318-293

Unavailable

21

ASM., WHEEL, BOGIE

1590328

$48.56

21

Asm., Wheel, Scrolled, Indy Red [Incl. 22,23]

1590318-293

Unavailable

22

BEARING [1 PER WHEEL]

3514303

$11.99

23

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

24

Bolt

7515438

$4.79

25

Pin, Clevis

7661123

$3.99

25

GUIDE, SPRING, SQUARE

5434334

$28.32

25

PIN, HITCH

7661644

$2.39

26

SPACER

5333948

$6.39

27

Bolt

7512457

$3.99

28

RIVET

7661845

$1.49

29

Hi-Fax, 156 Inch

5521581-309

$40.46

29

Hi-Fax, 159 Inch

5521595-309

$40.46

30

Screw

7515199

$1.49

31

Nut, Nylok

7541925

$1.49

32

Cap, Rail Tip

5434355

Unavailable
