Partiron

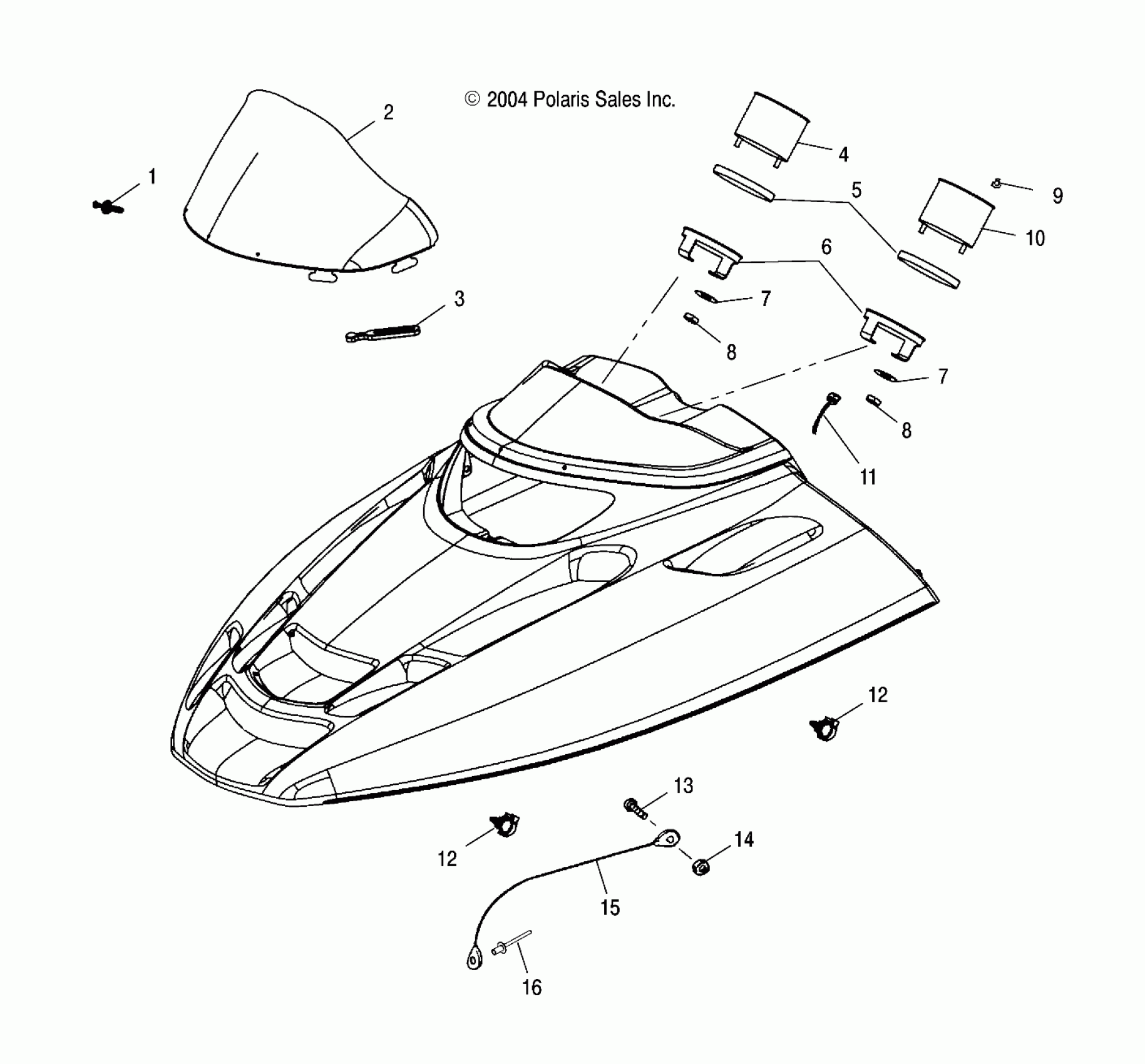

Polaris 600/700/800 RMK F/O - S05NK6ES HOOD - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278A10) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, 13 Inch, Flare, Smoke/Gray

5435489

Unavailable

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Bulb, Replacement

4030015

$4.03

4

Asm., Tachometer [600]

3280413

Unavailable

4

Asm., Tachometer w/DET [700][800]

3280432

Unavailable

5

Cushion, Rubber

3280209

$3.99

6

Bracket, Speedometer/Tachometer

3280210

$28.32

7

Washer, Flat

3280157

$2.39

7

Washer, Flat

3280157

$2.39

8

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

8

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

9

Knob, Trip Odometer

3280186

$9.70

10

Bulb, Replacement

4030015

$4.03

10

Asm., Speedometer

3280411

$339.98

11

Cable, Speedometer

3280385

$93.08

12

Clip, Plastic, Dart, Nylon

4010589

$2.39

12

Clip, Plastic, Dart, Nylon

4010589

$2.39

13

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

14

Nut, Nylok

7541925

$1.49

15

Cable, Hood Retainer

7080521

$24.27

16

RIVET-3/16-.090-.290

7661637

$1.49
