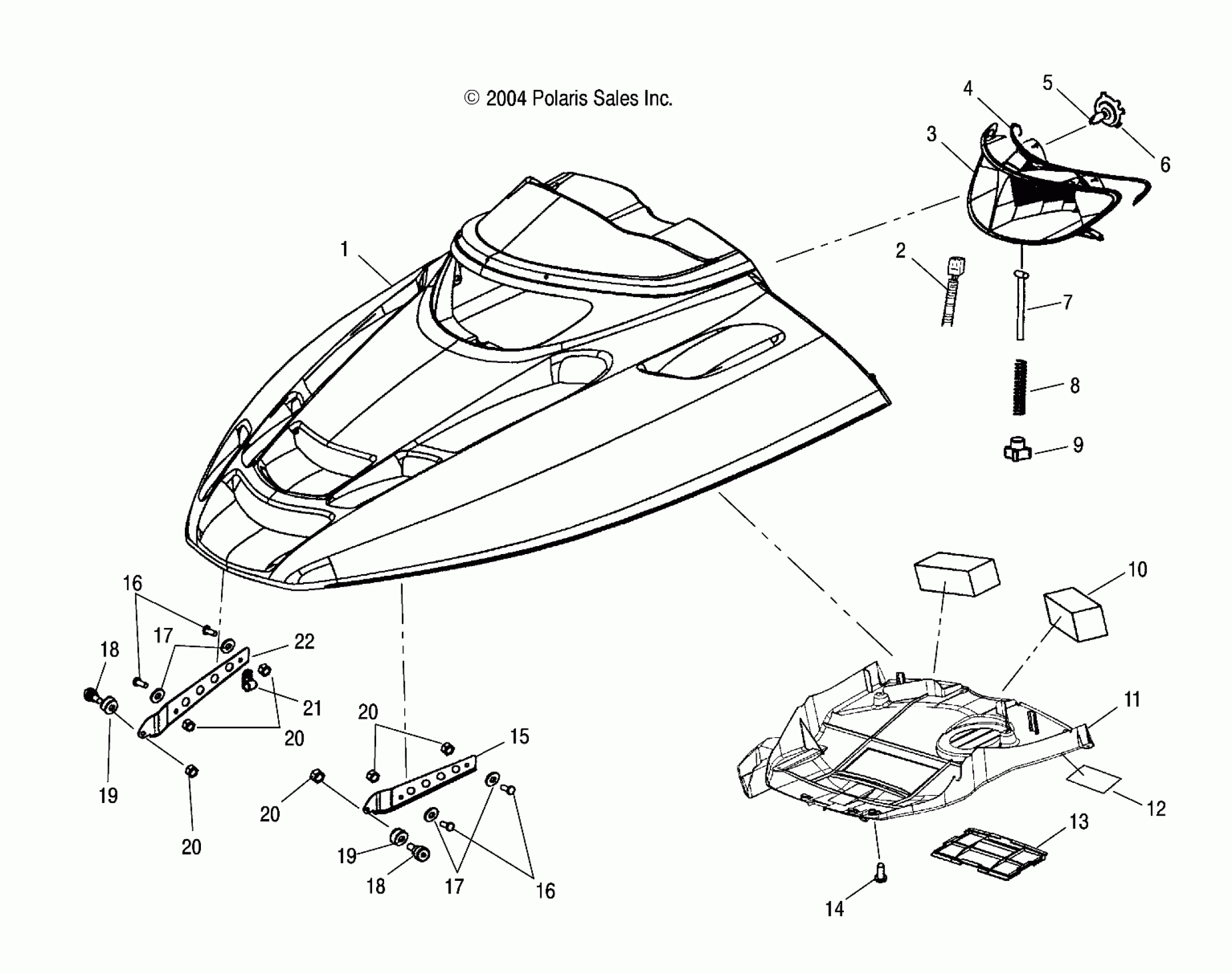

Polaris 600/700/800 RMK F/O - S05NK6ES HOOD - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278A09) Diagram

#

Description
Price

1

Asm., Hood, Red

2632521-293

$909.99

2

Harness, Headlight, E/R

2461015

$66.39

3

Asm., Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Seal, Headlight, One Piece

5812450

$44.99

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Tee Adjuster

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

10

Foam, Prefilter

5811793

$24.27

11

Foil

5811948

Unavailable

11

Asm., Plenum w/Foil

2632491

$64.75

11

Foil

5812324

Unavailable

12

Decal, Suspension Set-Up

7170040

Unavailable

13

Cover, Access, Headlight

5433660

$24.27

14

SCREW

7512068

$2.39

15

Hinge, Upper, LH

5243567-067

Unavailable

16

BOLT

7512240

$3.99

16

BOLT

7512240

$3.99

17

Washer, Flat

7558301

$1.49

17

Washer, Flat

7558301

$1.49

18

Bolt

7512113

$3.99

18

Bolt

7512113

$3.99

19

Spacer

5332403

$4.84

19

Spacer

5332403

$4.84

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

21

CLAMP-CABLE

7080367

$2.39

22

Hinge, Upper, RH

5243568-067

Unavailable
