Partiron

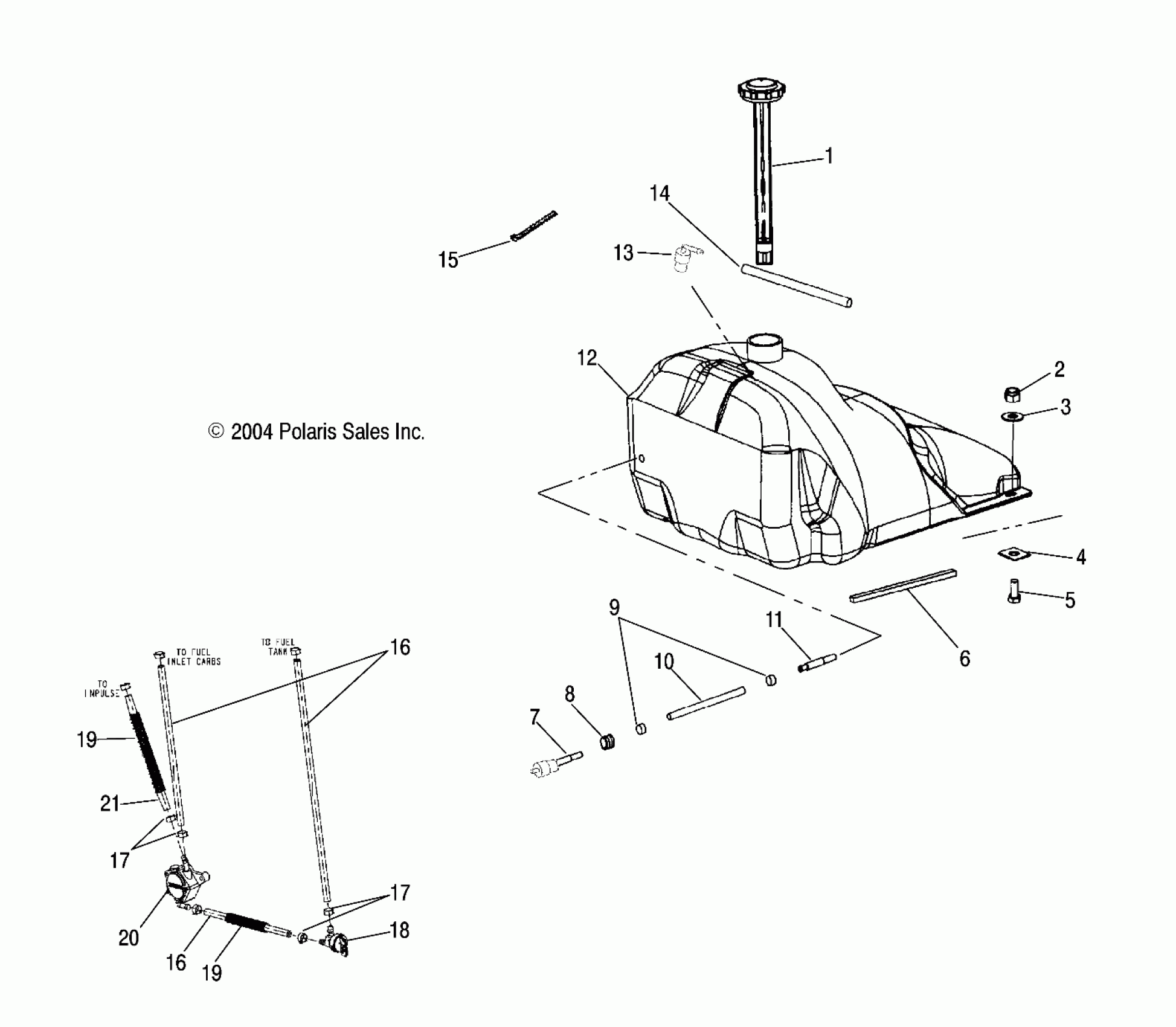

Polaris 600/700/800 RMK F/O - S05NK6ES GAS TANK - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278A06) Diagram

#

Description
Price

1

Cap w/Gauge, Fuel

2520323

Unavailable

2

Nut, Nylok

7542122

$1.49

3

WASHER, FLAT

7555960

$3.99

4

Nut, Speed

7670021

$6.99

5

BOLT, CARRIAGE

7512193

$2.39

6

FOAM-SEAL,REAR COOLER

5810947

$4.03

7

Fitting

7052269

$24.99

8

Grommet

5432981

$6.94

9

RING, COMPRESSION

7080768

$4.84

10

Line, Fuel

8350020-600

Unavailable

11

Pickup w/Mesh, Fuel

7052215

$49.99

12

Asm., Fuel Tank

2520262

$239.99

13

Fitting, 90 Degree

7052095

$4.79

14

LINE, FUEL

8450061-600

Unavailable

15

Cable, Tie, Releasable

7080804

$3.22

16

Line, Fuel

8350017-600

Unavailable

16

Line, Fuel

8350017-600

Unavailable

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

Asm., Valve, Fuel

1253424

$44.99

19

TUBING, CONVOLUTED

8360052-305

$28.32

19

TUBING, CONVOLUTED

8360052-305

$28.32

20

Pump, Fuel

2520275

$111.99

21

Line, Fuel

8450040-600

Unavailable
