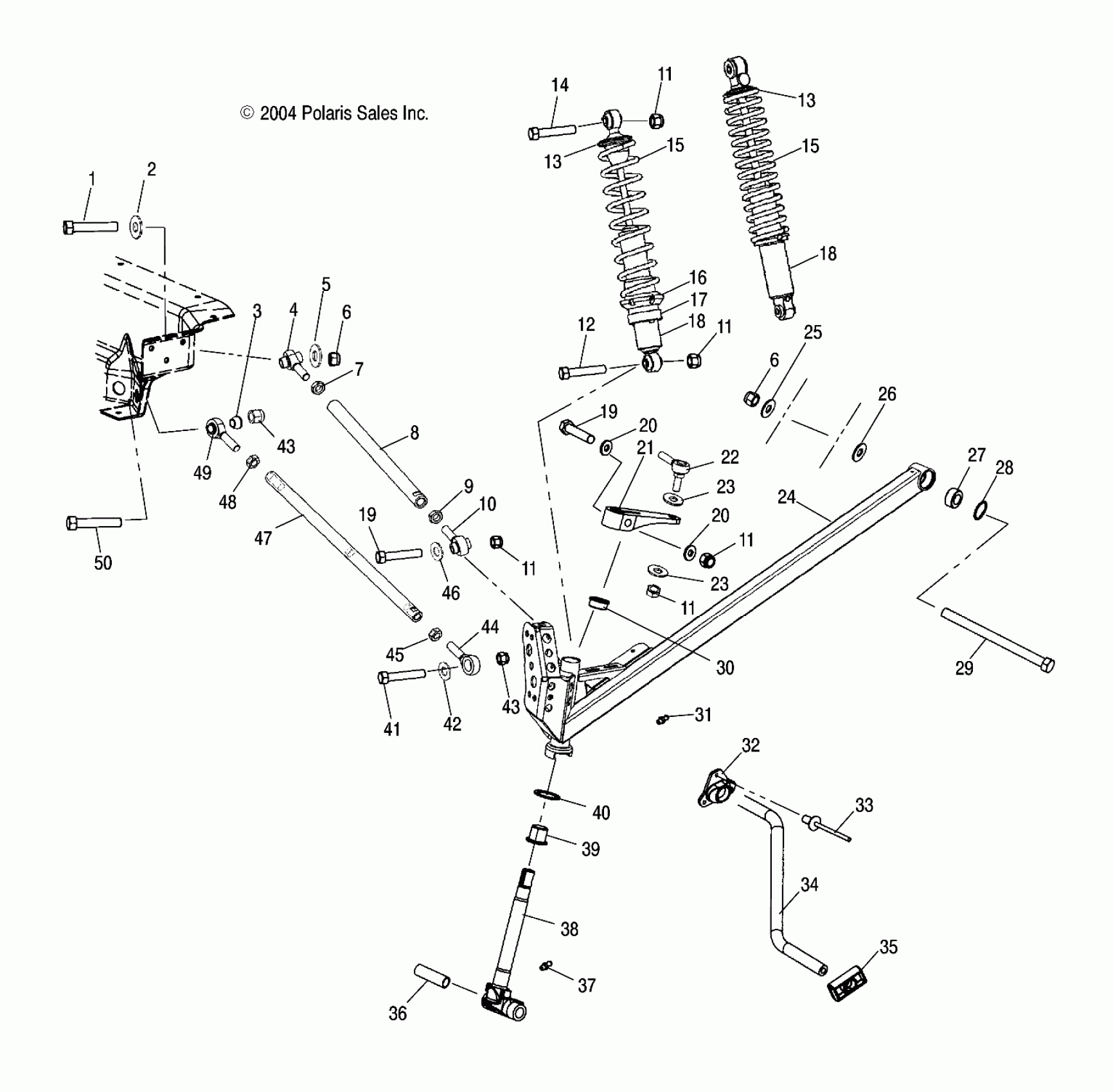

Polaris 600/700/800 RMK F/O - S05NK6ES FRONT SUSPENSION - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B03) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

WASHER

7556212

$8.79

3

Bushing, Spacer

5132454

Unavailable

4

Rod End, Radius, LH

7061081

Unavailable

5

WASHER, FLAT

7555852

$2.39

6

Nut, Nylok

7547066

$1.59

6

Nut, Nylok

7547066

$1.59

7

Nut, LH

7547117

Unavailable

8

Tube, Radius, Rod, Upper

5133691

$60.70

9

Nut, Jam

7542520

$2.39

10

Rod End, RH

7061104

Unavailable

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

12

Screw

7515433

$1.59

13

Retainer, Spring, Slotted

5630580

Unavailable

13

Retainer, Spring, Slotted

5630580

Unavailable

14

Screw

7515415

$1.49

15

Spring, Compression [Nitrex]

7041551-067

$74.99

15

Spring, Compression, IFS [IFP]

7041576-067

$43.99

15

Spring, Compression [Nitrex]

7041551-067

$74.99

15

Spring, Compression, IFS [IFP]

7041576-067

$43.99

16

Ring, Spring Preload [Nitrex]

5431734

$52.60

17

Retainer, Spring, Body, Threaded [Nitrex]

1500063

$44.51

18

Shock, IFS, Nitrex

7042197

$214.99

18

Shock, IFS, IFP [See Shock (IFS) page for Service Components]

7042059

Unavailable

18

Shock, IFS, Nitrex

7042197

$214.99

18

Shock, IFS, IFP [See Shock (IFS) page for Service Components]

7042059

Unavailable

19

SCREW

7517583

$4.35

19

SCREW

7517583

$4.35

20

WSHR-.813X.406X.105-Y

7555832

$2.39

20

WSHR-.813X.406X.105-Y

7555832

$2.39

21

Arm, Steering

5133060

$70.39

22

Rod, End, RH

7061109

$43.99

23

Washer, Flat

7555797

$3.99

23

Washer, Flat

7555797

$3.99

24

Asm., Trailing Arm, Cloud Silver, LH [Incl. 27,28]

1821260-385

$629.99

24

Asm., Trailing Arm, Cloud Silver, RH [Incl. 27,28]

1821261-385

Unavailable

25

WASHER, FLAT

7555820

$3.99

26

Cup, Mount, Trailing Arm

5132364

$20.22

27

Bearing, Spherical

7061042

$31.99

28

Ring, Retaining

7710437

$3.19

29

Screw

7512099

$19.99

30

BUSHING, FLANGE

3573909

$2.39

31

Fitting, Lubrication

7080433

$1.49

32

Bushing, Torsion Bar

5433814

$23.99

33

Rivet

7621452

$1.49

34

Bar, Torsion

5246871-067

$66.99

35

Slide, Sway Bar

5412063

Unavailable

36

Bushing

5010158

$19.99

37

Fitting, Lubrication, w/Ball

7080306

$3.19

38

Shaft, w/Steering Stop, Spindle

6230225-067

$219.99

39

BUSHING, FLANGED

3574208

$3.19

40

Bushing, Pivot

7556509

$1.59

41

SCREW

7512410

Unavailable

42

WASHER

7556153

$1.99

43

Nut, Nylok

7542439

$1.49

43

Nut, Nylok

7542439

$1.49

44

Rod End, RH

7061103

$64.99

45

Nut, Jam

7542711

$2.39

46

WASHER

7556153

$1.99

47

Tube, Radius Rod, Lower

5132953

Unavailable

48

Nut, Jam, LH

7547028

$2.39

49

Rod End, Radius, LH, Lower

7061087

$144.99

50

Bolt

7518041

$6.23
