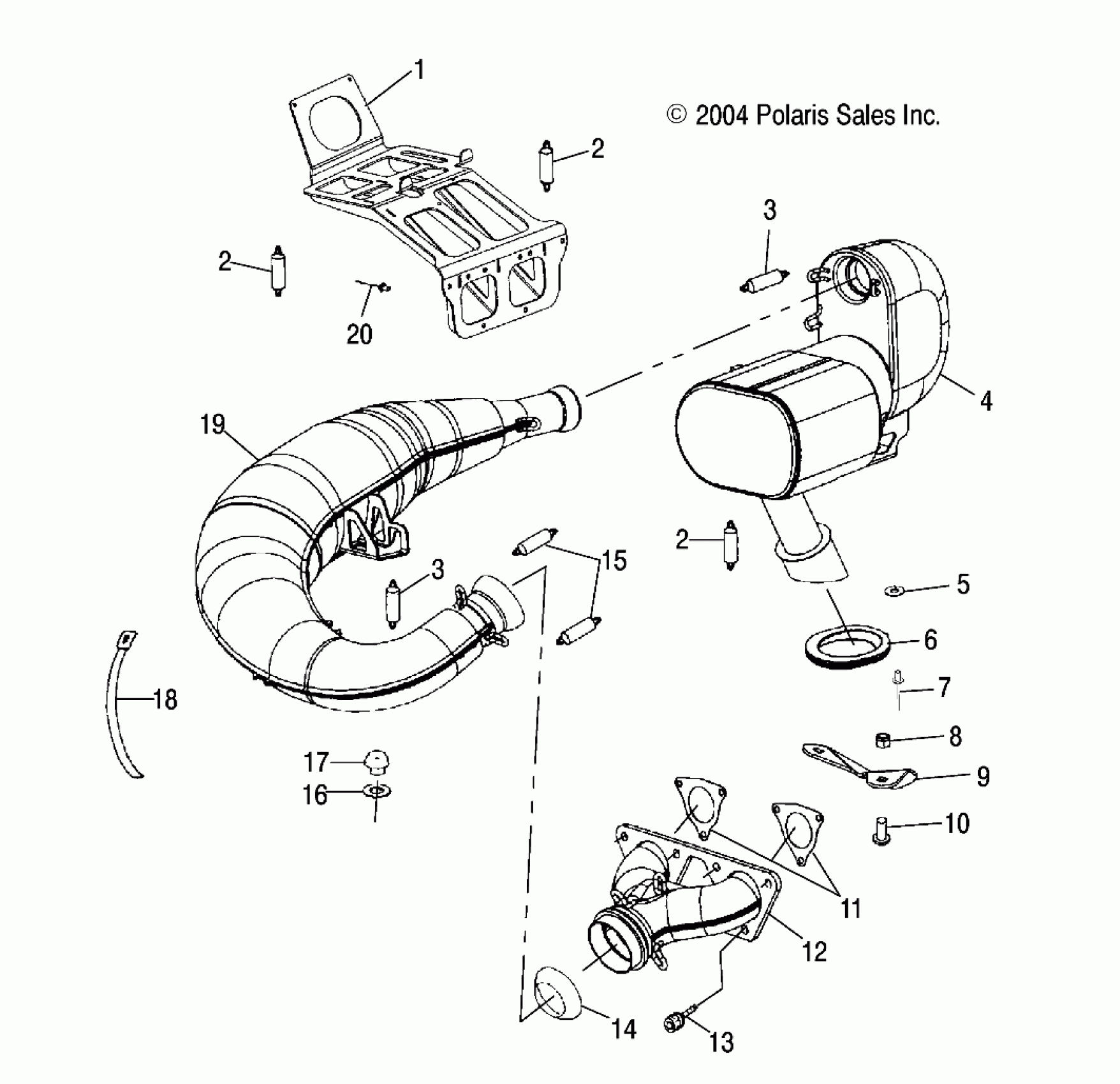

Polaris 600/700/800 RMK F/O - S05NK6ES EXHAUST SYSTEM - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278C06) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261296-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

Spring, Exhaust

7042029

$4.84

3

Spring, Exhaust

7042029

$4.84

4

Resonator [600][700]

1261130-029

$649.99

4

Resonator [800]

1261177-029

Unavailable

5

Washer

7555904

$1.49

6

Boot, Exhaust, Outlet

5411684

Unavailable

7

RIVET

7621467

$1.49

8

Nut, Flange

7542321

$1.49

9

Deflector, Exhaust

5243929

$24.27

10

Bolt, Carriage

7512377

$4.79

11

Gasket, Exhaust [700][800]

5811799

Unavailable

11

Gasket, Exhaust [600]

5811838

$8.89

12

Manifold [700][800]

1261124-029

$216.99

12

Manifold [600]

1261046-029

Unavailable

13

Screw

7517322

$2.39

14

SEAL, EXHAUST, SOCKET

3610046

$36.41

15

Spring, Exhaust

7042332

$4.84

16

WASHER

7556004

Unavailable

17

Dampener, Vibration, w/Ribs

5411576

$7.99

18

Clamp, Worm Drive, .44 x 3.75 [600]

7080812

$19.99

18

Clamp, Worm Drive, .44 x 4.25 [600]

7080813

$3.99

18

Clamp, Worm Drive, .44 x 3.69 [700][800]

7080740

$13.19

18

Clamp, Worm Drive, .44 x 4.25 [700][800]

7080741

$19.99

18

Clamp, Worm Drive, .44 x 6.38 [700][800]

7080742

$15.03

18

Clamp, Worm Drive, .44 x 6.50 [600]

7080811

$11.99

19

Asm., Tuned Pipe [Incl. 18][700][800]

1261123

$355.99

19

Cover, Tuned Pipe, Top [700][800]

5245929

$70.39

19

Cover, Tuned Pipe, Bottom [700][800]

5245930

$53.59

19

Matte, Sound Top [700][800]

5830215

$73.81

19

Matte, Sound, Bottom [700][800]

5830216

Unavailable

19

Cover, Tuned Pipe, Top [600]

5244398

Unavailable

19

Cover, Tuned Pipe, Bottom [600]

5244399

Unavailable

19

Matte, Sound [600]

5830198

Unavailable

19

Matte, Sound Top [600]

5830207

$12.39

19

Asm., Tuned Pipe [Incl. 18][600]

1261152

$669.99

19

Pipe, Tuned [600]

1261151-029

Unavailable

19

Pipe, Tuned [700][800]

1261122-029

Unavailable

20

RIVET-3/16-.090-.290

7661637

$1.49
