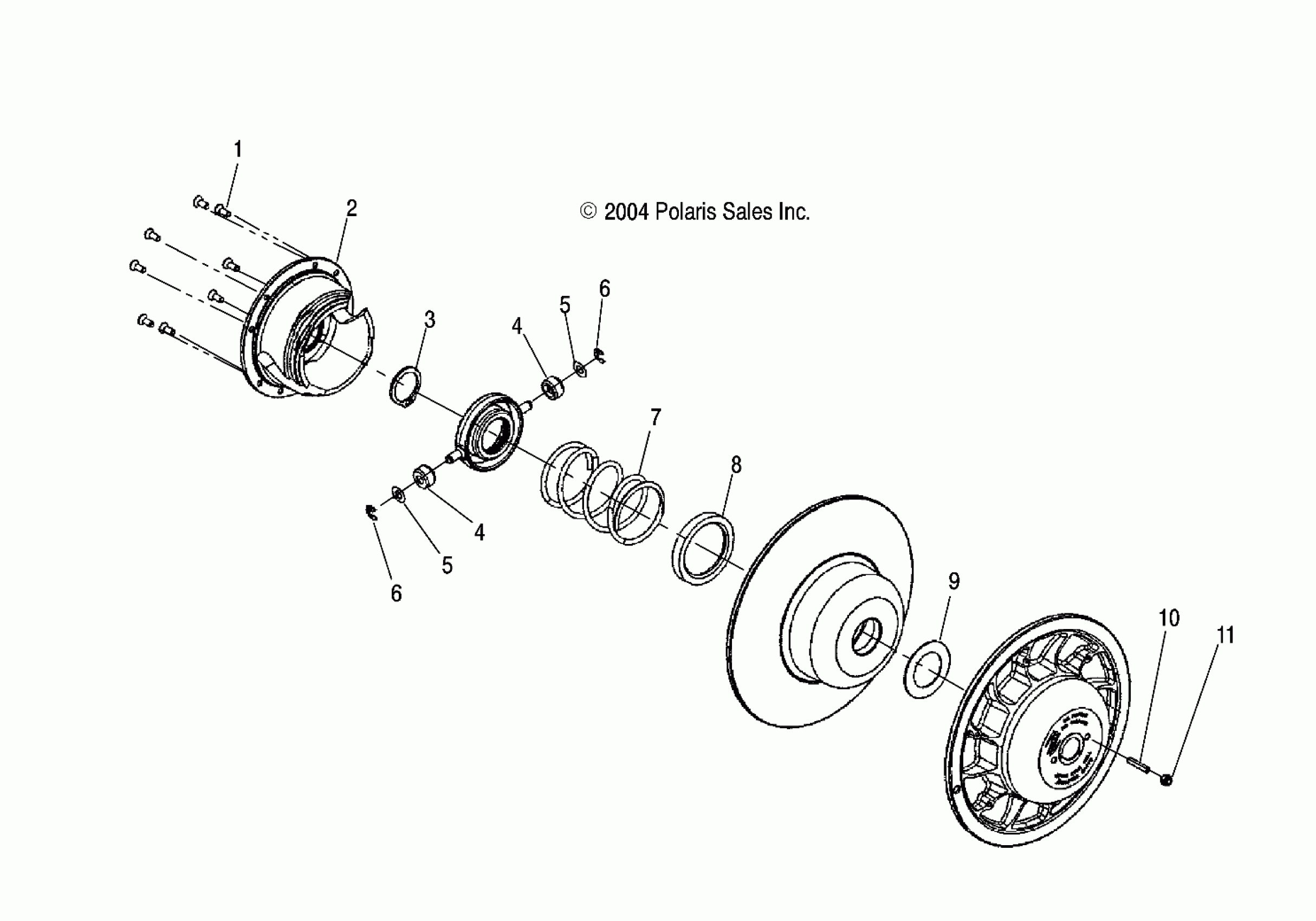

Polaris 600/700/800 RMK F/O - S05NK6ES DRIVEN CLUTCH - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278C04) Diagram

#

Description
Price

-

Asm., Driven Clutch, 216 [Incl. 3-6,8-11]

1322433

Unavailable

1

Screw, Cap

3233996

Unavailable

2

Ramp, Driven, 58/42-.36 [700][800]

5134132

Unavailable

2

Ramp, Driven, 56/42-.36 [600]

5134095

Unavailable

3

RING, RETAINING

7710522

$13.59

4

ROLLER

5434534

$48.56

4

ROLLER

5434534

$48.56

5

WASHER, THRUST

7556226

$5.65

5

WASHER, THRUST

7556226

$5.65

6

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

6

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

7

Spring, Driven Clutch, LH, Black

7043063

$56.65

8

WASHER, THRUST

7556227

$23.99

9

Spacer

3234033

Unavailable

10

Screw

7518024

Unavailable

11

Nut, FLEXLOC

7542103

$5.59
