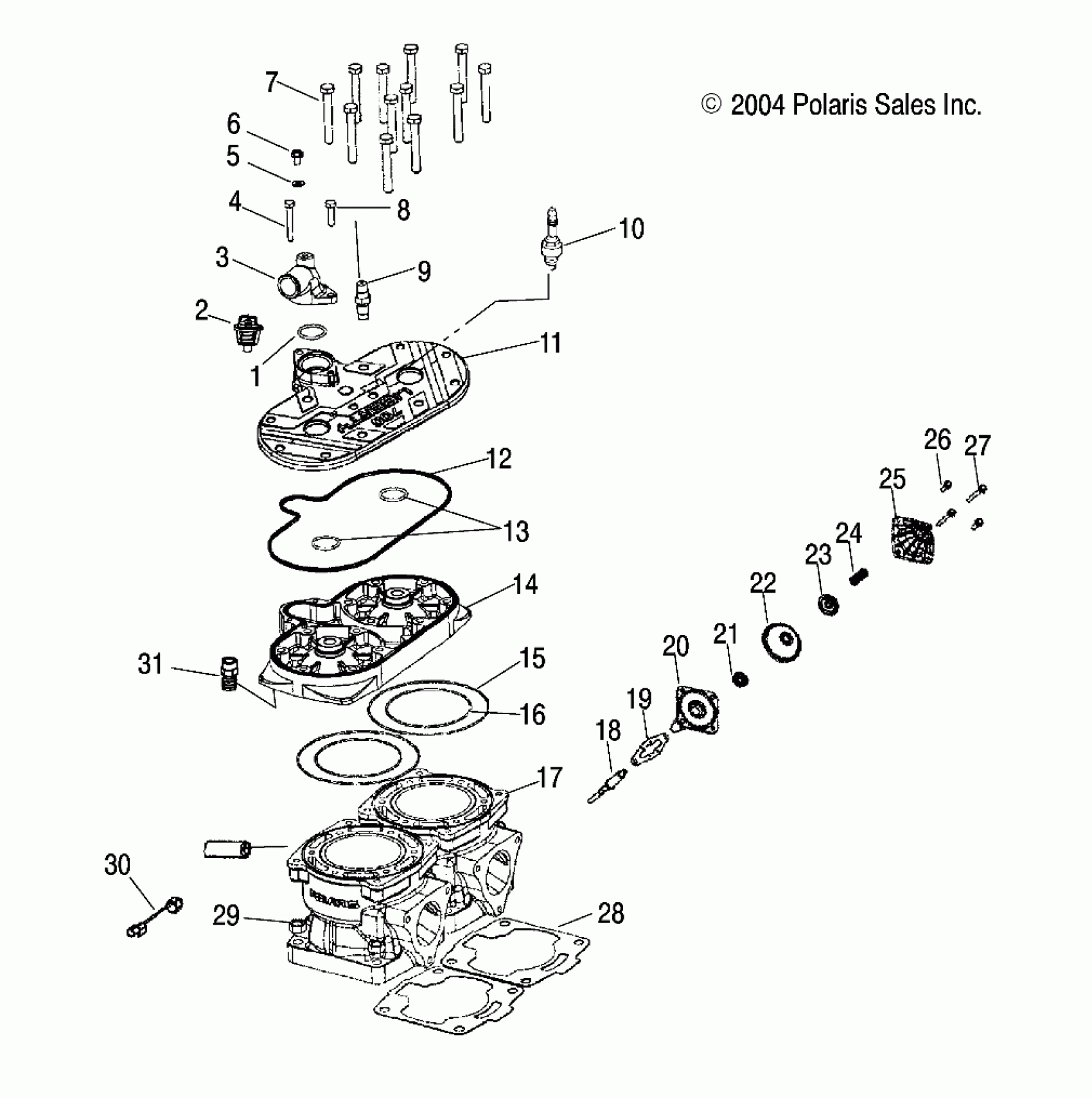

Polaris 600/700/800 RMK F/O - S05NK6ES CYLINDER (700/800) - S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278D06) Diagram

#

Description
Price

1

O-Ring

5411521

$24.19

2

Thermostat

7052258

$48.56

3

Cover, Thermostat

5631391

Unavailable

4

Screw

7517950

$5.59

5

WASHER, FLAT

7555998

$1.49

6

SCREW, BLEED

7517679

$13.59

7

SCREW

7517534

$4.79

8

SCREW

7516822

$2.39

9

Sensor, Temperature

4010398

$36.41

10

Spark Plug

3070190

$3.99

11

Cover, Head, 800 Liberty Red

5631427-329

$115.99

11

Cover, Head, 700 Liberty Red

5631426-366

Unavailable

12

Seal, Rubber, Head

5411294

Unavailable

13

O-Ring

5410917

$1.49

14

Head, Cylinder [800]

3021426

Unavailable

14

Head, Cylinder [700]

3021424

$236.17

15

O-Ring

5412232

$7.99

16

O-Ring [700]

5410932

$20.22

16

O-Ring [800]

5411675

$29.03

17

Cylinder [800]

3021339

Unavailable

17

Cylinder [700]

3021367

Unavailable

18

Valve, Guillotine, 800

5134492

$179.99

18

Valve, Guillotine, 700

5133743

$154.99

19

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

20

Asm., Base Exhaust Modified

1202216

Unavailable

21

Washer, Bellows, Exhaust Valve

5132950

Unavailable

22

Bellows, Exhaust Valve

5410000

$44.51

23

Cap/Nut, Bellows, Exhaust Valve

5631381

$33.87

24

Spring, Orange [700]

7041704-02

$34.99

24

Spring, Pink [800]

7041704-03

$28.32

25

Asm., Housing, w/Bushing

1202640

$15.99

26

SCREW

7516820

$5.59

27

SCREW

7517932

$3.99

28

Gasket, Cylinder Base, 800

5812363

$14.99

28

Gasket, Cylinder Base, 700

5812362

$12.13

29

NUT

7547013

$1.99

30

SENSOR, DETONATION

2410369

$76.89

31

Fitting

7052234

$39.99
