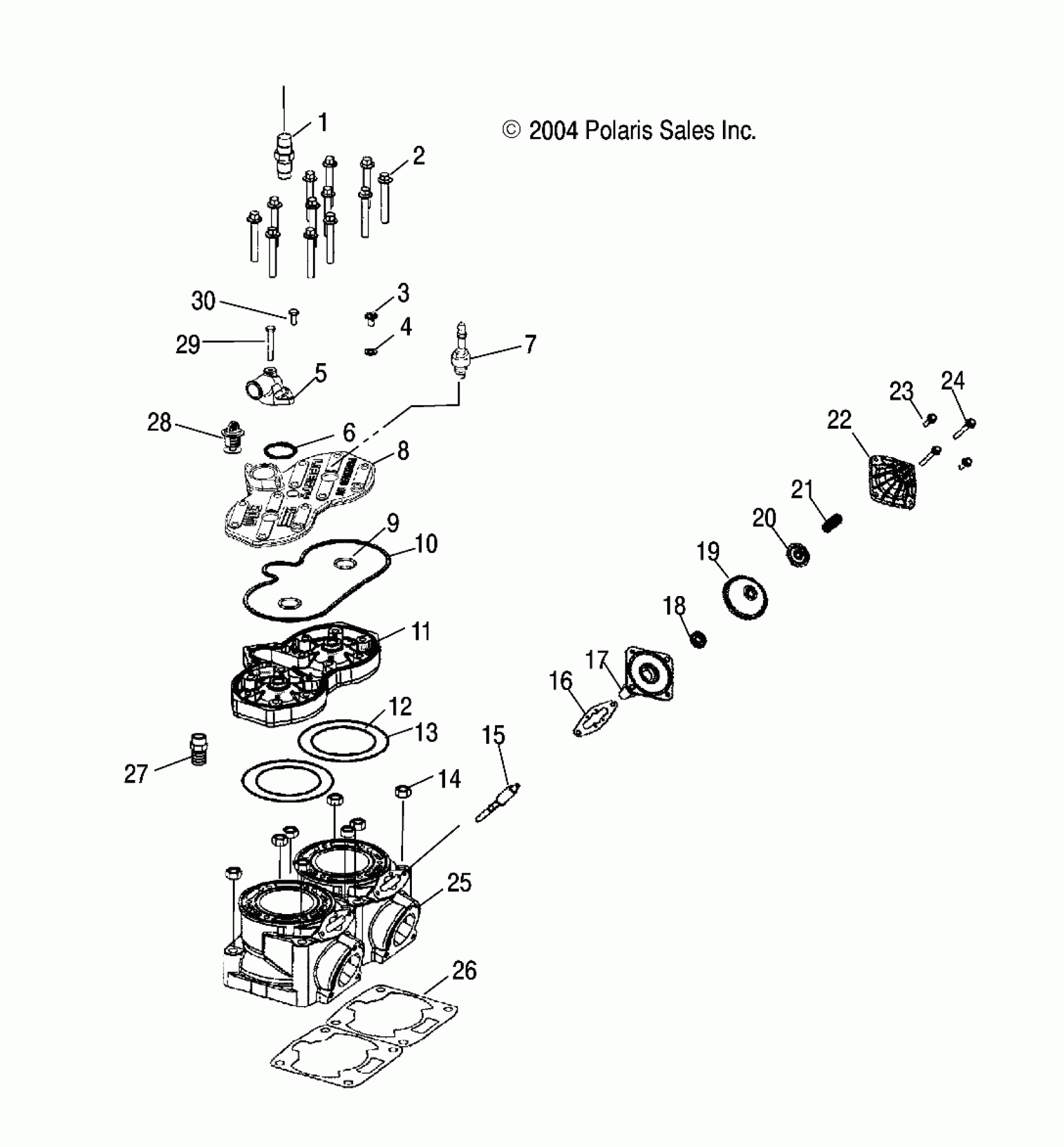

Polaris 600/700/800 RMK F/O - S05NK6ES CYLINDER (600) - S05NK6ES/A (4992789278C12) Diagram

#

Description
Price

1

Sensor, Temperature

4010398

$36.41

2

SCREW

7517533

$4.79

3

SCREW

7517679

$13.59

4

WASHER, FLAT

7555998

$1.49

5

Cover, Thermostat

5631391

Unavailable

6

O-Ring

5411521

$24.19

7

Spark Plug

3070190

$3.99

8

Cover, Head, 600 Liberty Red

5631425-366

Unavailable

9

O-RING

5411411

$1.49

10

Seal, Rubber Head Cover

5411465

$32.37

11

Head, Cylinder

3021322

Unavailable

12

O-RING

5410932

$20.22

13

O-RING

5411359

$15.99

14

NUT

7547013

$1.99

15

Valve, Guillotine

5133380

Unavailable

16

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

17

Asm., Base Exhaust Valve

1202216

Unavailable

18

Washer, Bellows, Exhaust Valve

5132950

Unavailable

19

Bellows

5410000

$44.51

20

Cap/Nut, Bellows, Exhaust Valve

5631662

$33.87

21

Spring, Compression

7041786-03

$29.99

22

Asm., Housing, w/Bushing

1202640

$15.99

23

SCREW

7516820

$5.59

24

SCREW

7517932

$3.99

25

Cylinder

3021333

$531.75

26

Gasket, Cylinder Base

5811916

$24.99

27

Fitting

7052234

$39.99

28

Thermostat

7052258

$48.56

29

Screw

7517950

$5.59

30

SCREW

7516822

$2.39
