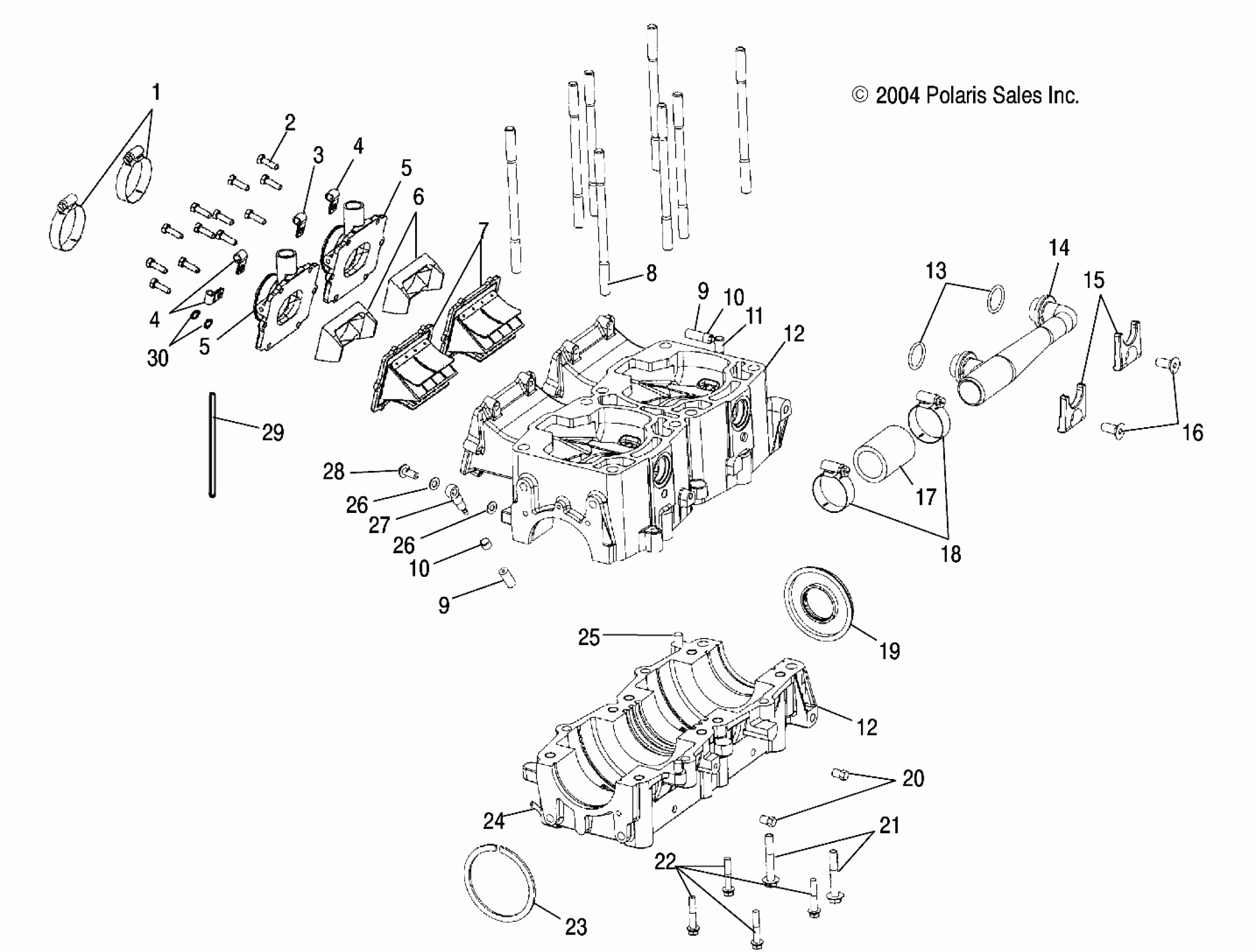

Polaris 600/700/800 RMK F/O - S05NK6ES CRANKCASE (700/800) - S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278D05) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

Clamp, Hose

7080880

$5.59

4

CLAMP, HOSE

7080683

$2.39

4

CLAMP, HOSE

7080683

$2.39

5

Adapter, Carburetor

1253327

$104.99

5

Adapter, Carburetor

1253327

$104.99

6

Stuffer, Reed Block

5433151

Unavailable

7

Asm., Reed Valve

1201825

$134.99

8

Stud, Cylinder Flange

5131677

Unavailable

9

LINE, FUEL

8450061-600

Unavailable

9

LINE, FUEL

8450061-600

Unavailable

10

Clamp

7080603

$1.59

10

Clamp

7080603

$1.59

11

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

12

Kit, Crankcase [800] [Incl. 8,11,21,22,24,25]

2202336

Unavailable

12

Kit, Crankcase [700] [Incl. 9,13,22,23,26]

2202233

$764.99

12

Kit, Crankcase [800] [Incl. 8,11,21,22,24,25]

2202336

Unavailable

12

Kit, Crankcase [700] [Incl. 9,13,22,23,26]

2202233

$764.99

13

O-Ring

5411125

Unavailable

14

Manifold, Water, Inlet

5630610

$49.59

15

Retainer, Inlet Water, Manifold

5243431

$14.75

16

Screw

7516736

Unavailable

17

Hose

8450068-04

Unavailable

18

CLAMP-HOSE, 1.750-SS

7080560

$11.19

19

SEAL, FLANGED

5411394

$29.99

20

Plug

7051529

$15.99

21

Screw

7516919

Unavailable

22

SCREW

7516732

$1.59

23

Ring, Retaining

7710441

Unavailable

24

Fitting

7052322

Unavailable

25

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

26

WASHER, FLAT

7555998

$1.49

26

WASHER, FLAT

7555998

$1.49

27

Valve, Check, Oil Pump

7052160

Unavailable

28

Screw

7517319

$19.99

29

Retainer

7080654

$18.32

30

Washer, Flat

7555836

$3.99
