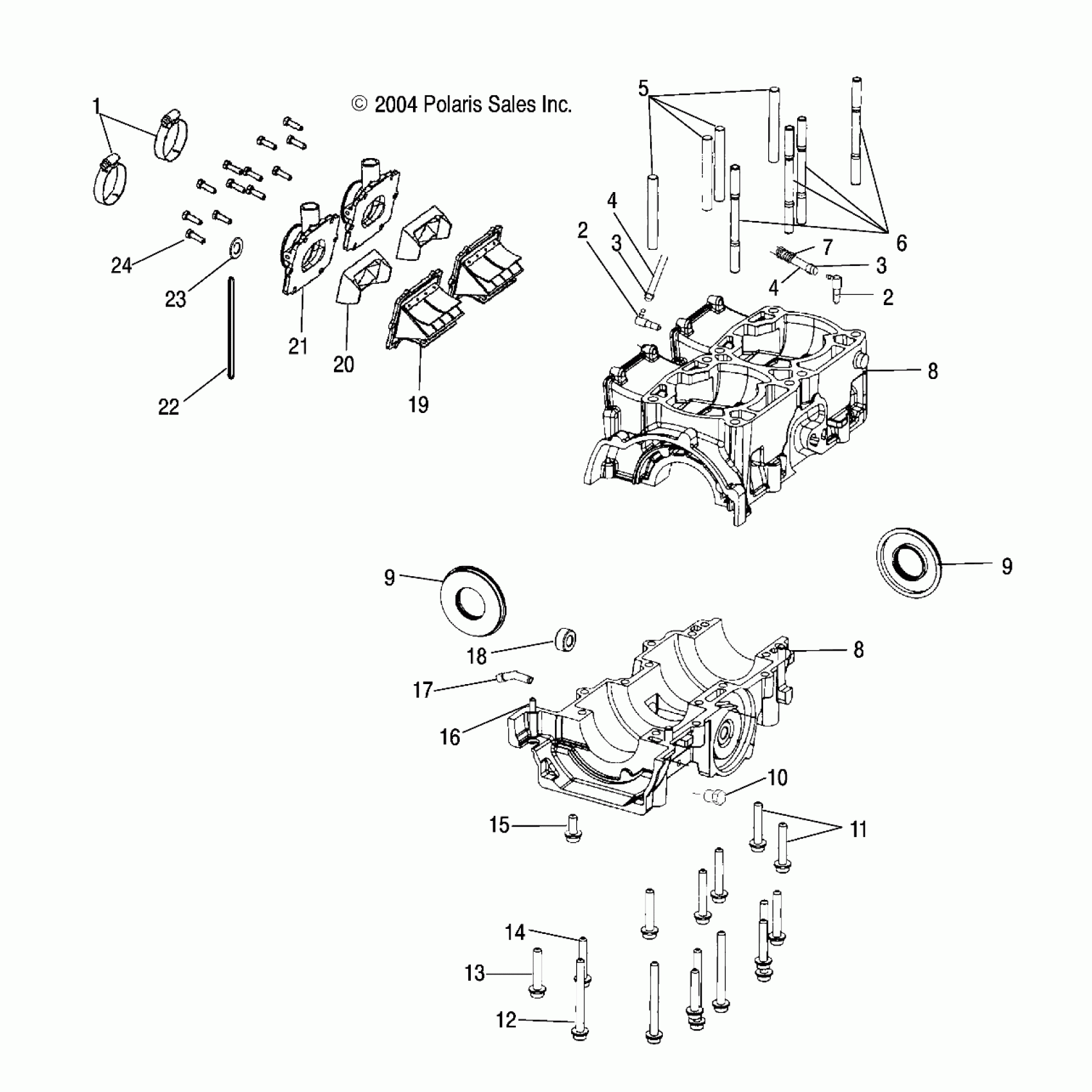

Polaris 600/700/800 RMK F/O - S05NK6ES CRANKCASE (600) - S05NK6ES/A (4992789278C11) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

3

Clamp

7080603

$1.59

3

Clamp

7080603

$1.59

4

LINE, FUEL

8450061-600

Unavailable

4

LINE, FUEL

8450061-600

Unavailable

5

Stud

5132196

$20.63

6

Stud

5132197

$21.27

7

TUBING, CONVOLUTED

8360056-25

$4.03

8

Kit, Crankcase [Incl. 5,6,10-16]

2202312

$591.27

8

Kit, Crankcase [Incl. 5,6,10-16]

2202312

$591.27

9

SEAL, FLANGED

5411394

$29.99

9

SEAL, FLANGED

5411394

$29.99

10

Plug

7051529

$15.99

11

BOLT

7517785

$9.59

12

BOLT

7517784

$8.79

13

SCREW

7516825

$5.59

14

BOLT

7517786

$6.39

15

SCREW

7517577

$3.99

16

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

17

Fitting, 45 Degree

7052322

Unavailable

18

Bearing, Pump Shaft

5010390

Unavailable

19

Asm., Reed Valve

1201825

$134.99

20

Stuffer, Reed, Block

5433151

Unavailable

21

Adaptor, Carburetor

1253423

Unavailable

22

Retainer

7080654

$18.32

23

Washer

7555836

$3.99

24

SCREW

7516822

$2.39
