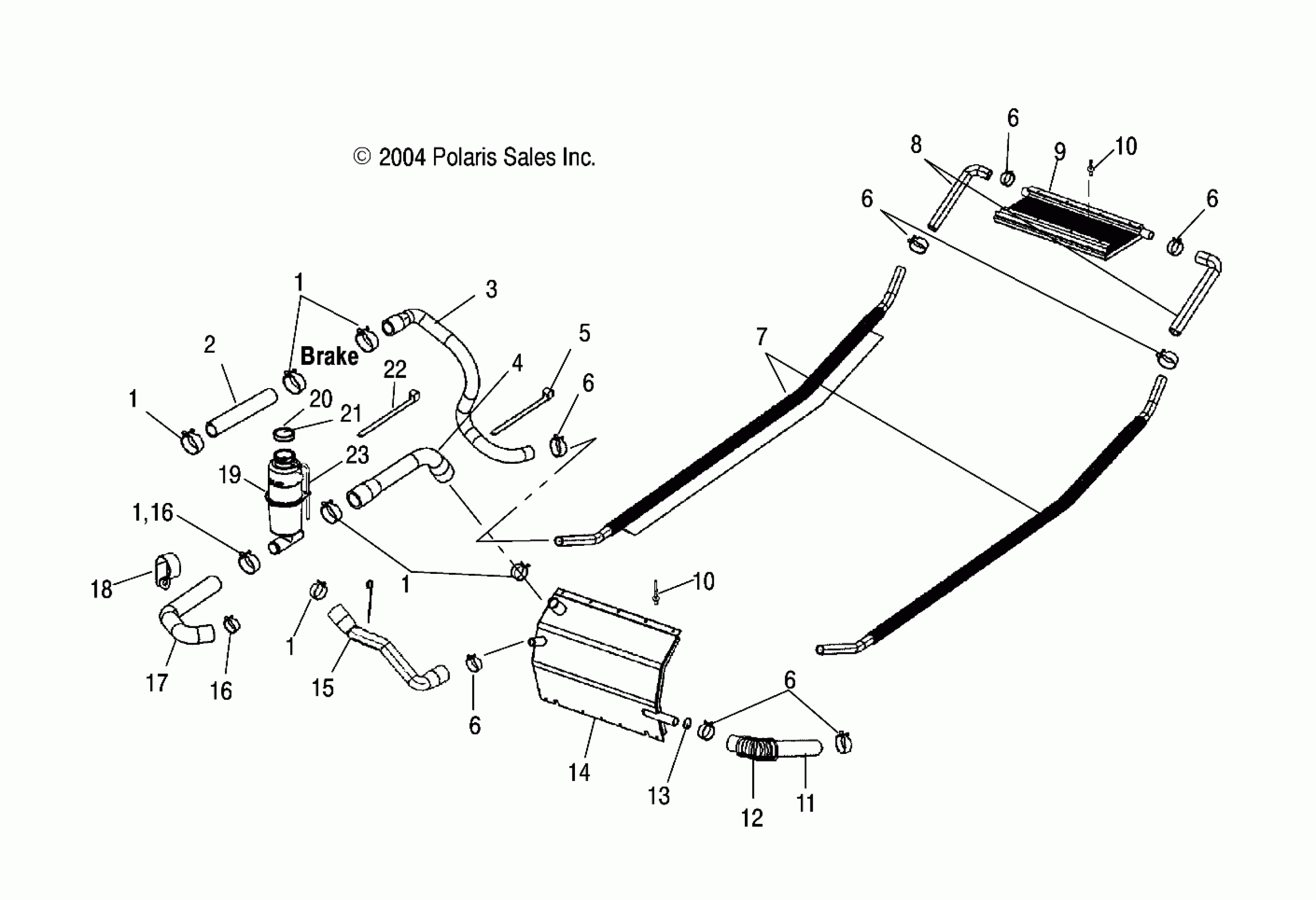

Polaris 600/700/800 RMK F/O - S05NK6ES COOLING SYSTEM - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B05) Diagram

Clamp, Springband [Qty. 6 for 700/800]

7080844

$10.39

Clamp, Springband [Qty. 6 for 700/800]

7080844

$10.39

Clamp, Springband [Qty. 6 for 700/800]

7080844

$10.39

Clamp, Springband [Qty. 6 for 700/800]

7080844

$10.39

Clamp, Springband [Qty. 6 for 700/800]

7080844

$10.39

Hose, Bypass/Brake Cooler [600]

5412432

Unavailable

Hose, Engine Out/Brake Cooler [700][800]

5412244

Unavailable

Hose, Gripper/Brake Cooler

5412351

Unavailable

Hose, Center Out/Bottle In [600]

5412433

Unavailable

Hose, Center Out/Bottle In [700][800]

5412341

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLAMP, SPRINGBAND

7080841

$7.19

CLAMP, SPRINGBAND

7080841

$7.19

CLAMP, SPRINGBAND

7080841

$7.19

CLAMP, SPRINGBAND

7080841

$7.19

CLAMP, SPRINGBAND

7080841

$7.19

CLAMP, SPRINGBAND

7080841

$7.19

Gripper/De-Icer, LH

1240104

$309.99

Gripper/De-Icer, RH

1240105

Unavailable

Hose, Gripper/Rear Closeoff

5412205

Unavailable

Exchanger, Closeoff, Rear

1240150

Unavailable

RIVET-3/16-.090-.290

7661637

$1.49

RIVET-3/16-.090-.290

7661637

$1.49

Hose, Gripper/Center Cooler

5412083

Unavailable

Tubing, Convoluted

5521602

Unavailable

SPACER-RUBBER

5810291

$3.99

Cooler, Bulkhead

2520292

Unavailable

Hose, Front Cooler/Engine Out

5412236

$44.51

CLAMP-HOSE, 1.750-SS [Qty. 2 for 700/800]

7080560

$11.19

CLAMP-HOSE, 1.750-SS [Qty. 2 for 700/800]

7080560

$11.19

Hose, Pump/Bottle [700][800]

5412160

$48.56

Hose, Bottle to Engine [600]

5412237

Unavailable

Clamp, Hose

7080908

$8.99

Bottle, Coolant

2520312

$48.56

Cap, Pressure

2511270

$24.27

DECAL, WATER BOTTLE CAP

7170063

$4.03

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

FUEL LINE

8450003-1525

$84.99
