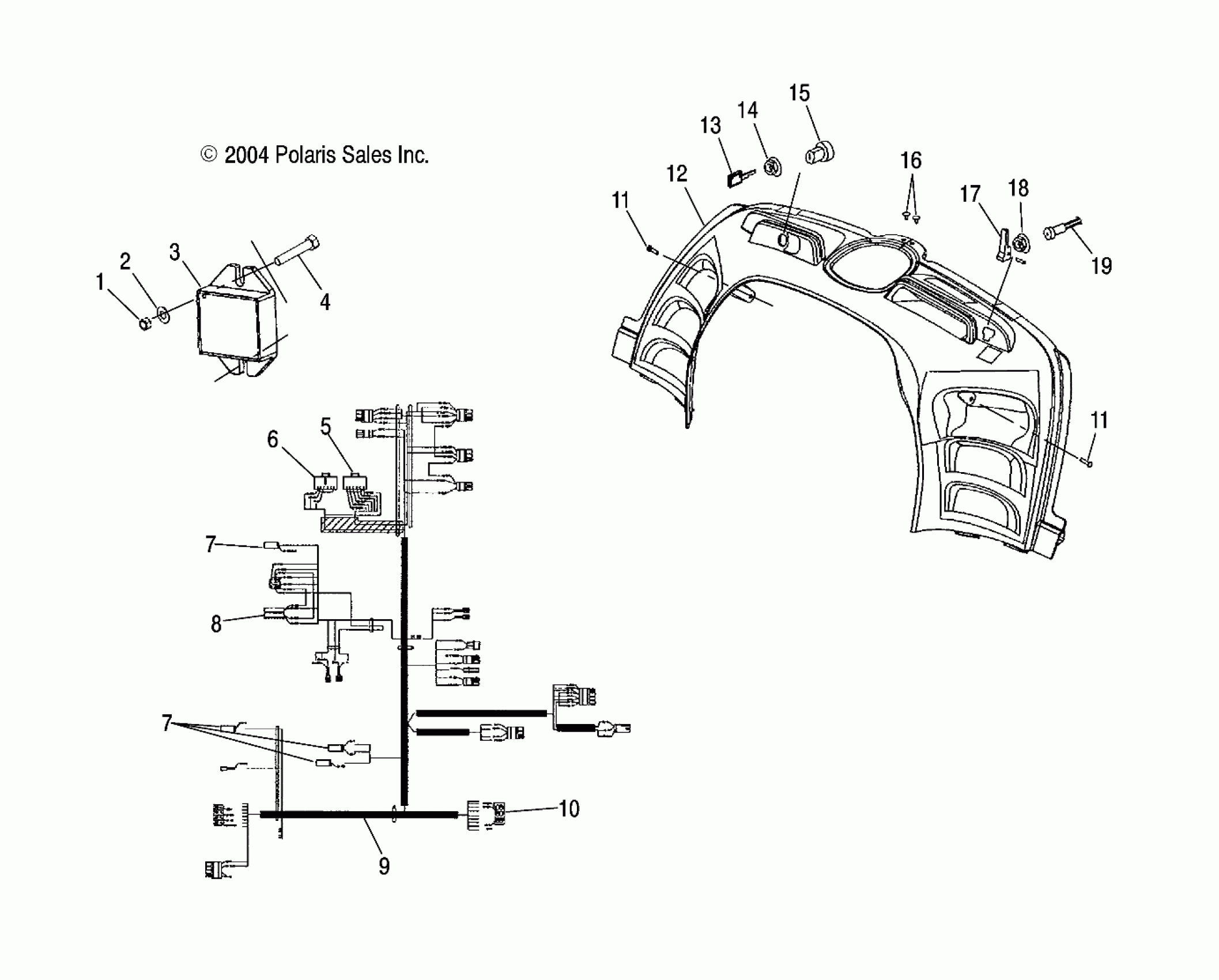

Polaris 600/700/800 RMK F/O - S05NK6ES CONSOLE - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278A12) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, AC/DC 14.3V [Electric Start]

4010794

$116.17

3

Regulator, AC 14.3V [Manual Start]

4010793

$101.17

4

Screw [Manual Start]

7512031

$2.23

4

Screw [Electric Start]

7517263

Unavailable

5

Socket

4010192

Unavailable

6

Housing, Connector

4010193

$8.79

7

Housing 1 Circuit

4020153

$1.49

7

Housing 1 Circuit

4020153

$1.49

8

Housing, Pack

4020063

$3.19

9

Harness, Main TPS, ER, FS

2461146

Unavailable

10

Housing

4020057

$3.51

11

Screw

7515199

$1.49

11

Screw

7515199

$1.49

12

Console

5434134

Unavailable

13

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

14

Nut, Ignition

7547035

$8.79

15

Kit, Ignition Switch

2201614

$89.03

16

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

17

Kit, Lever, Choke [Incl. Pin]

2201439

$24.27

18

Nut, Choke

5432944

$8.79

19

Cable, Choke [Incl. 17,18]

7080946

$89.03
