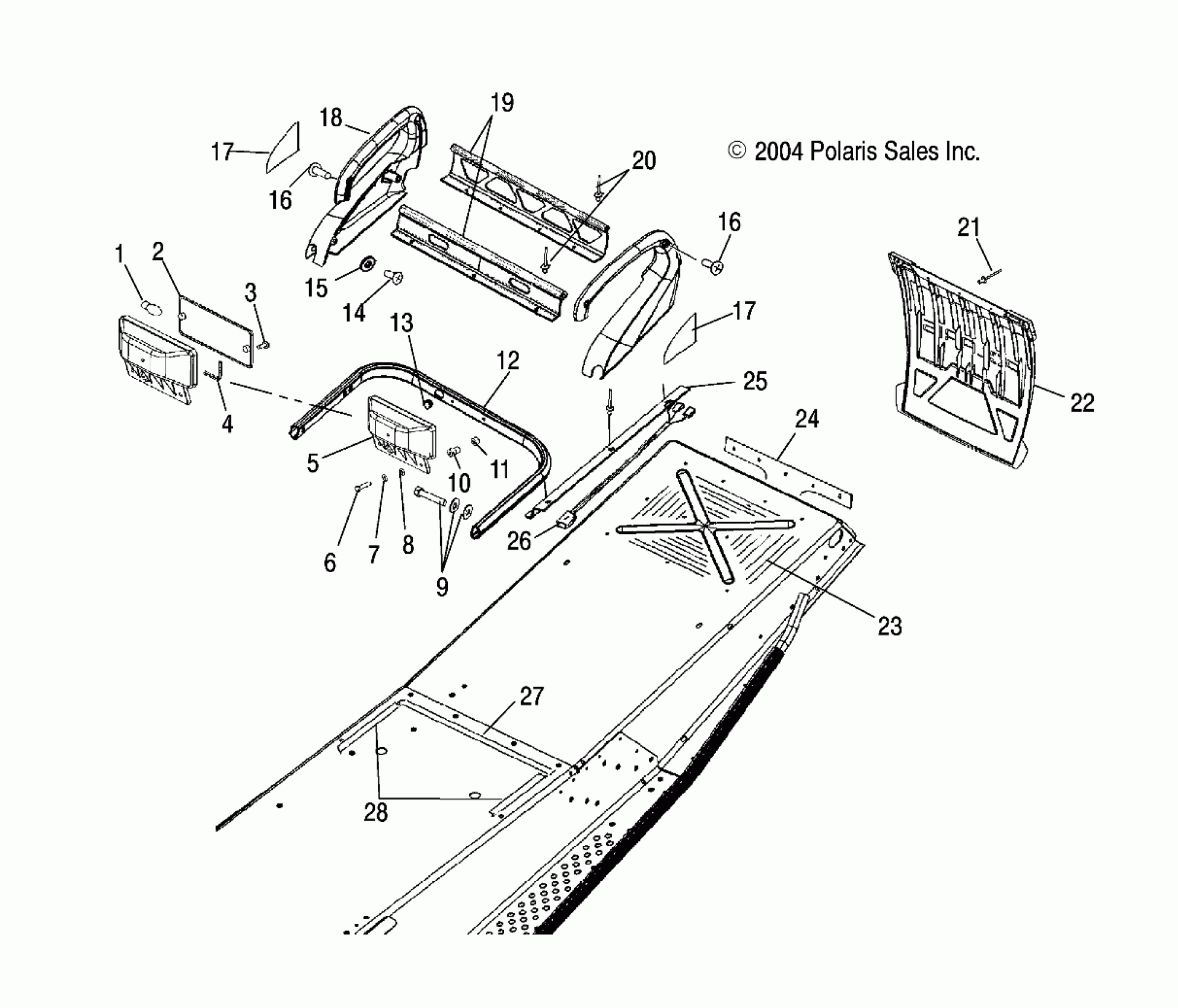

Polaris 600/700/800 RMK F/O - S05NK6ES CHASSIS - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278A04) Diagram

#

Description
Price

1

Bulb, Taillight

4030043

$6.46

2

Lens

4032014

$36.41

3

Screw

7518019

$2.63

4

Gasket

4032015

Unavailable

5

Asm., Taillight [Incl. 1-4]

2410307

$91.19

6

SCREW

7515140

$3.19

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer

7556033

$4.79

9

Washer, Flat [Qty 6 for 151/156]

7558301

$1.49

9

Washer, Spring Lock [Qty 6 for 151/156]

7552801

$1.59

9

Bolt [Qty 6 for 151/156]

7512113

$3.99

10

Mount, Rubber

3021186

$11.99

11

WASHER, NYLON

7555916

$1.59

12

Asm., Bumper, Rear, 136/144

2632460-309

Unavailable

12

Asm., Bumper, Rear, 151/156

2632461-309

Unavailable

13

Bushing, Snap

7081039

Unavailable

14

SCREW

7512094

$1.59

15

Washer, Flat

7558301

$1.49

16

SCREW

7517686

$1.59

16

SCREW

7517686

$1.59

17

Decal, Reflector, Red, RH

7079668

$11.90

17

Decal, Reflector, Red, LH

7079667

Unavailable

17

Decal, Reflector, Red, RH

7079668

$11.90

17

Decal, Reflector, Red, LH

7079667

Unavailable

18

Kit, Snow Skirt, Red

2873764-293

Unavailable

19

Rack, Front

5133058

$72.49

19

Rack, Rear

5133059

$149.99

20

RIVET-3/16-.090-.290 [151]

7661637

$1.49

20

Rivet [144]

7661130

$1.49

21

RIVET

7621418

$1.49

22

Flap, Snow Black w/White

5434356-1038

Unavailable

23

Protector, Bed, Front/Rear

5412033

$7.43

23

Protector, Bed, LH

5412074

$16.47

23

Protector, Bed, RH

5412134

$14.87

24

Support, Snow Flap

5812229

Unavailable

25

Rivet

7661079

Unavailable

25

Guard, Wire, Taillight [Incl. Rivets]

5245726

$11.59

26

Jumper, Seat, Taillight

2461065

Unavailable

27

Gasket, Seat Base, 1/4 Inch

5812360

$1.83

28

Gasket, Seat Base

5812290

$1.49
