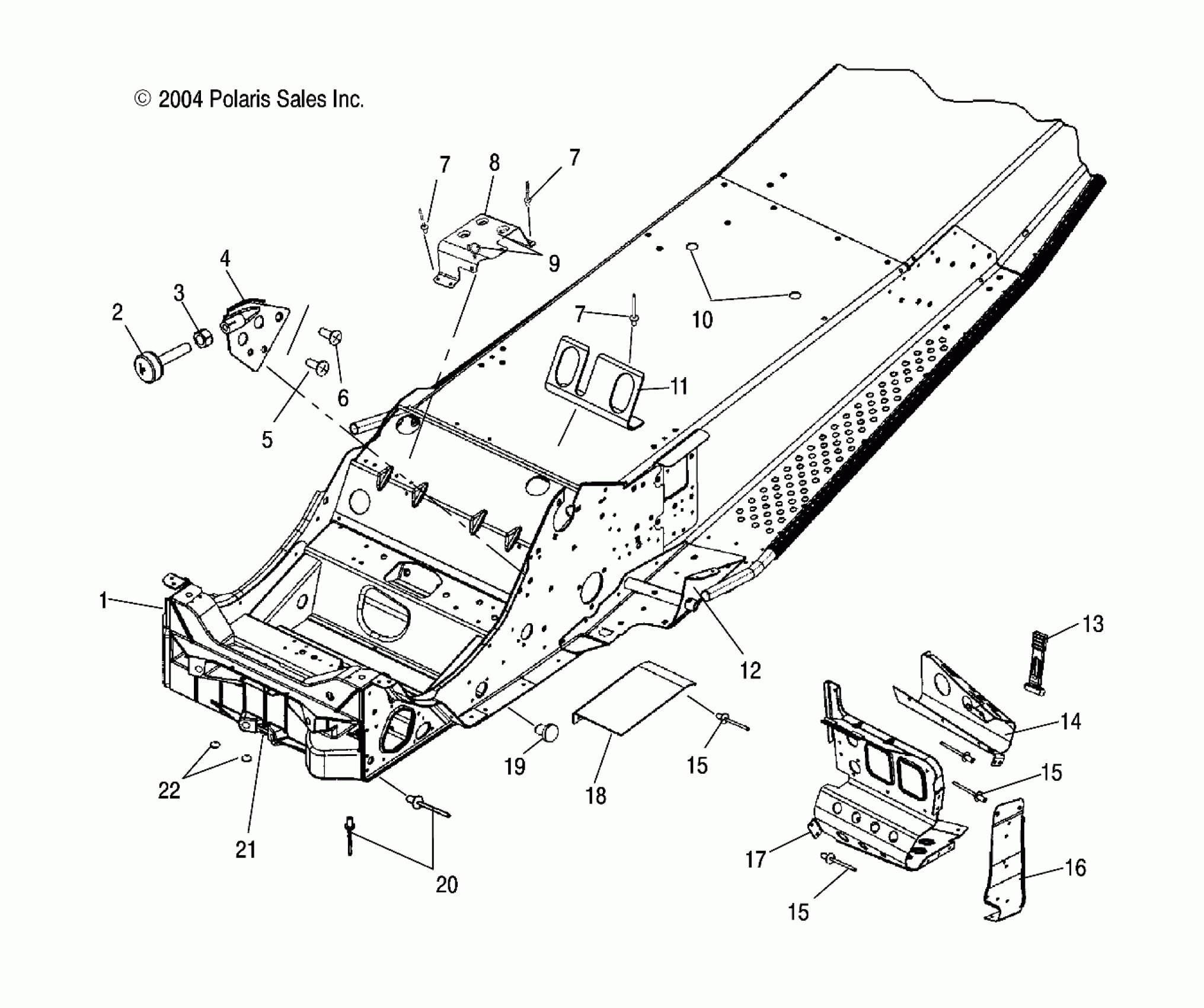

Polaris 600/700/800 RMK F/O - S05NK6ES CHASSIS - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278A03) Diagram

#

Description
Price

1

Asm., Chassis 136 Inch/144 Inch

1014160-309

$1,309.99

1

Asm., Chassis, 151 Inch/159 Inch

1014245-309

$1,249.99

2

Stop, Torque [700][800]

3110078

$36.41

2

Stop, Torque [600]

3021104

$20.22

3

NUT

7542404

$1.59

4

Stop, Torque [700][800]

1013377

$27.19

4

Stop, Torque [600]

1013379

Unavailable

5

Screw

7517854

$5.59

6

SCREW

7517632

$5.59

7

Rivet

7621432

$1.49

7

Rivet

7621432

$1.49

7

Rivet

7621432

$1.49

8

Bracket, Oil Bottle

5245202

$17.43

9

CLIP, ROSEBUD

4020139

$4.79

10

Plug, Cap

7080592

Unavailable

11

Bracket, Air Box

5246177

$18.23

12

Kit, Trailing Arm Mount, LH

2202059

$213.00

12

Kit, Trailing Arm Mount, RH

2202598

$124.99

13

STRAP-AIRBOX TOP

5433150

$24.27

14

Mount, Console, Toe Clip, LH

5245457

Unavailable

14

Mount, Console, Toe Clip, RH

5245458

Unavailable

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

16

Support, Footrest, LH

5246310

$19.83

16

Support, Footrest, RH

5246311

$32.37

17

Footrest, LH

5245288

Unavailable

17

Footrest, RH

5247205

Unavailable

18

Guard, Adapter Drive

5221583

$11.59

19

PLUG, HOLE

7080416

$5.65

20

Rivet

7661130

$1.49

21

Bulkhead, Front

5132292

$115.99

22

Plug, Hole

7081076

$3.22
