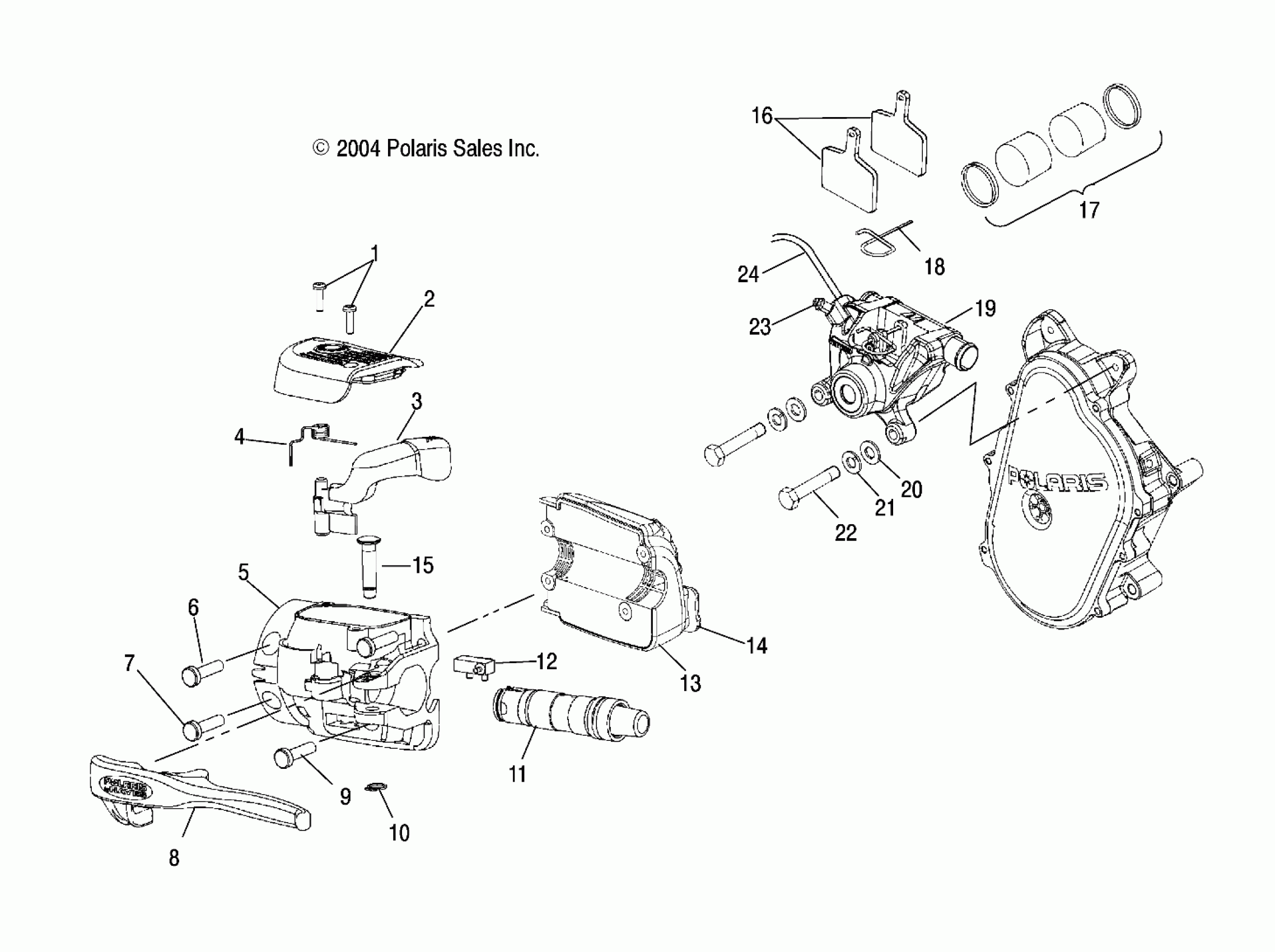

Polaris 600/700/800 RMK F/O - S05NK6ES BRAKE - S05NK6ES/A-S05NK7CS/A-S05NL7CS/A-S05NK8CS/A-S05NL8CS/A-S05NM8CS/A (4992789278B01) Diagram

#

Description
Price

1

Kit, Cover Screw

2201254

$19.99

2

Kit, Cover Assembly [Incl. 1]

2201255

$89.03

3

Kit, Park Lever and Spring [Incl. 4]

2201251

$44.51

4

Kit, Park Lever Spring

2201250

$24.27

5

Asm., Master Cylinder [Incl. 2,4,8,11,15]

2010219

$304.98

6

Screw

7517441

$2.39

7

Screw

7512078

$1.49

8

Kit, Lever, Notch/Pin/Ring

2201943

$52.60

9

Screw

7517566

$3.99

10

Kit, Snap Ring

2201945

$8.79

11

Kit, Cartridge Subassembly

2201944

Unavailable

12

Switch, Brake Light

4010157

Unavailable

13

Asm., Control, LH E/R

2010206

Unavailable

14

Button, Switch, HI/LO, LH Control

5433291

Unavailable

15

Kit, Pivot Pin, w/Snap Ring

2201946

$24.27

16

Kit, Brake Pad, Type 81

2202202

$134.99

17

Kit, Seal

2202204

$40.46

17

Kit, Piston/Seal

2202207

$93.08

18

Kit, Pin Retaining

2202206

$23.99

19

Kit, Asm., Brake Caliper [Incl. 16-18]

2202201

Unavailable

20

Washer

7556160

$3.99

21

Washer, Spring Lock

7552603

$1.49

22

Screw

7515534

$4.79

23

Kit, Bleeder Fitting

2202205

$36.41

24

Line, Brake

1910613

Unavailable
