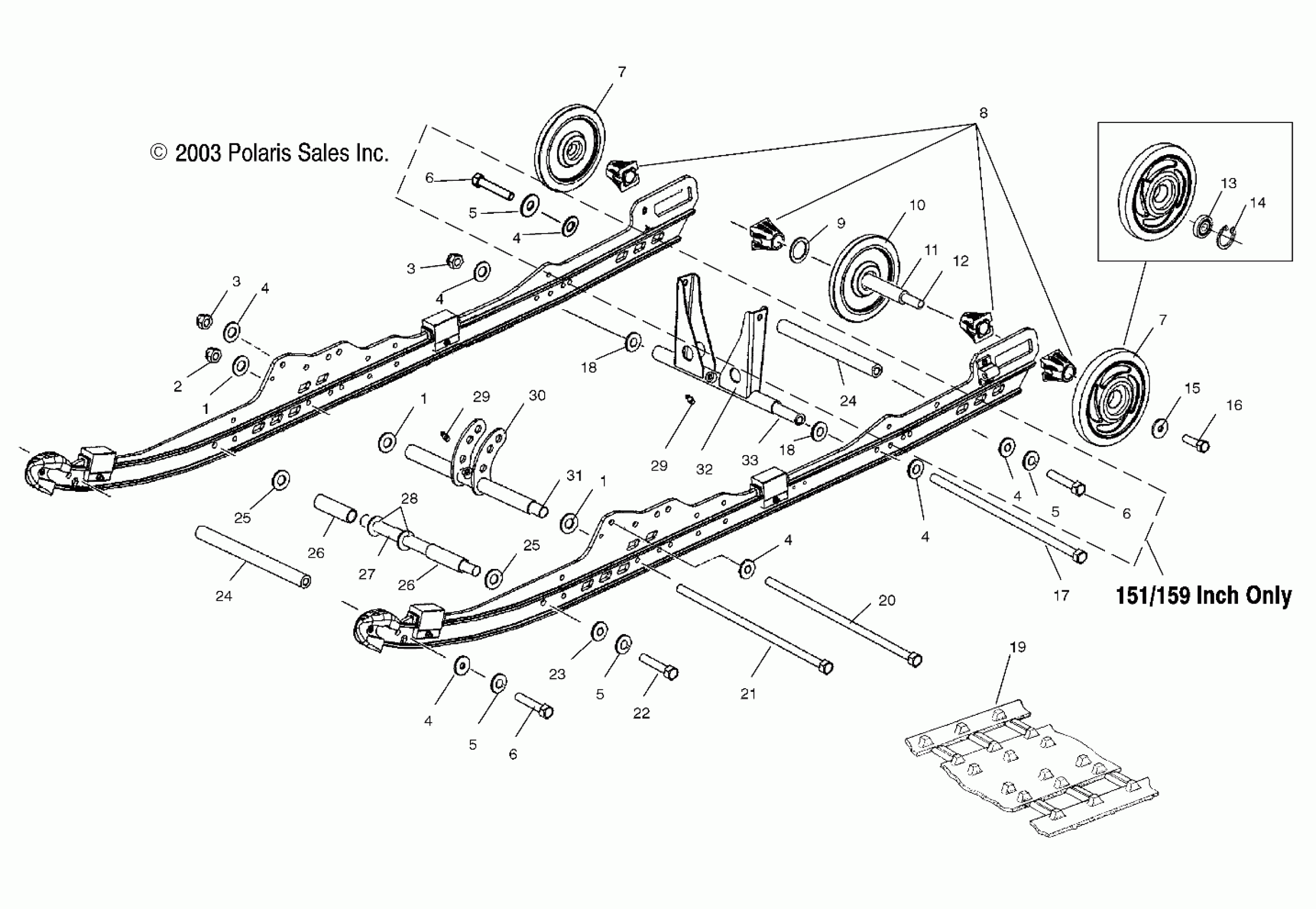

Polaris 600/700/800 RMK F/O - S04NK6ES SUSPENSION - S04NK6ES/A/B/C-S04NK7CS/A/B/C-S04NL7CS/A/B/C-S04NK8CS/A/B/C-S04NL8CS/A/B/C-S04NM8CS/A/B/C (4988398839B09) Diagram

#

Description
Price

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

2

Nut, Nylok

7547217

$3.99

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

4

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

5

Washer, Spring Lock [Qty 6 for 151/159 Inch]

7552603

$1.49

6

Screw [Qty 4 for 151/159 Inch]

7517247

$3.19

6

Screw [Qty 4 for 151/159 Inch]

7517247

$3.19

6

Screw [Qty 4 for 151/159 Inch]

7517247

$3.19

7

Asm., Wheel, Idler, Red [Incl. 13,14]

1590303-293

$48.56

7

Asm., Wheel, Idler, Scr. YL. [Incl. 13,14]

1590303-216

$32.15

7

Asm., Wheel, Idler, Red [Incl. 13,14]

1590303-293

$48.56

7

Asm., Wheel, Idler, Scr. YL. [Incl. 13,14]

1590303-216

$32.15

8

SPACER-IDLER

5432535

$11.99

9

BUSHING

7555918

$1.59

10

ASM., WHEEL

1594087

$72.84

11

SPACER-IDLER, LONG

5333285

$11.99

12

SHAFT, IDLER

5020744

$59.99

13

BEARING

3514384

$19.84

14

RING-RETAINING

7710444

$8.79

15

WASHER, BELLE

7556130

$6.39

16

BOLT

7517731

$1.49

17

SCREW

7517921

$23.99

18

WASHER, FLAT

7556242

$2.39

18

WASHER, FLAT

7556242

$2.39

19

Track 151 Inch

5412241

Unavailable

19

Track 144 Inch

5412242

$949.99

19

Track 159 Inch

5412185

Unavailable

20

SCREW

7517921

$23.99

21

Screw

7517996

Unavailable

22

Screw

7517857

$5.59

23

WASHER

7556042

Unavailable

24

Shaft [Qty 2 for 151/159 Inch]

5020868

Unavailable

24

Shaft [Qty 2 for 151/159 Inch]

5020868

Unavailable

25

WSHR-.813X.406X.105-Y

7555832

$2.39

25

WSHR-.813X.406X.105-Y

7555832

$2.39

26

Spacer, Shock Centering

5334062

$11.99

26

Spacer, Shock Centering

5334062

$11.99

27

SHAFT

5133188

$40.46

28

WASHER

7556210

$3.99

29

FITTING-LUBRICATION 1/4-28

7080424

$4.79

29

FITTING-LUBRICATION 1/4-28

7080424

$4.79

30

Arm, Pivot, Shock

1541635-067

$67.76

31

Tube

5334042

Unavailable

32

Arm, Pivot, Rear

1541832-067

$104.99

33

TUBE

5334162

$24.27
